PART: 2QM-R-RCGS-E - ROLLER COATER GLUE SPREADERS - 1, 2 SIDES - 24", 48", 63" WIDE
AMXmachine
Description

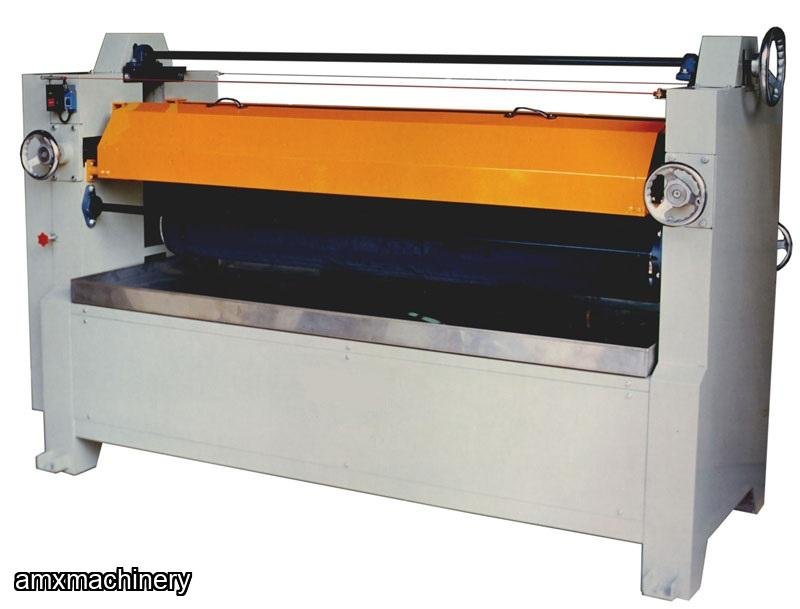

ROLLER COATER GLUE SPREADERS
PART: 2QM-R-.RCGS-1-24-1.75-E - GLUE SPREADER - 1 SIDE - 24” WIDE - 1.75” OPEN
PART: 2QM-R-RCGS-1-24-1.75-E - GLUE SPREADER - 2 SIDES - 24” WIDE - 1.75” OPEN
PART: 2QM-R-RCGS-1-48-1.75-E - GLUE SPREADER - 1 SIDE - 48” WIDE - 1.75” OPEN
PART: 2QM-R-RCGS-1-48-1.75-E - GLUE SPREADER - 2 SIDES - 48” WIDE - 1.75” OPEN
PART: 2QM-R-RCGS-1-63-1.75-E - GLUE SPREADER - 1 SIDE - 63” WIDE - 1.75” OPEN
PART: 2QM-R-RCGS-1-63-1.75-E - GLUE SPREADER - 2 SIDES - 63” WIDE - 1.75” OPEN
New with warranty
Photos & Features
Options:
Roll Guards (Hoods) for Operator Safety
Variable Speed Control (40-118 fpm)
6" Opening
Features:
• 1-sided Roller Coater (applies glue to 1 side [top side] of each panel) or 2- sided Roller Coater for 2-sided machine
• Working thickness: adjustable from 0 to 45mm (0 to 1.77"), adjustable via hand wheel
• Maximum material width: 630mm (24") or 1220mm (48”) wide or 1600mm (63”)
• Application rolls quantity: 1 or 2
• Application rolls material: SBR rubber, 60 durometer (Shore A)
• Application rolls diameter: 205mm (8") or 210mm (8.27”) for 48”, or 210mm (8.27”) for 63” wide
• Application rolls grooving: 20 grooves per inch
• Doctor rolls quantity: 1 or 2
• Doctor rolls material: Chrome-plated steel for 24” or NBR rubber, 98 durometer (Shore A) for 48” and 63” wide
• Doctor rolls diameter: 148mm (5.8") or 175mm (6.9”) for 48” and 63” wide
• Doctor rolls grooving: none (smooth rolls)
• Drive motor power: 1.5kw (2hp)
• Feed rate: fixed at 64fpm (optional: adjustable from 40 to 118 fpm)
• Includes emergency stop bars at front and back of machine
• Includes stainless steel waste glue drip pan
Note:
Electrical Requirements: 220v or 440v, 3-phase, 15 amps
The machine is designed to use water based PVA glue
For best glue for his application, your customer should consult his glue supplier (Franklin International, Wilsonart, etc.).
For countertops, we believe Wilsonart 3000 is quite popular
