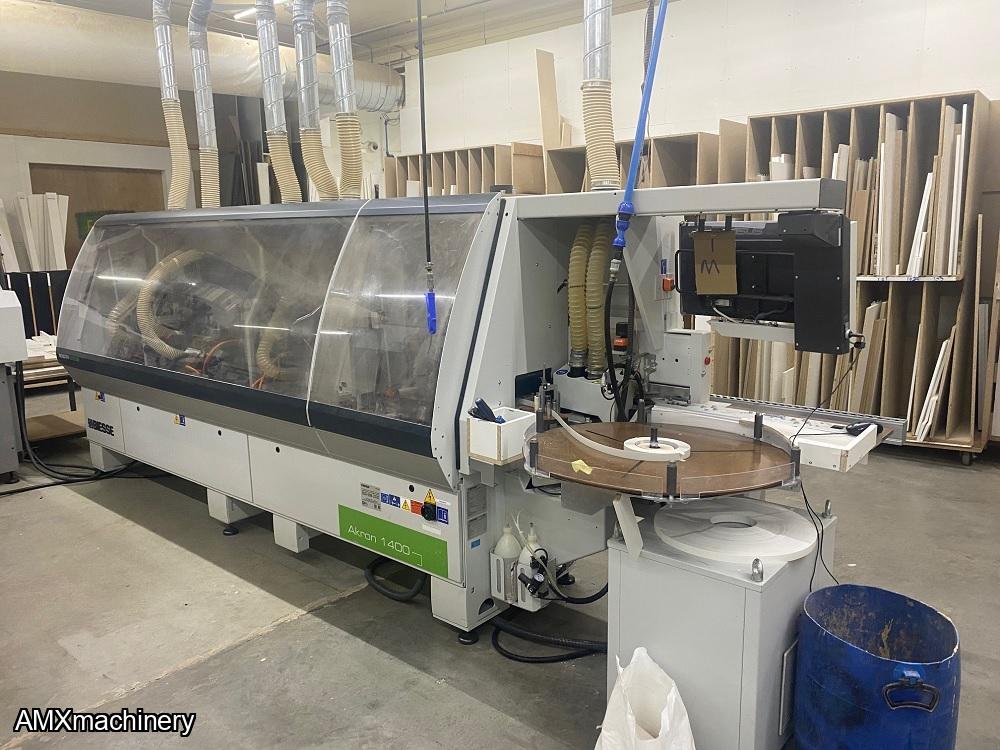

PART: 12527-E - AUTOMATIC EDGEBANDER - BIESSE AKRON 1435A
USED - VERY GOOD CONDITION
Year: 2018
CAPABILITIES
- One-sided edgebander with glue pot

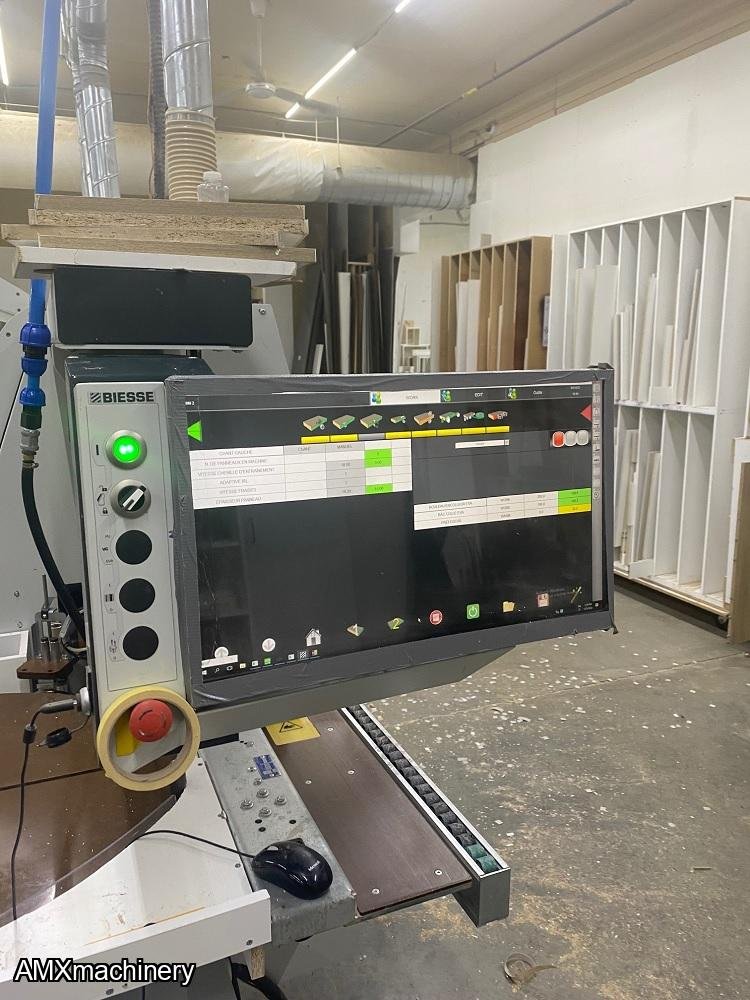

- CNC control and command system with TS10 digital controller, large touch screen LCD graphic display, WINDOWS CE operating system, USB port
- Chain drive and upper presser
- Group of pressure rollers
Work stations :
- Premilling
- Gluing unit with pellet pot

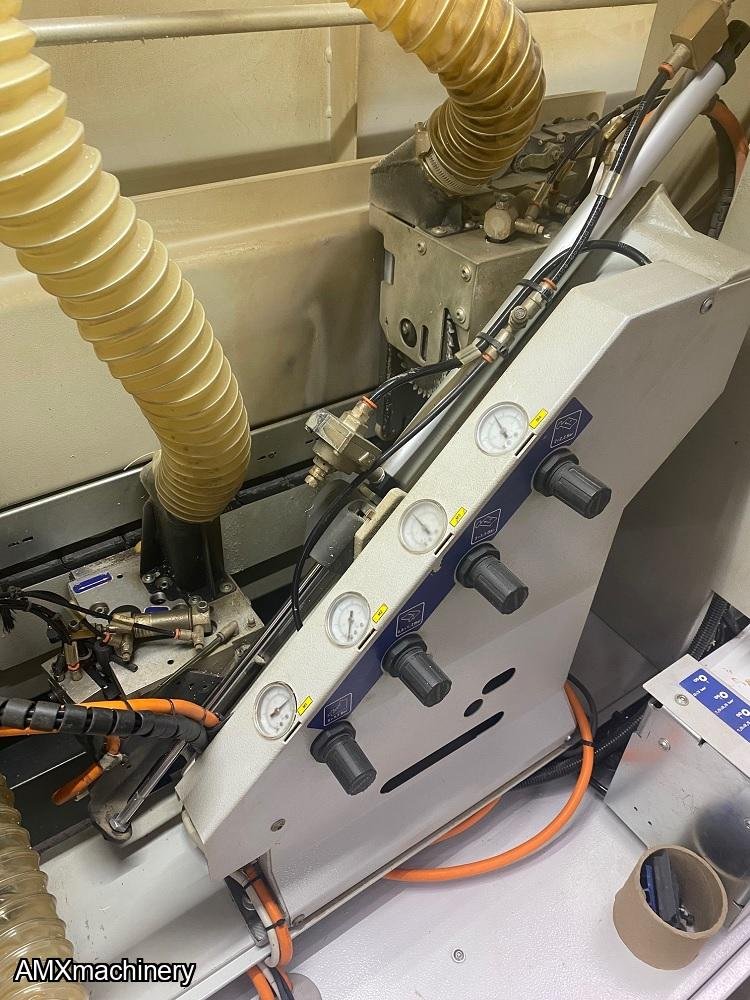

- Adjustable pneumatic pressure unit

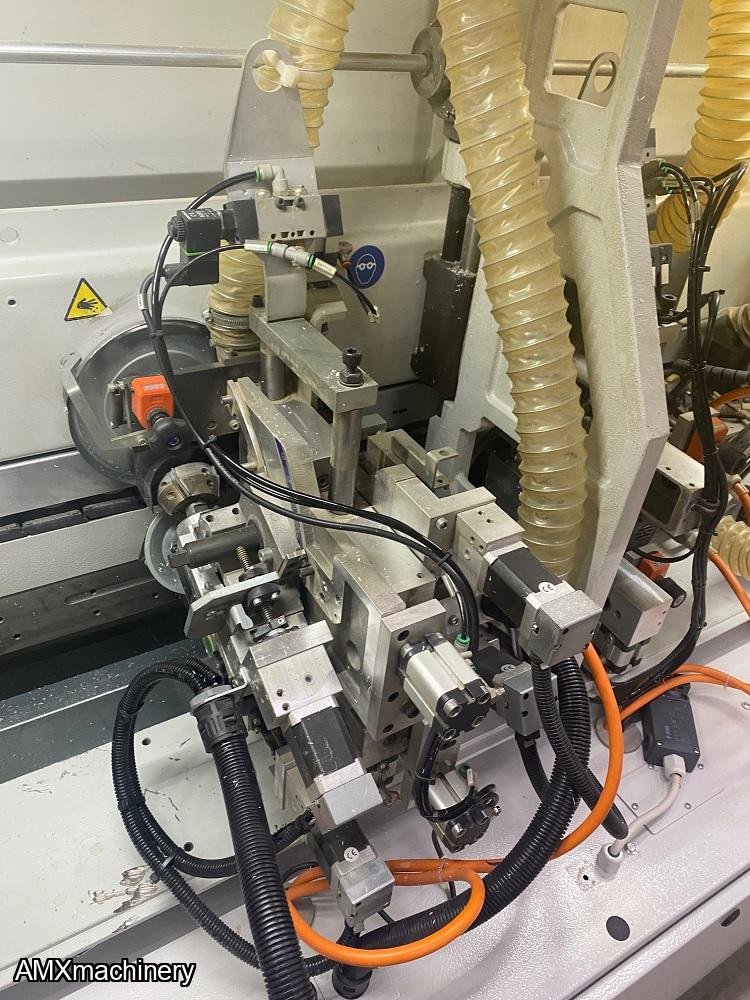

- End cutting unit 2 tilting saws 0-15 degrees for bevel cutting, motor 0.50Kw

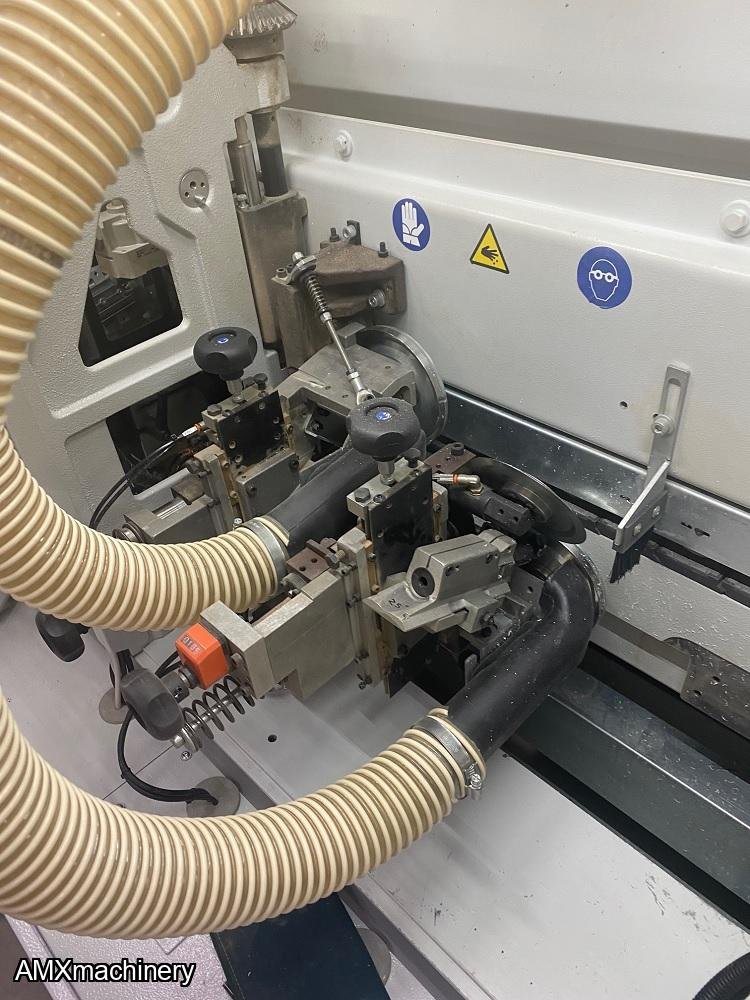

- Fine trimming top and bottom trimming unit, 0.65Kw motor
- Radius scraper unit for 3mm pvc finishing
- Polishing brush unit, 0.37Kw motor
Specifications:
- Minimum & maximum thickness of the part: 10 to 60mm
- Minimum width of the part: 85mm
- Minimum piece length: 140mm
- Tape thickness in roll: 0.4 to 3mm
- Thickness of the pre-cut wooden strip: up to 8mm x 45mm high
- Variable feed speed: up to 12m/min
- Edgebander length 16 feet and 6 inches
- Automatic start of the groups and motors foreseen in the program.
- 2nd pass direct selection key.
- Management of 8 digital axes
- Lists of programs with manual and/or automatic launch.
- Diagnosis of errors with codes and comments.
- Statistical production data.
- This device is mounted on an adjustable suspended control panel
