Description

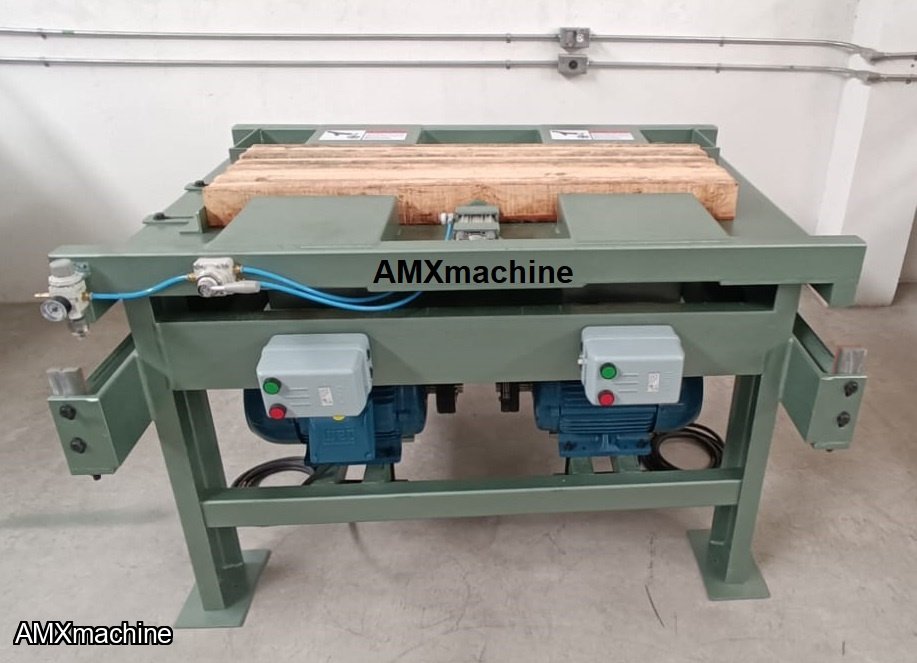

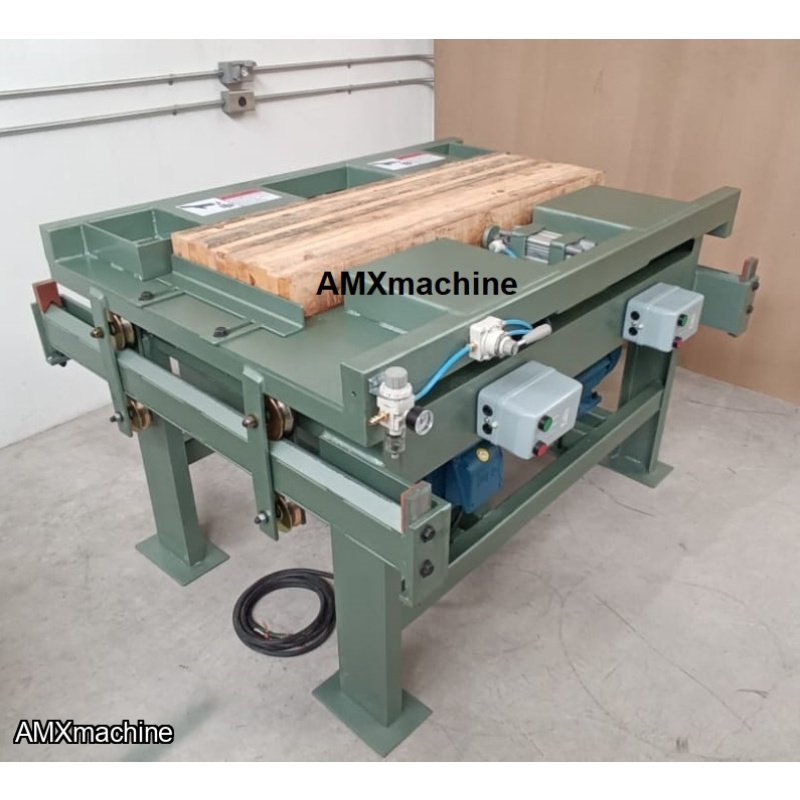

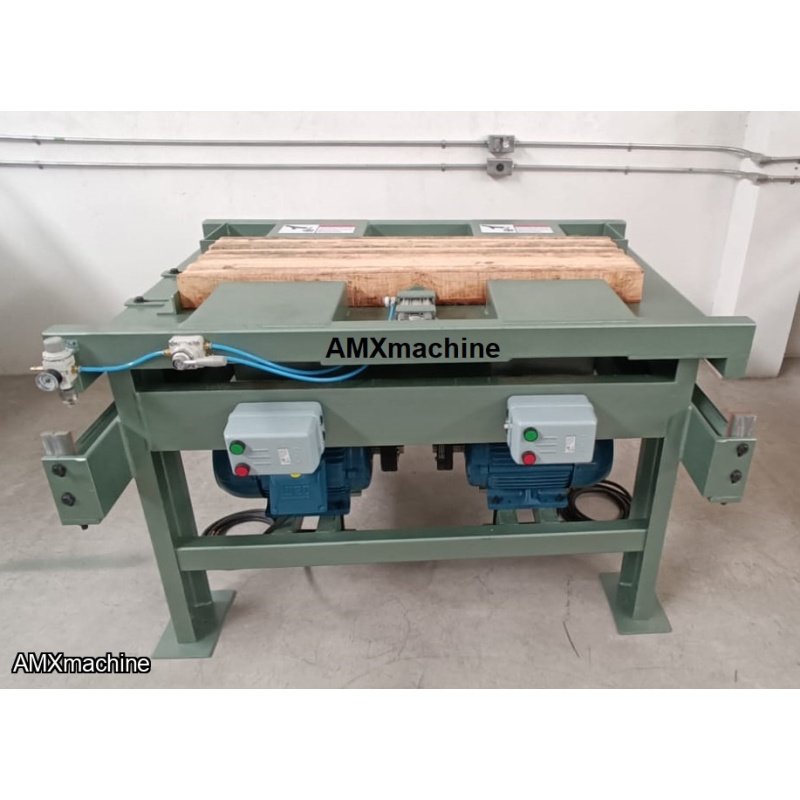

PART: 1AM-1250 - PALLET NOTCHER - DOUBLE HEAD - 9” LENGTH - HEAVY DUTY
New with warranty – 6-month warranty on manufacturing defects on mechanical parts only
2 Motors 10 HP, 220/440V, 3 phase - connected to 220V
2 On/Off Switch with magnetic starters
Maximum notcher size 9” long x 2-1/2” height x 1-5/8” depth
Each cutterhead with 4 HSS knives installed
Saw dust removal: 12.25” wide x 10.5” tall each opening in the back side
Saw dust removal: 2,300 CFM recommended, equivalent to a 3 HP dust collector for each opening
Products specifications are subject to change without notice
Video: https://vimeo.com/952661333
Payments & Returns
- Payment Methods
- Bank Wire Transfer
Post Message
Sign in to ask the seller a question.
AMXmachine
FRAME ASSEMBLY MACHINE - ALFA MACCHINE - MITRE-MITE VN4 + MP
PART:
AMX-10173 - FRAME ASSEMBLY MACHINE - ALFA MACCHINE - MITRE-MITE VN4 + MP
MEMORY PROGRAMMABLE
USED
- FAIR CONDITION
MADE
IN ITALY
TABLE SIZE: 11.75”
ANCHO X 22” ALTO
TABLE HEIGHT: 37”
MATERIAL THICKNESS:
0.197" MINIMO A 3.15" MAXIMO
MATERIAL WIDTH:
0.39" MINIMO A 3.94" MAXIMO
ELECTRONIC,
PNEUMATIC
ENERGY: 110V, 1
FASE, 60 HZ
ALFA MACHINNE –
MINIGRAF 4 ELECTRONICA – PROGRAMABLE DIGITAL SCREEN
MACHINE DIMENSIONS:
31” WIDTH X 2...
AMXmachine
PART: 2CA-DM77-E - DOWEL MILLING - 1/4" - 3/4" DIAMETER
PART: 2CA-DM77-E - DOWEL MILLING - 1/4" - 3/4" DIAMETERSelf-feeding and easily changeable cutters.Makes dowels from 6 MIM - 18 MIM (1/4" to ¾”)Dowels stock cut with spiral grooves for gluing.The DM-77 mills wooden dowels from square sticks.Powered by heavy-duty 1 HP motor and produces dowels at the rate of 23 to 27 feet per minute.Specially designed knives make sharpening easy.SPECIFICATIONS:
Diameter
Range: 1/4" ~ 3/4"Motor:
1 HP, 1 PH, 115VWorking
Speed: 24 ~ 28 FPMMinimum
Working Mate...
AMXmachine
PART: 12573 - PRODUCTION DRILLING MACHINE - RILESA - UNI-X 2200 MM
PART:
12573 - PRODUCTION DRILLING MACHINE - RILESA - UNI-X 2200 MM
USED
- VERY GOOD CONDITIONPLC
Control System with 15” Color TFT Touch-screen DisplayPneumatic
magazine with ergonomic and user-friendly accessEnd
Mounted Horizontal Drilling Groups: 2 @ 1.1kW = 1.5HP 3-5000RPMRear
Mounted Horizontal Drilling Groups: 4 @ 1.1kW = 1.5HP 4000RPMTop
Mounted Vertical Drilling Groups: 6 @ 1.1kW = 1.5HP 4000RPMPneumatic
side movement of drill groups for copy function of holesBackstop
clamp ...
AMXmachine
PART: 1AM-3011-E – ROLLER STAND - INFEED - OUTFEED - 120 CM (47”) LENGTH - WITH GUIDE AND STOP
PART:
1AM-3011-E – ROLLER STAND - INFEED - OUTFEED - 120 CM (47”) LENGTH - WITH GUIDE
AND STOPSIDE
ROLLER TABLES Use
with saws, planers, edgebanders, jointers, etc.New
with warranty120
cm (47”) length x 39 cm (15.35”) widthVariable
height 83 - 87 cm (32.5 - 34.25”)Support
large and heavy wood pieces and wood panelsAdjustable
heigh to pair with your current machines7 galvanized steel ball bearing rollers-
1 back guide to avoid material to fall-
1 block stop to make same size ...
