ID: 1175
Open
Description

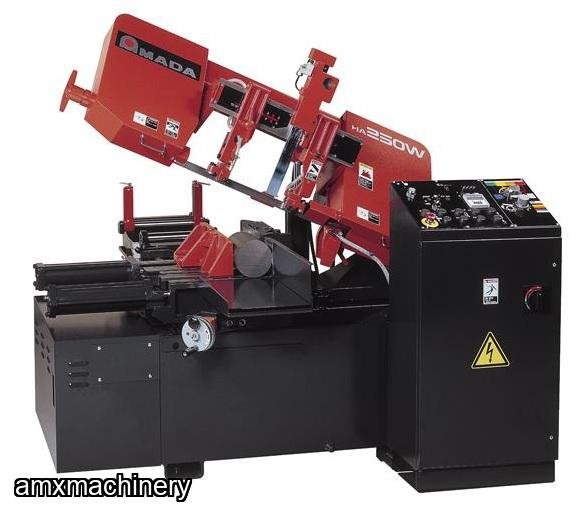

PARTE: HA250W – SIERRA CINTA – AUTOMATICA – CAPACIDAD 10” - AMADA
NUEVA CON GARANTIA
Machine Specifications
Cutting Capacity
Round (Diameter) 1.18"-10"
Rectangle (W x H) 11.8" x 10"
Work Load Capacity 3,307 lbs.
Material Index Stroke 15.75" (Maximum 9 Times Index)
Index Length 0.394" x 141.7"
Saw Blade Dimensions (L x T x W) 11'6" x 0.042" x 1-1/4"
Blade Speed 89-295 ft./min, 60 Hz, Stepless
Saw Blade Motor 5 HP
Hydraulic Pump Motor 1 HP
Cutting Fluid Pump Motor 0.25 HP
Voltage Required
AC220V±10%, 3 PH, 60 Hz
Or AC440V, 3PH, 60Hz
Machine Dimensions
Head Up Position 76.5" x 93.1" x 69.8" (W x L x H)
Head Down Position 76.5" x 93.1" x 50.6" (W x L x H)
Table Height 27.6"
Machine Weight 3,307 lbs.
HA250W - Model - HA250W with Machine Standard Features
Blade - SVGLB 1 1/4" x 0.042" x 4/6 TPI x 11´6" (start-up blade)
OPTIONAL ITEMS
6' Dead Roller Table Free Standing
10´ Dead Roller Table free standing
Vertical clamps
Vise Pressure Control
Extended warranty - additional year in parts
