ID: 2572 Open

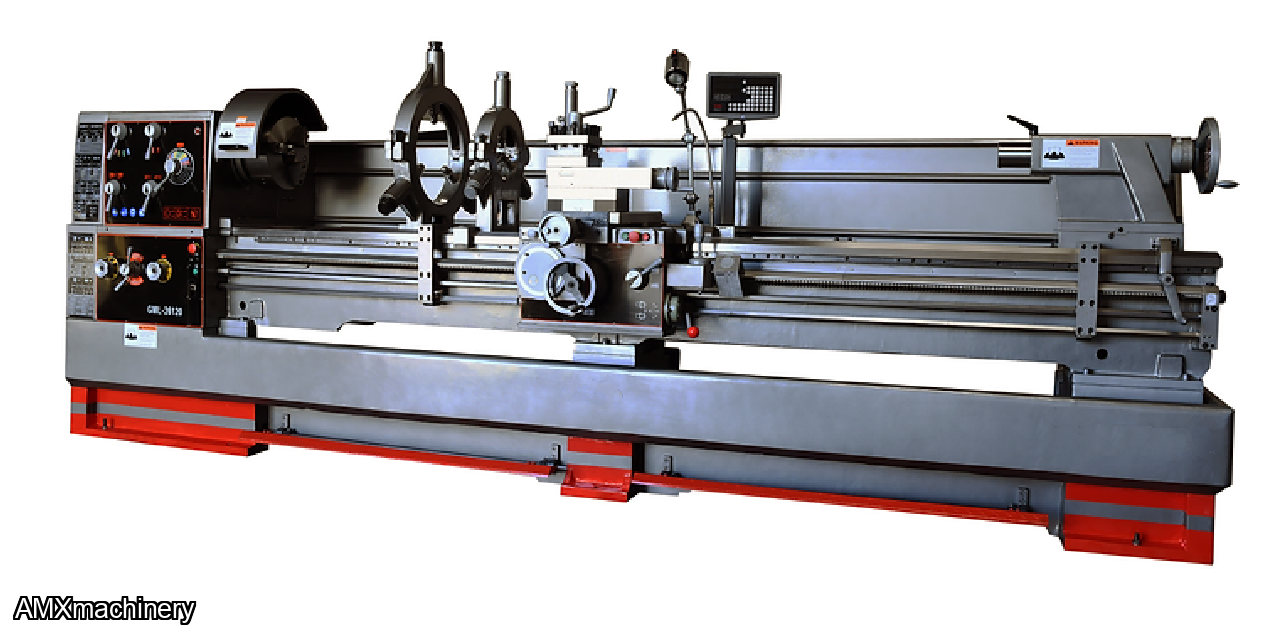

TORNO 32 x 80''

TORNO 32 x 80''

AMXmachine1

Contact Seller
Description
TORNO 32 x 80''                      PARTE: 2GM-GML-3280


Heavy Duty Precision Gap Bed Lathe 32” x 80” 4-1/8” bore, 15HP Motor.

  • ISO 9001 certified
  • Large spindle bore 4-1/8”
  • 4-way rapid traverse on Longitudinal and cross ways
  • All dual inch/metric dials.
  • solid cast iron machine base
  • Heavy Duty main motor 15 HP
  • 12 spindle speeds from 25-1,600 rpm
  • 54 kinds of inch threads and metric threads
  • Threading and feeding rate change by levers
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • Tools box with leveling pads

Max. swing over bed

32”

Max. length of workpiece

80”

Max. swing over cross slide

22-7/16”

Max. Swing in gap

40-1/2”

Width of Bed

                                    16”

Effective length in gap to spindle

                                      10”

Effective length in gap to chuck jaws

                                      7”

Spindle bore

                                 4-1/8”  , D1-8

Taper of spindle center

         MT#5 with1:20 reducing sleeve

Spindle speeds

                25-1,600 rpm / 12 steps

Longitudinal feeds

              0.0016-0.055 IPR, 60 kinds

Cross feeds

              0.0008-0.027 IPR, 60 kinds

Inch threads

              80-7/16”TPI, 54kinds

Metric threads

                  0.45-120 mm , 54 kinds

Module threads

                 0.25-60 mm, 46 kinds

Diameter pitch threads

                  60-0.25 DP , 42 kinds

Max. travel of top slide

                             9-1/8”

Max. travel of cross slide

                            16-1/2”

Longitudinal rapid traverse

                       18 ft / min.

Cross rapid traverse

                        8 ft / min.

Diameter of tailstock quill

                              3-1/2”

Max. travel of tailstock quill

                              6”

Taper of tailstock quill center

                             M.T. # 5

Max. weight of workpiece

                            2,000 LBS

4-way tool post size

                            1” x 1”

Longitudinal leadscrew diameter / pitch

         Diameter:   3”               Pitch: 2 TPI

Main Motor

15 HP, 220V/40A / 440V/20A, 3 phase, prewired on 220V

Rapid traverse motor

1/3 HP, 220V/440V, 3 phase, prewired on 220V

Coolant pump motor

1/8 HP,220V/440V, 3 phase, prewired on 220V

Machine weight, approx.

      9,350 LBS

Overall dimensions, LxWxH

   146” x 48” x 67”



  • Free SINO DRO, installed
  • Free Taper turning attachment, , installed
  • 12” 3-jaw chuck with top reversible jaws
  • 16” 4-jaw chuck
  • 20” Face plate
  • 10” drive plate
  • ¾”-7-1/2” steady rest with roller jaws
  • 1”-5” follow rest
  • Removable gap
  • 4-way tools post
  • Chuck guard with safety shut off
  • Foot brake
  • Halogen Work light
  • coolant system
  • Full length rear splash
  • (2) dead centers and (1) reducing sleeve
  • Thread chasing dial
  • Tool box and leveling pads
