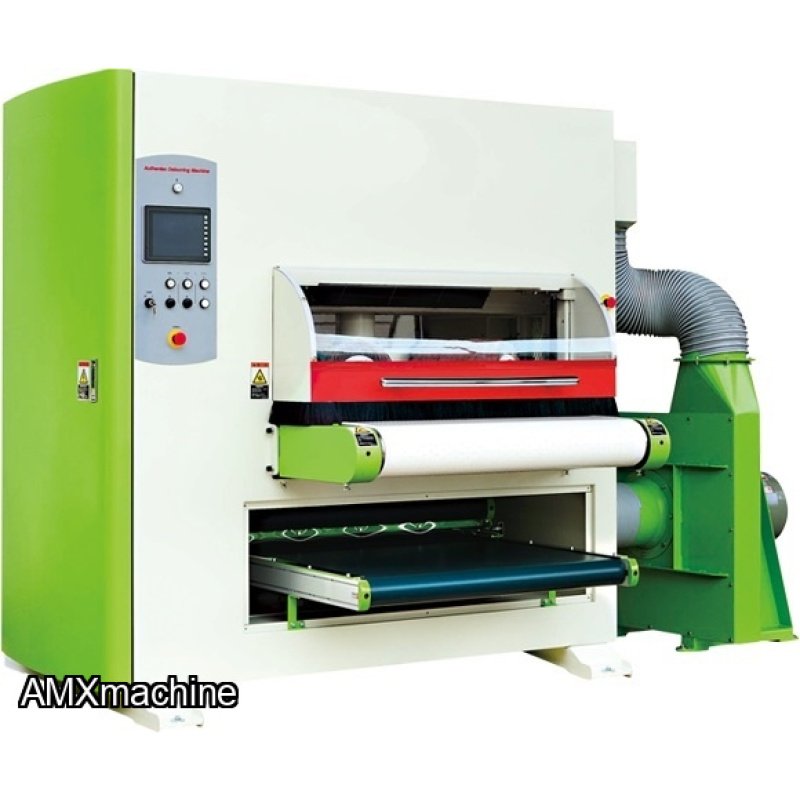

PART: 3AU-DEBU1000 – METAL - BRUSH SANDER – CAPACITY 1000 MM WIDTH

PART: 3AU-DEBU1000 – METAL - BRUSH SANDER – CAPACITY 1000 MM WIDTH

New with warranty

Round Chamfering Machine produces a surface so smooth that a nylon stocking is not snagged. AuDeBu1000 is a deburring machine specializing in round chamfering and capable of simultaneous treatment of large quantities of small-size work and medium-size work up to 1,000mm wide. Round chamfering of product edges has become the standard in sheet-metal processing. As the demand for round chamfering increases, we can meet that demand with the highest quality. We also provide a clean deburring station that is safe and comfortable.

Quality = Design

Remodeling machines with fundamental design problems will never make them better! You’ve seen many deburring machines that are the primary cause of dust inside factories, haven’t you? The redesigning concepts for our Sheet-Metal Deburring Machine AuDeBu were born from such lessons of the past. Seeking the ultimate deburring machine is the mission for AuDeBu through our design concept, “Simple is best.”

A drive system not troubled by dust!

Dust created from the deburring process causes serious problems for the intricate gears of the machine, such as extreme abrasion on gears, seizing of the moving parts, and negative affects on the air pressure unit and sensor. A new configuration was adopted that solved all these problems.

Efficient Six Brushes

A six-brush structure is installed in AuDeBu to increase productivity. This allows ideal deburring without excessive load pressure on the product.

Thickness Measurement System - TMS

The TMS measures the thickness of the plate for round chamfering, eliminates the inputting process and prevents careless mistakes from occurring. The board thickness is measured by laser so the adjustment of the brush position is fully automatic. As a result, the development of a fully automated line is now possible.

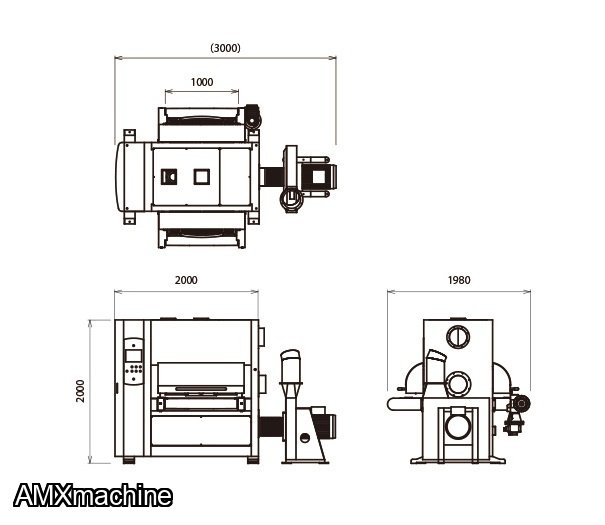

Technical data

Width of the machine: 2000mm

Depth of the machine:    2110mm

Heights of the machine: 2000mm

Weight of the machine: 1500kg

Heights of working table: 921mm

Maximum height of the work: 20mm

Maximum width of the work/th>: 1000mm

Brushes: 6

Brush rotation speed:    400〜1200rpm

Brush frame rotation speed: 5〜16rpm

Belt conveyor speed: 0.3〜12m/min

Dust suction opening: φ250mm

Exhaust blower opening: φ250mm

Main power: 21.4kW

Supply voltage: AC 3φ200V 50/60Hz
