PART: 12545 - SPRAY LINE UV - SUPERFICI MINI PLUS

PART: 12545 - SPRAY LINE UV - SUPERFICI MINI PLUS

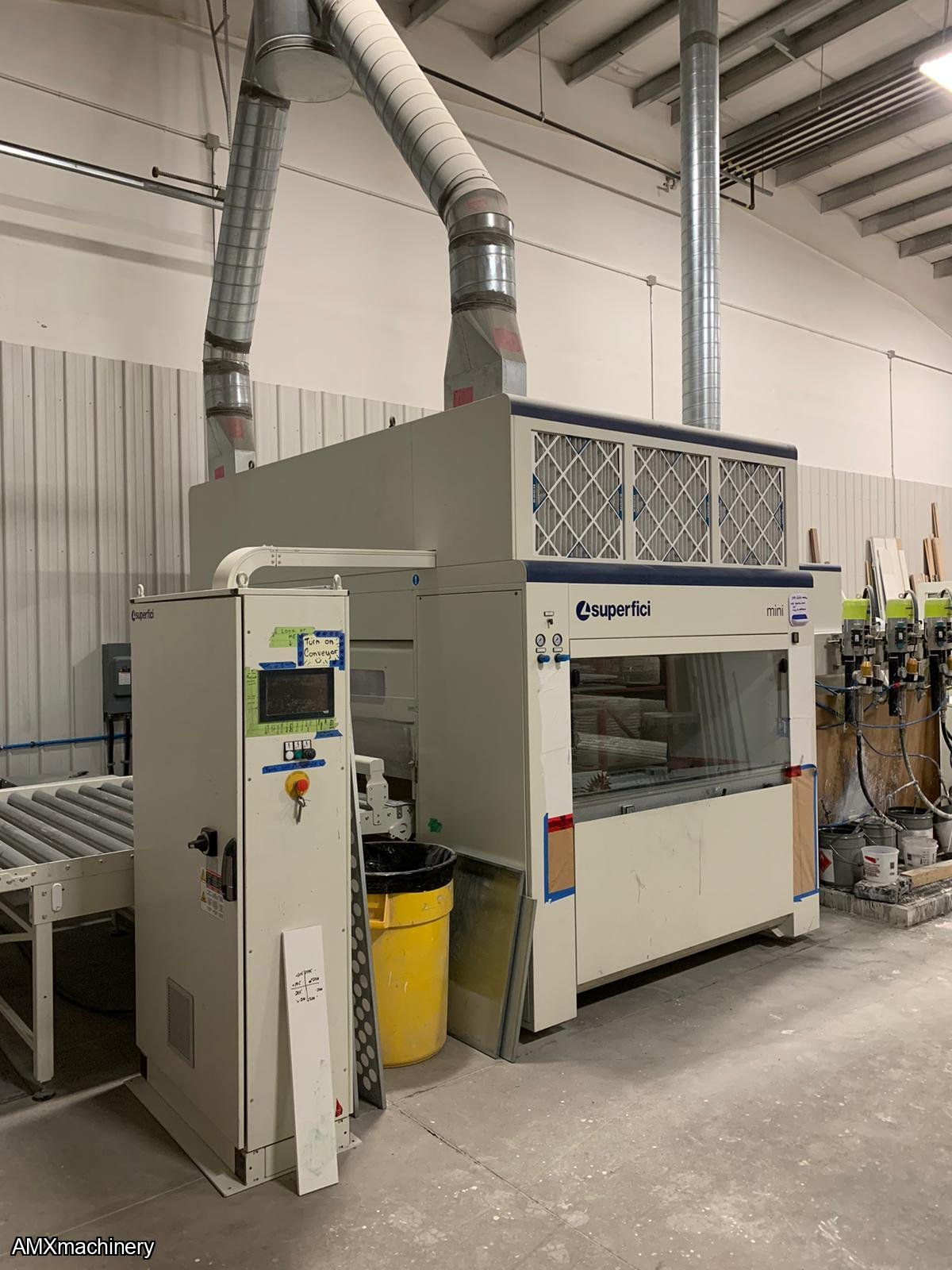

Spray Line, Dryer, Pumps and Guns and Infeed Table complete

USED - VERY GOOD CONDITION

Passline Height: 900 mm

Operating side: RH, as viewed from inlet of line, LH available as a special order.

Workpiece Dimensions - Approx:

Min. - max. length: 300 mm - 4880 mm =  12" - 16'

Min. - max. width: 25 mm - 1300 mm = 1" - 51”

Min. - max. thickness: 3 mm - 90 mm = 1/8" - 3-1/2"

Max. weight: 3 kg per sq. ft

Speeds:

Mechanical speed: 1-3 m/min

Avg. production speed: 2 m/min

Connections:

Voltage: 480 V/ 3 Ph + Ground / 60 Hz

Standard distribution system: TN-S

Compressed air: 6 bars

Thermal connection - NOT required for sprayer – if optional dryer is purchased, the heating coil is electric - With paper protective system for belt conveyor.

CONVEYING SYSTEM AND PAPER PROTECTION DEVICE

In-feed and out-feed driven roller conveyor system.

Central belt conveyor with protective paper device.

The paper function is to absorb the overspray, thus protecting the conveyor belt underneath.

The machine is equipped with a paper roll unwinding system at the in-feed and rewinding system at the out-feed.

GENERAL DESCRIPTION

The automatic through-feed spraying machine mod. MINI achieves the advantages of automatic spraying process with a limited investment.

SPRAYING ARM AND LACQUER CIRCUITS

Lacquer application system consisting of a reciprocator with single arm driven by brushless motor and sliding on a high precision linear guide.

Accurate motion guaranteed by high precision reducer.

The arm is equipped with guns holder supporting up to max four guns, with two lacquer circuits.

To achieve a higher level of flexibility, the MINI features, as standard, the QUICK-CHANGE system for the guns holder.

Approx sizes:

Mini pluis sprayer is 12'

Dryer is 25'

Infeed table 8'

Approx 45 feet long
