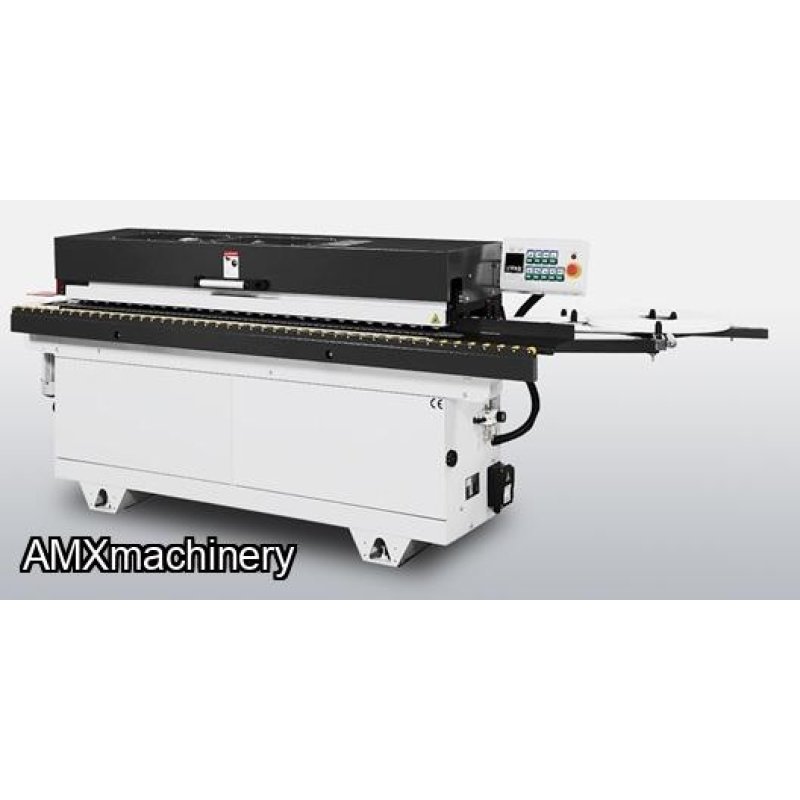

PART: 2CK-MX340M – AUTOMATIC EDGEBANDER
NEW WITH WARRANTY
Compact design with best-in-class edgebanding result.
The MX340M Automatic Edgebander is an entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX340M can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
- Compact design makes it the ideal edgebanding solution for small workshops.
- Precise adjustments for optimum edge quality.
- Chain feed system ensures consistent feeding of material for consistent results.
- Available in 230V 1 or 3 phase.
Key Advantages
- PLC control system with LED display and keypad.
- Workpiece is fed by chain.
- Edge coil support plate: Ø 800 mm (31.5″) for PVC/ABS.
- Automatic edge feeding with a thickness capacity of 0.4-3 mm.
- Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
- 2 kg (2.64 lb) Teflon-coated hot-melt glue pot.
- Spring-loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber).
- Heavy-duty pressure beam with extendable workpiece support.
- Heated infeed fence for pre-heating the panel for optimum glue penetration.
- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness.
|
DESCRIPTION |
INCH |
METRIC |
|
Feeding speed |
23 FPM |
7 m/min. |
|
Panel thickness |
0.472~1.77″ |
12~45 mm |
|
Edge thickness |
0.0158″~0.118″ |
0.4 ~ 3 mm |
|
Min. panel width |
3 ½” |
90 mm |
|
Min. panel legnth |
3 ½” |
90mm |
|
Working table height |
33.5″ |
850 mm |
|
Dust collection outlet dia. |
2 x 4″ = 800 CFM |
2 x 100 mm = 800 CFM |
|
Total connected power |
5 HP |
3.8 KW |
|
Air |
7.06 CFM / 85 - 100 PSI |
200 liters/min / 6 – 7 kg/cm2 |
|
Max. machine dimensions (LxWXH) |
115″ x 47″ x 48″ |
2921 x 1194 x 1220mm |
|
Machine weight |
968 lbs. |
440 kgs. |
|
Shipping dimensions (LxWxH) |
89″ x 29″ x 50″ |
2261 x 737 x 1270mm |
|
Shipping weight |
1115 lbs. |
507 kgs. |
|
Electrical requirements |
230/1/60 = 26 amps |
230/3/60 = 16 amps |
Note: 3 mm tooling is not available for the M series edgebanders.
Start-Up & Training:
- Available on request, normal service rates apply.
- The machine must be in place, cleaned, and connected to the electrical/pneumatics with the necessary dust collection hooked up prior to the Technician's arrival.
Note: Tooling and/or other items necessary to operate/test the machine(s) must also be available on startup.
