ID: 26 Open

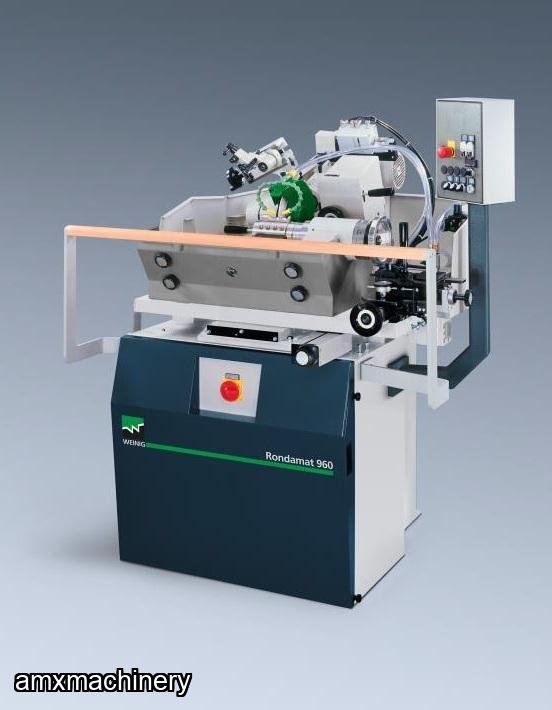

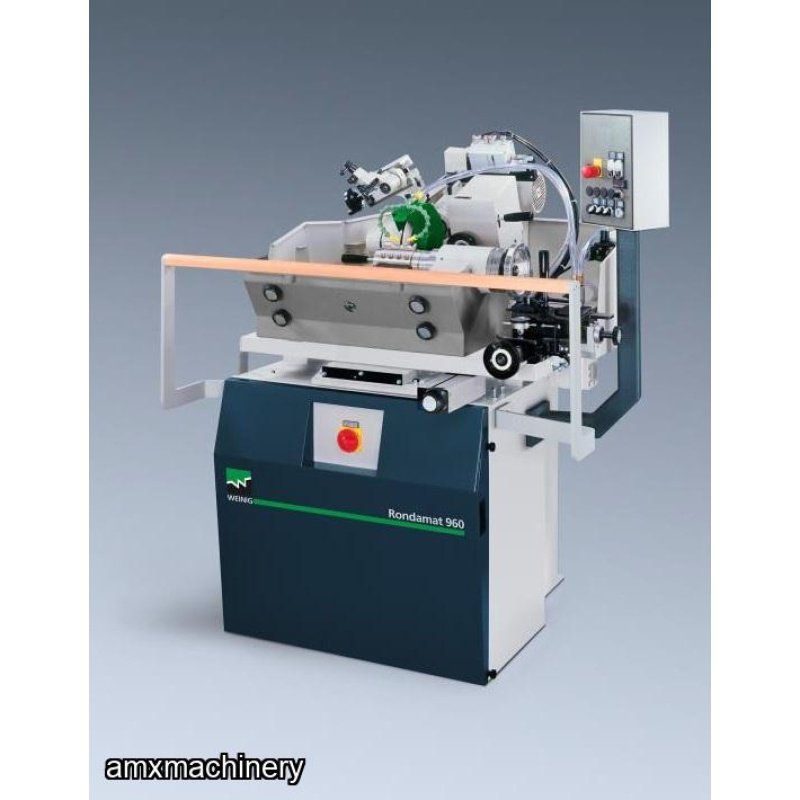

PERFILADORA AFILADORA DE CUCHILLAS WEINIG

PERFILADORA AFILADORA DE CUCHILLAS WEINIG

AMXmachine

Contact Seller
Description

PARTE # 12WG-R-960 - PERFILADORA / AFILADORA DE CUCHILLAS

Perfiladora/afiladora de cuchillas de alta precisión para:

El afilado y la fabricación de cuchillas perfiladas a partir de una cuchilla en bruto, de acuerdo con una plantilla.

El reafilado de cuchillas rectas de cepillado en el cabezal portacuchillas.

El afilado de cuchillas rectas de cepillado en el cabezal porta-cuchillas es posible, sobresaliendo las mismas en su medida normal.

Diámetro de la muela mín./máx. 150 mm / 225 mm

Ancho de la muela (Cerámica,Borazón,Diamante) 2-3-4-10 mm

Orificio de la muela: 60 mm

Avance de la muela: 1,1 KW (1,5 CV)

Velocidad de giro de la muela: 4 velocidades: 1700-2000- 2400-3000 r.p.m.

Afilado del ángulo de desahogo:

- radial, en el reverso de la cuchilla: 10 - 30 grados

- lateral, en funcionamiento manual: 0 - 20 grados

- cabezales porta-cuchillas para cuchillas rectas: 60 grados

La refrigeración desde arriba mediante tubos flexibles con articulaciones de plástico, y desde abajo a través del apoyo de las cuchillas, inmediatamente en el punto de afilado, impide un sobrecalentamiento de las cuchillas, también en caso de un desbaste importante de material.

La dosificación del líquido refrigerante se efectúa mediante un distribuidor central con válvulas esféricas de acero fino.

Tanque de refrigerante: aprox. 50 litros

Producto refrigerante: 5 litros

Motor para bomba de refrigerante: 210 vatios


Payments & Returns
Payment Methods
Visa/Mastercard/American Express
