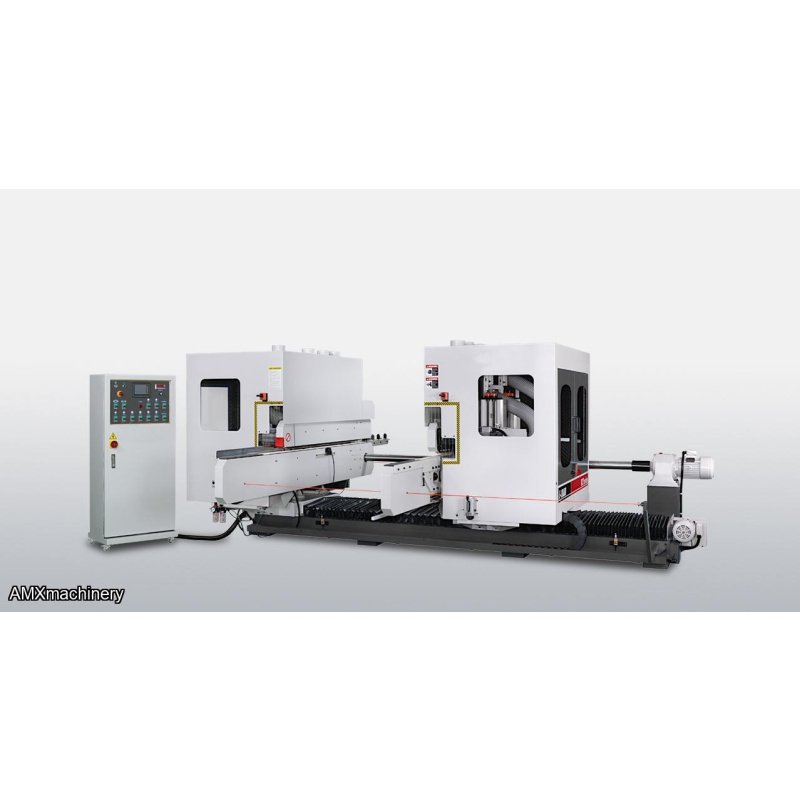

PART: 2CK-ECT SERIES - DOUBLE END TENONER - 8 SPINDLES - 141” WIDE

PART: 2CK-ECT SERIES - DOUBLE END TENONER - 8 SPINDLES - 141” WIDE

They are available with up to (8) spindles (4-per side) and come in widths from 51” to 141”.

These double end tenoners are ideal for door, furniture, & window production and more.

The ECT series can be customized for your specific needs with a wide range of processing units and features.

The ECT are available as a stand-alone solution or can be purchased in a line for processing all four sides of a workpiece automatically.

• Configured with (6) or (8) spindles depending on your production needs
• Industrial cast iron machine base for superior vibration damping resulting in optimum cut quality and machine life
• Saw and moulding units can be orders with or without tilting
• Working widths from 51” to 141”
• Motorized width adjustment
• Precision chain track assemblies with manually retractable stop dogs to ensure perfect squareness
• Variable feed speed
• Safety equipment includes enclosed cabinet with safety interlocks on access doors
• Automatic braking of saw blades and moulding heads
• Digital readout for thickness adjustment
• Feed conveyor is equipped with needle bearings to increase wear-resistance. Choice of rubber or phenolic surfaces
• The movable side of the double end tenoner is mounted on precision linear guideways to ensure accuracy and smooth movement
• Width is set through the tough screen combined with a PLC to ensure high positioning accuracy
• Mechanical digital readouts for accurate positioning of each working unit
• Optional HSK and quick set tooling
