ID: 2620
Open
Description

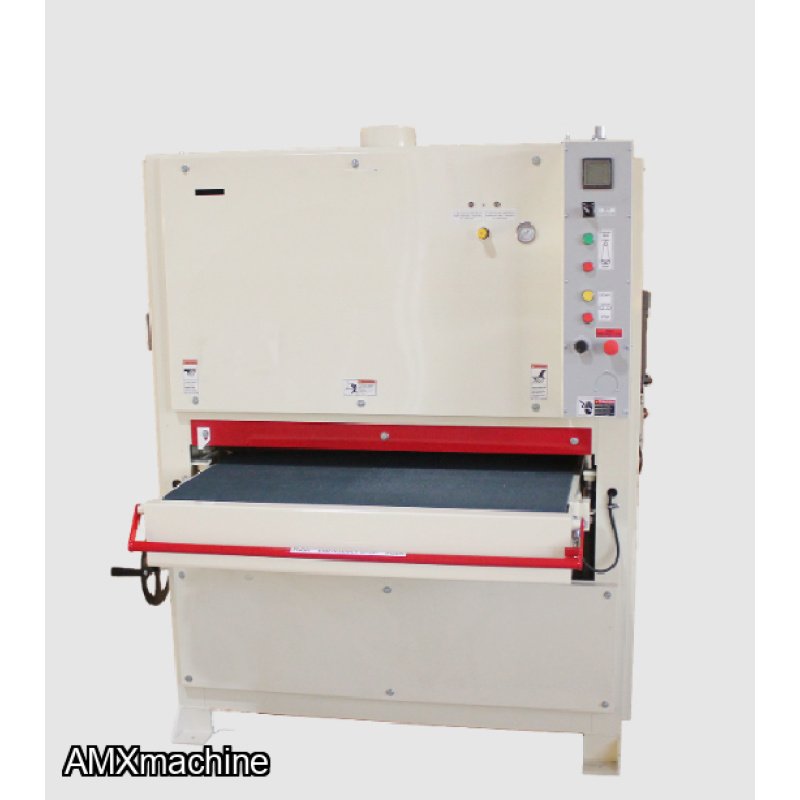

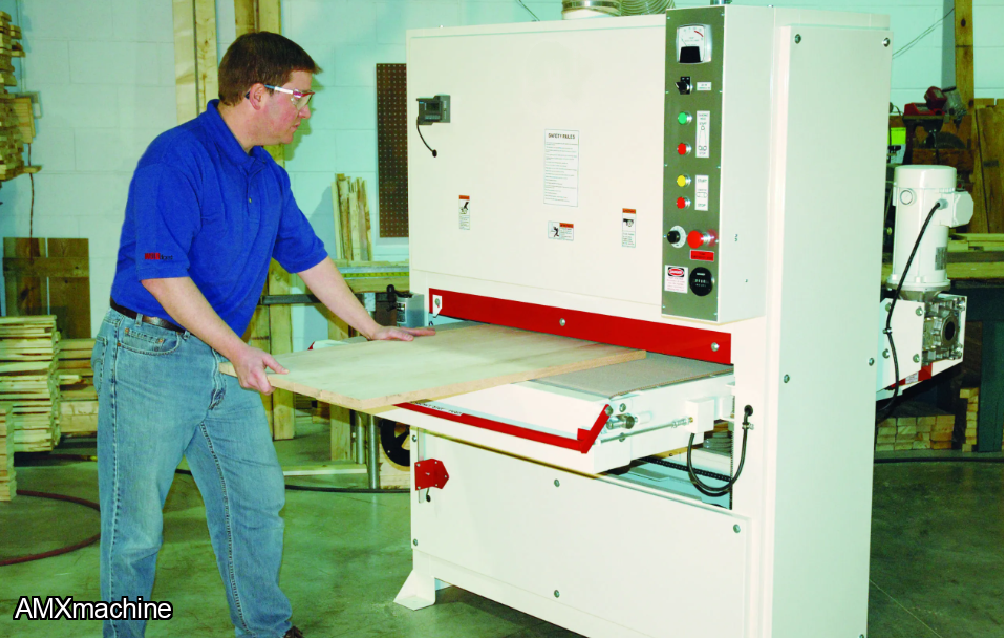

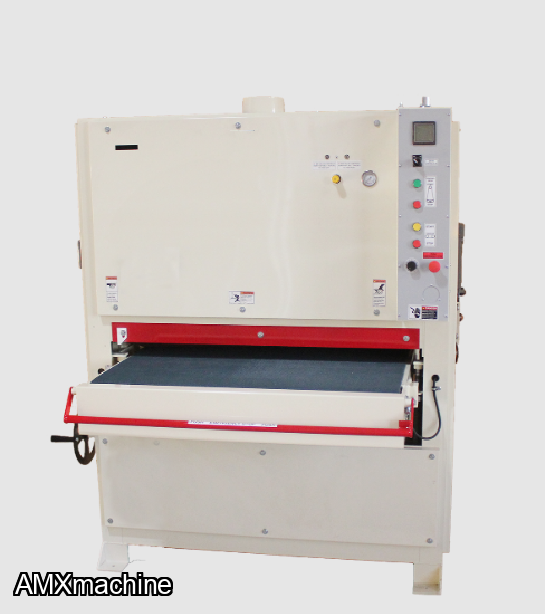

PARTE: 2SS- WBS4375101 - SANDER 43" - WIDE BELT - 1 BAND
Offering woodworkers a maximum sanding width 43″, and available in single or three phase power, this American Made Wide Belt Sander will likely outlive you.
Main Motor Options
- 10 Hp, Single Phase (1~), 220 Volt
- 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt
- 460 Volt, 3 Phase (3~), 20 Hp
The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.
Standard Equipment
- Photo electric belt tracking.
- Pneumatic belt tension.
- 2 ½” graphite covered felt pad and adjustable platen.
- 2 rubber-covered pinch rollers 2 ½” OD.
- 2 machined idler rollers 4 ¼” OD with 1″ bearings.
- Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing.
- Conveyor table set on four 1″ acme thread jackscrews.
- 2 height adjustment indicators.
- 6″ internal dust chute.
- 5 emergency stops.
- 3 year warranty.
