ID: 2565 Open

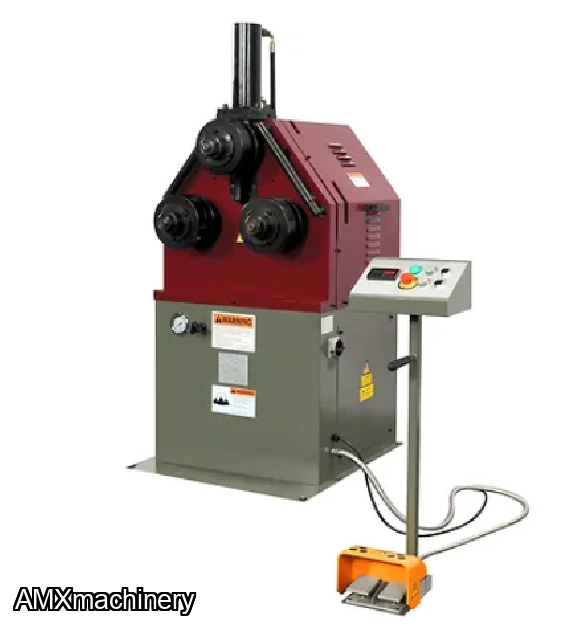

DOBLADORA DE TUBO HIDRAULICA
DOBLADORA DE TUBO HIDRAULICA
DOBLADORA DE TUBO HIDRAULICA

DOBLADORA DE TUBO HIDRAULICA

AMXmachine1

Contact Seller
Description
DOBLADORA DE TUBO HIDRAULICA                    PARTE: 2GM-PRB-55H-1PH


  • ISO 9001 certified

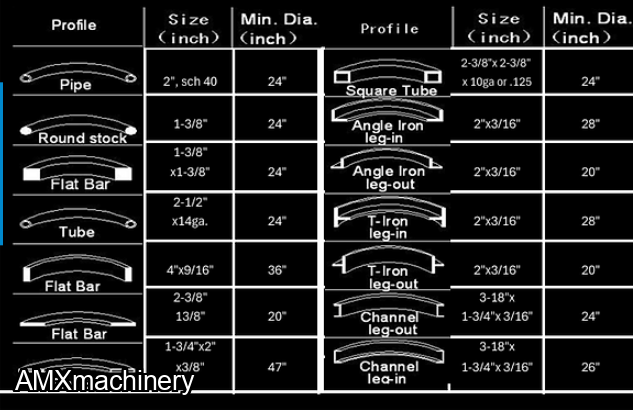

  • 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
  • Easy to operate in two positions; vertically and horizontally on its back
  • DRO -Digitally displays your exact position and ensures repeatability
  • Heavy Duty 3HP AC main motor
  • 1 - Top forming roll (hydraulic driven)
  • 2 - Driven bottom rolls
  • Robust, all steel and welded framework
  • Quiet, compact, hydraulic system that ensures precision and improves productivity
  • Adjustable pressure control valve
  • Equipped with 1-set of universal forming rolls suitable for many applications except pipes &  round tubes (need special dies)
  • Digital Readout (ensures repeatability and digitally displays your exact position)
  • Left and right guide rollers (easily adjustable)
  • Foot pedal (controls forward and reverse)
  • Digital Readout (digital display)
  • 4 - metal support legs for horizontal position
Roll AdjustmentHydraulic Driven
Dia. of roller7.5"
Dia. of roller shaft2"
Roller speed16 RPM
Main Motor

4 HP 220VAC - Single Ph.

25-30 amp



Dimensions40" x 35" x 65"
Weight1,120 LBS

Oil Tank Capacity

(only fill up 90%)

7 Gal.
Recommended Hydraulic Oil

Texaco-Rando HD-68 Hydraulic Oil

Shell AW-68 Hydraulic Oi

TUBE ROLL SETS:

34T-PRB55

¾”

1T-PRB55

1”

114T-PRB55

1-1/4”

112T-PRB55

1-1/2”

2T-PRB55

2”

212T-PRB55

2-1/2”

PIPE ROLL SETS:

34P-PRB55

¾”

1P-PRB55

1”

114P-PRB55

1-1/4”

112P-PRB55
