ID: 1700 Open
AFILADORA DE CUCHILLAS PARA MOLDURADORA
AFILADORA DE CUCHILLAS PARA MOLDURADORA
AFILADORA DE CUCHILLAS PARA MOLDURADORA
AFILADORA DE CUCHILLAS PARA MOLDURADORA
AFILADORA DE CUCHILLAS PARA MOLDURADORA
AFILADORA DE CUCHILLAS PARA MOLDURADORA

AFILADORA DE CUCHILLAS PARA MOLDURADORA

AMXmachine1

Contact Seller
Description

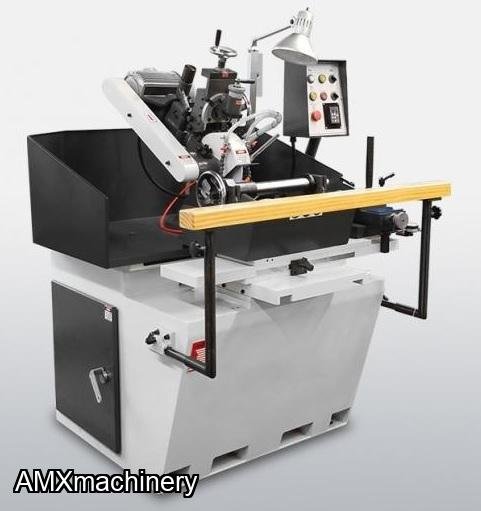

PARTE: 2CK-JF330 - AFILADORA DE CUCHILLAS PARA MOLDURADORA

Was designed to ensure the operator can produce an optimum knife finish, while producing precisely accurate profiles.  The powerful 3HP grinding motor makes knife grinding a breeze.  The VFD allows the operator to dial in the optimum grinding speed no matter what type of knife steel they are grinding.  Using an axial constant setup, tools can be transferred to the moulder quickly for precise and fast changeovers.  The cutterhead is mounted to a sliding worktable which runs on high precision Schneeberger linear bearings.  All these special features make the JF330 profile grinder the ideal solution for the small to large size moulding shop.


  • Powerful 3 HP grinding motor, allowing deep aggressive grinding when required.
  • Axial constant set up, allowing the ground tools to be easily transferred to the moulder for quick changeover
  • Stainless steel splash guards, coolant tank for long rust-free life

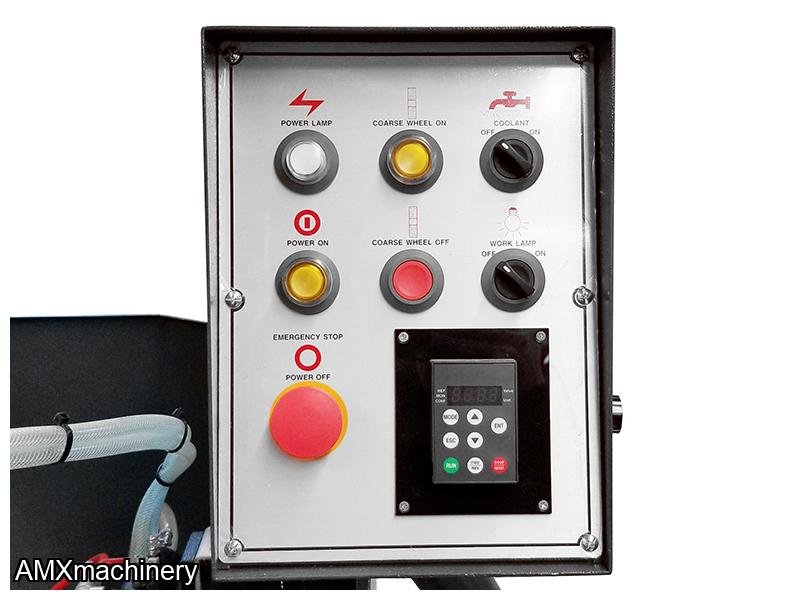

  • Easy to access adjustments and controls


  • 3 HP grinding motor
  • VFD to allow RPM to be varied for different wheels, and diameters
  • Schneeberger linear bearings for effortless and smooth worktable movement
  • Axial constant set up
  • Quick change side angle adjustments
  • Quick change grinding wheel hubs


Features: (Over 20 special modifications exclusive)

·         3HP Grinding Motor - hence heavy grinding possible

·         VFD variable frequency drive with digital speed readout to wheel

·         Schneeberger precision lineal bearings for easiest – smooth table movement

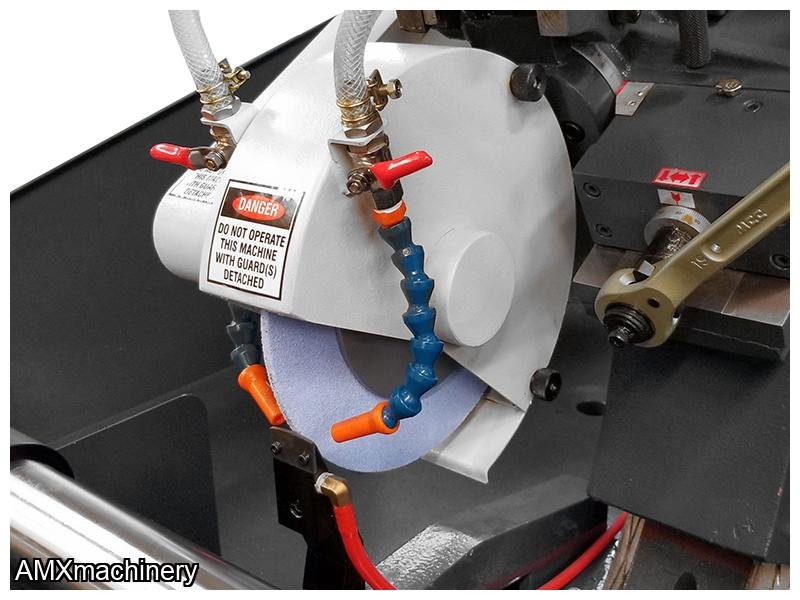

·         Over the wheel precision dresser assembly with straight and radial diamond dresser - mounted above wheel for easy access

·         Axial constant setup and template position

·         Quick side angle positive positions

·         90 degree positive grinding wheel lock

·         In/out table lock for straight knife grinding (template not required)

·         Special 3 nozzle cooling system – above & below the grind hence faster grinding possible

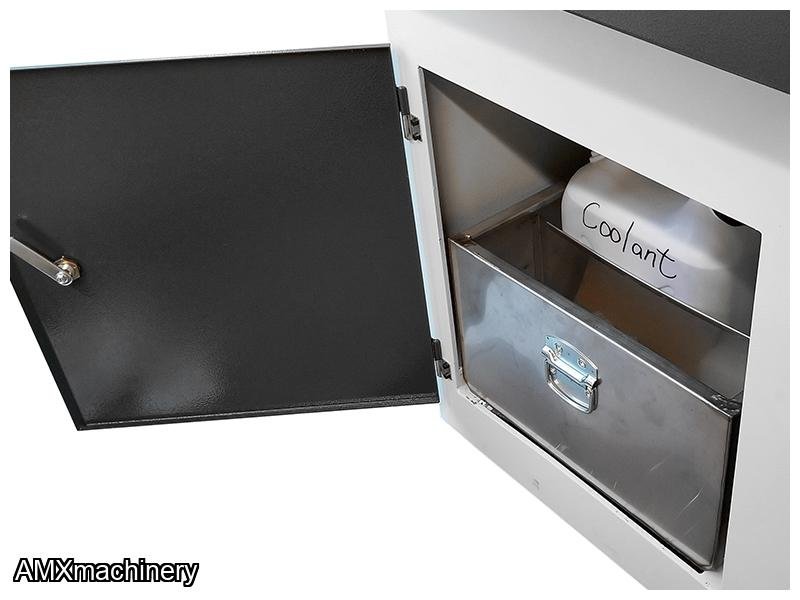

·         Stainless steel splash guards throughout and stainless coolant tank unit

·         Quick change precision wheel adaptor hub



Standard Equipment

·         Vari-speed grinding wheel – 1500 to 4200 RPM with VFD

·         Quick change removable grinding wheel adaptor – 140 mm dia

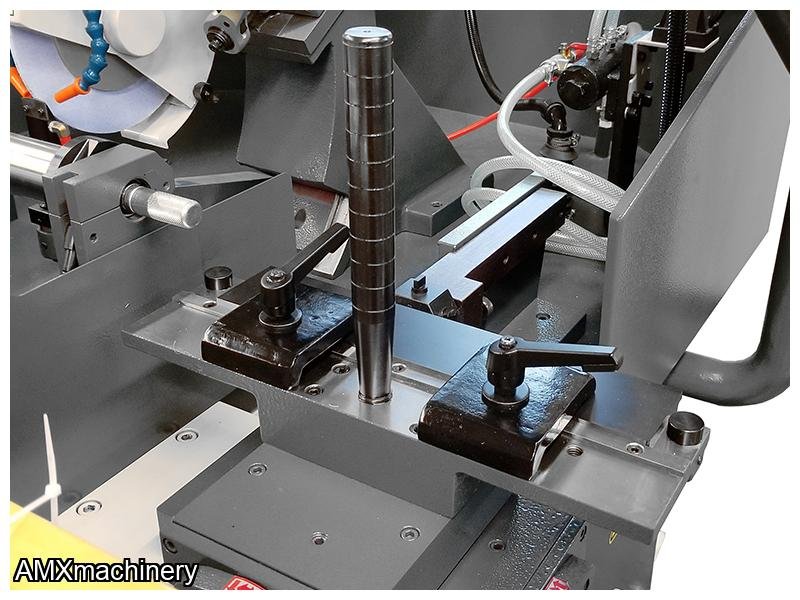

·         6-position stylus turret (for profile grind guiding) for quick change

·         5° / 10° / 15° side clearance - quick setting

·         1 cutterhead arbor - specify diameter with 6 spacers

·         HD bright work light

·         Electrics & controls are to CSA / UL standards and are 230/460/3/60 as desired.

·         1 cutterhead arbor – please - specify diameter with 6 spacers

·         2.6 U.S. Gal (10 litres) coolant concentrate included

·         Tool box included with lots of miscellaneous tooling

·         225mm x 5mm wide x 60mm bore excellent profile grinding wheel



SPECIFICATIONS

2CK-JF330

2CK-JF330A

Max. length of straight grind

10”

12” (14”, 16”, 18” optional)

Max. length of profile grind

10”

12” (14”, 16”, 18” optional)

Max. diameter of swing

10”

12”

Max. depth of profile @ 140 mm hub

1.6”

Max. depth of profile @ 110 mm hub

2”

Grinding wheel HD motor

3 HP

Grinding wheel size

225 mm dia. x 60 mm bore

Footprint

41” x 44” x 59”

Net weight

1,750 lbs

1,850 lbs
