Description

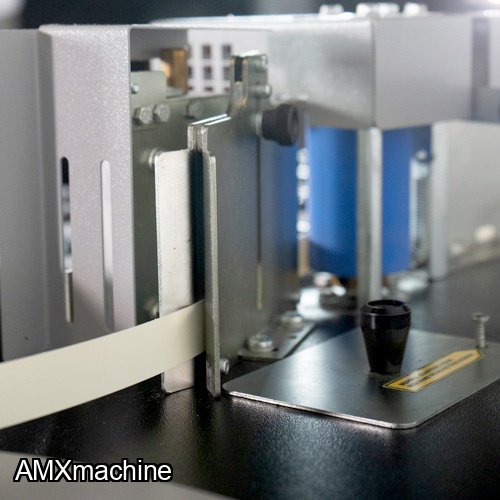

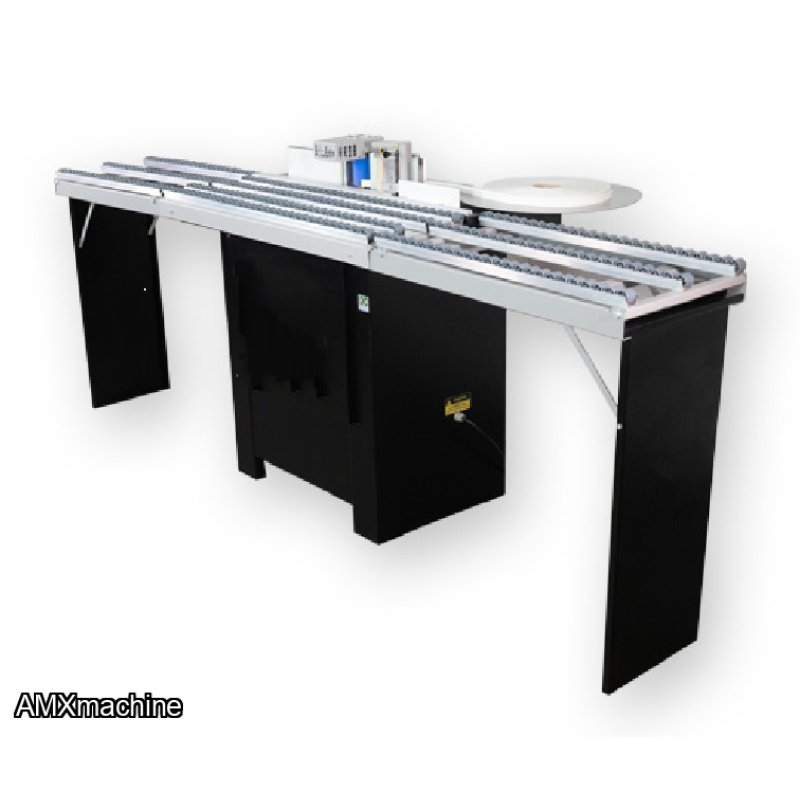

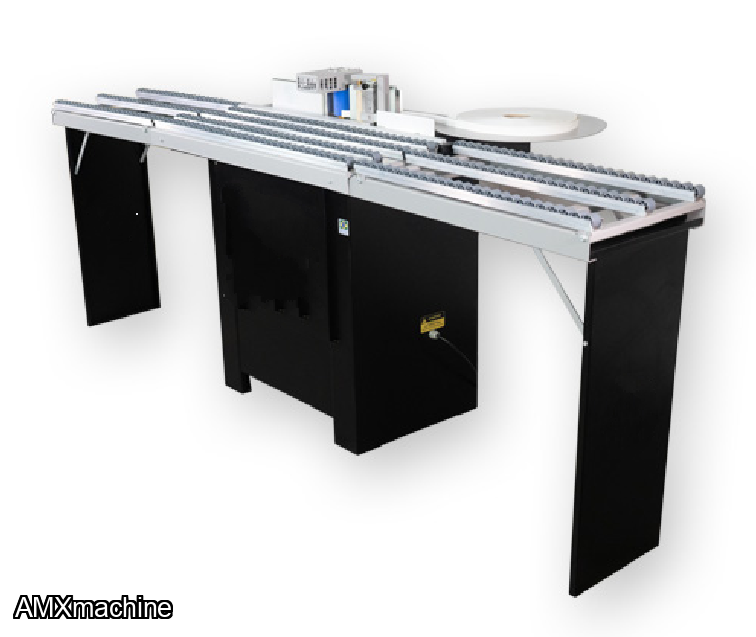

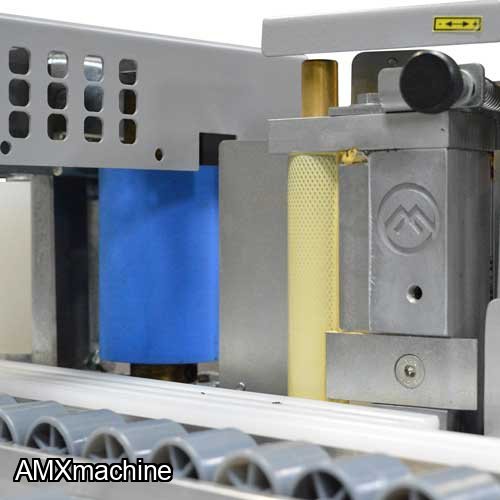

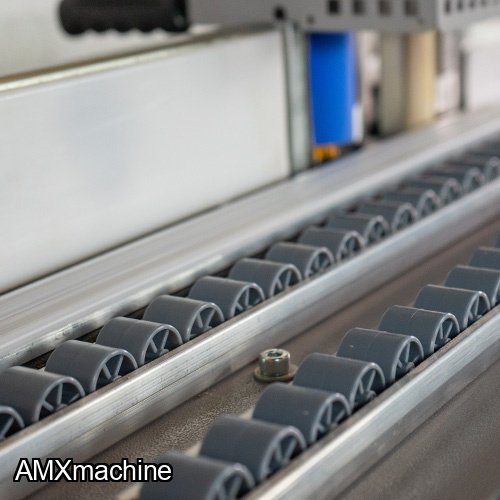

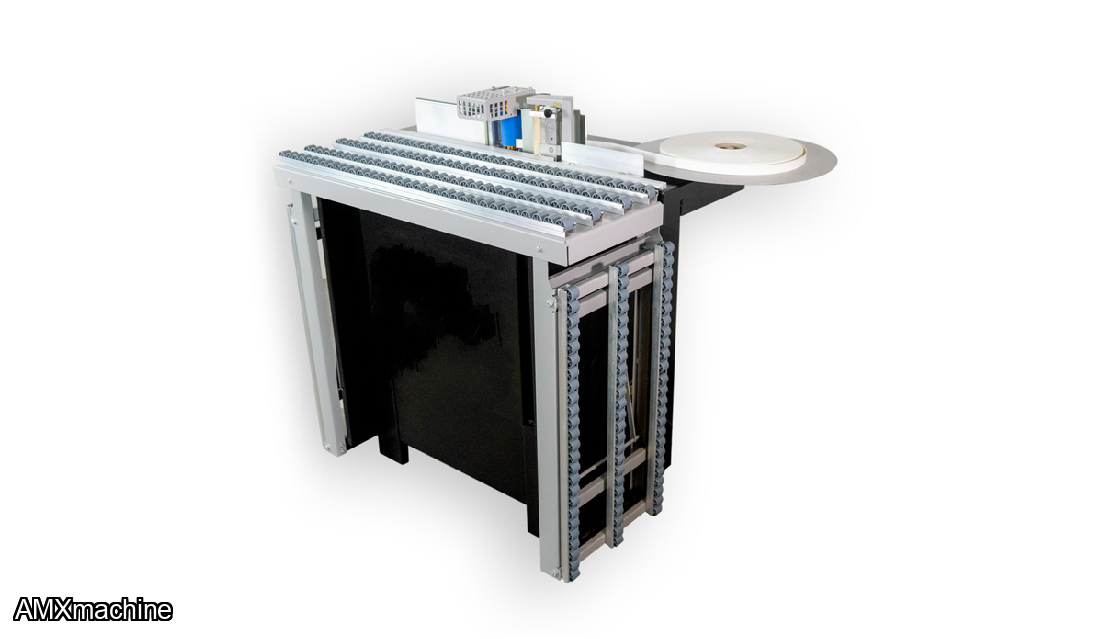

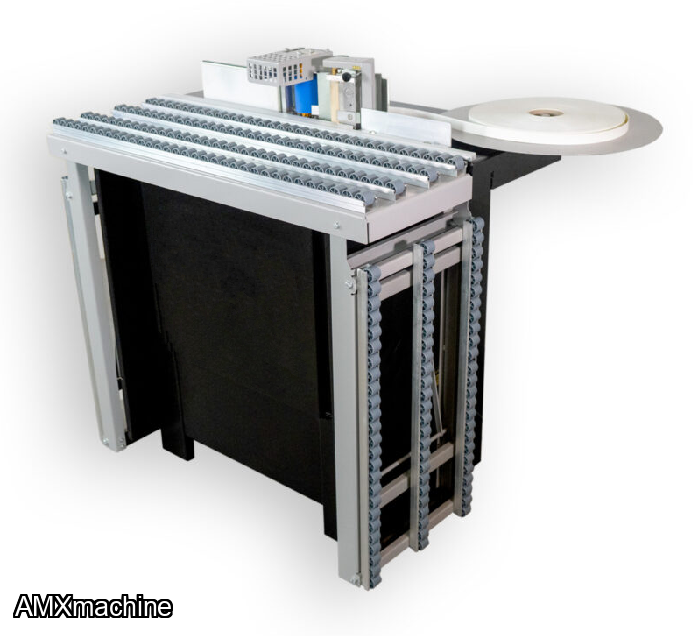

PARTE: 2MK-CBC.MR - EDGEBANDER
Has a built-in retractable extension table providing a work area 3x times longer whenever opened, it is perfect for long pieces such as doors and panels and it has 6 speeds allowing the operator to work as fast as he wants.
WORK AREA
Whenever opened the extension tables will give you 3x the regular work area of the machine.
6 PARAMETERS
With 6 speeds to chose from the feeder switch will work on your desired velocity.
| Technical Information | |
|---|---|
| Electrical specs | 1 Phase 110 V 1500 W 60Hz |
| Motor specs | 24 V 10 Amp |
| Manual Feeding Speed | 0 - 26ft/min |
| Max edgebanding Height | 3" |
| Edgebanding Coil Support Diameter | 19 1/2" |
| Tape Thickness | 0.4 - 2mm |
| Edgebanding Material | Melamine /PVC/ABS/PP/ VEENER non-fleeced |
| Glue Pot Capacity | 1.5 lbs |
| Recommended Glue Temperature Range | 130° to 180º C |
| Glue Pot Tape | Granulated Hot-Melt |
| (Extensions) Machine Dimension LxWxH | (101 3/4") 48 1/2" x 35 1/2" x 43" |
| Shipping Dimension | 43" x 30" x 50" |
| Weight | 240 Lbs. |
