Description

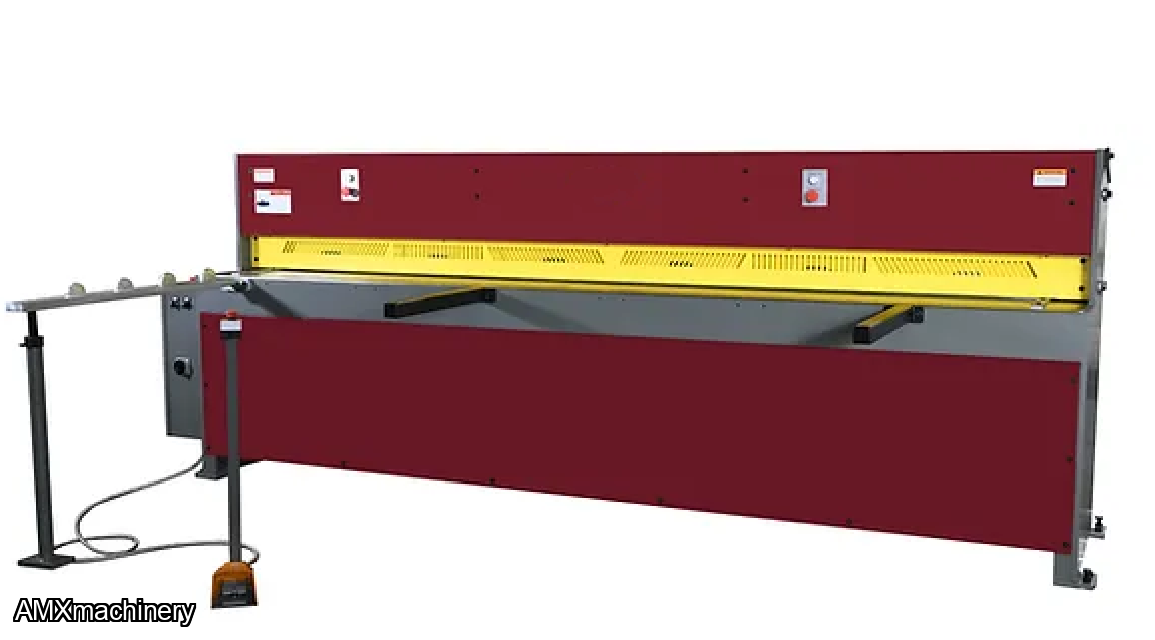

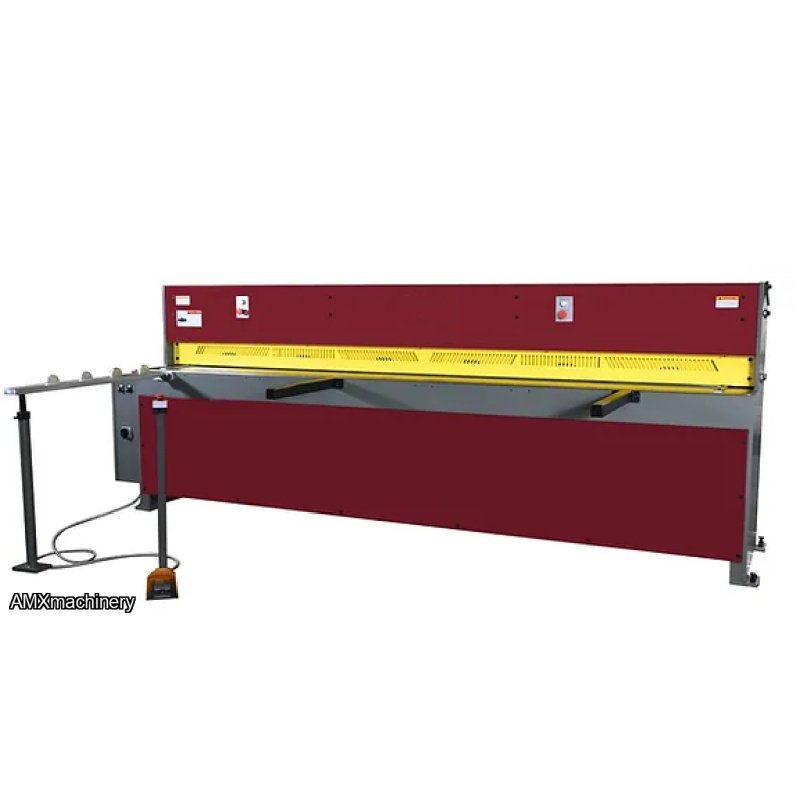

CORTADORA MECANICA 8' x 10 Ga PARTE: 2GM-EPS-0810M
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 30 strokes per minute
- 60” long squaring arm with inch / mm scale
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes

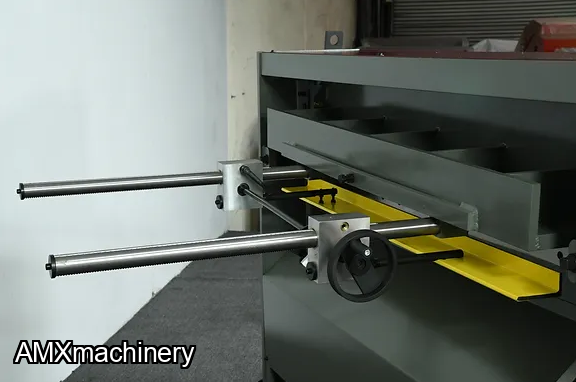

- 6” manual back gauge with one side handwheel
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
Cutting Capacity Mild Steel - HRS (tensile 60,000 PSI) Stainless Steel (tensile 85,000 PSI) Soft Aluminum (tensile 28,000 PSI) min. thickness |
8' x 10Ga. 8' x 14Ga. 8' x 1/4" 22Ga. |
| Blade Lenght | 98" |
| Strokes per minute | 26 |
| Worktable height | 32" |
| Front support arm | 36" |
Back gauge | 26" Manual Back gauge |
Blade Rake Angle | 2.5 Degree |
