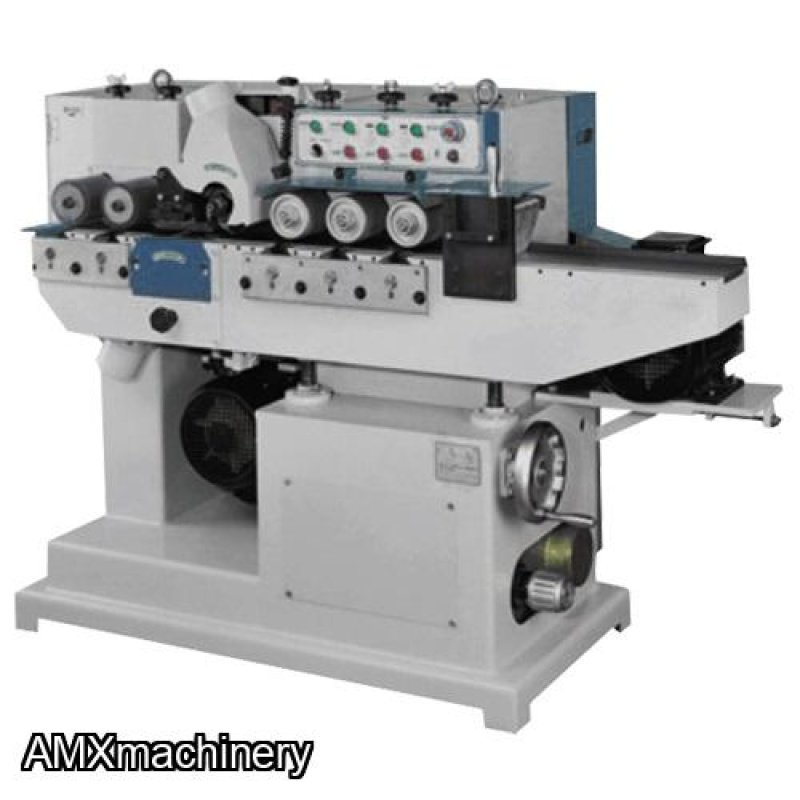

PART: 2CA-RM30100AT-E - MULTI ROUND POLE – 1-1/8" x 4"
New with Warranty
This RM30100AT is capable of producing multiple rods or two-sided moulding at high production rate.
• It is built with top and bottom cutter spindle, typically for cutting wood board into round rods.
• Suitable for cutting wood board into round rods. When cutters are replaced with planer cutter heads, this machine can perform double-sided planing or moulding.
• It can use flat board without per-cutting.
• Variable speed feeding for fast and easy adjustment.
• Industrial full power motor for maximum cutting capacity.
• Precision sealed long-life bearing.
• Heavy cast iron frame and table for durability usage.
• Designed for high production performance.
• Number of round rods per pass is determined by the diameter to be cut, maximum cutting width is 4" (100 mm).
• Cutting capacity: Ø2- Ø30 mm in diameter.
• Magnetic switch control.
• Easy adjustment in every way, more convenient than competitors on the market that saves your adjustment time.
| SPECIFICATIONS | |
| Max. Working Width | |
| Range of Rod Diameter | 1/8" - 1-1/8" |
| Motor Top Spindle | 7.5 HP |
| Motor Bottom Spindle | 7.5 HP |
| Feed motor | 1 HP |
| Spindle Speed | 6500 RPM |
| Feed Speed | 15 - 45 FPM |
| Max Cutter Diameter | 4" |
| Spindle Diameter | 1-1/4" or 30 MM |
| Dust Hood | 4" x 2 |
| Machine Size & Weight | 70" x 33" x 49" - 2400 LBS |
