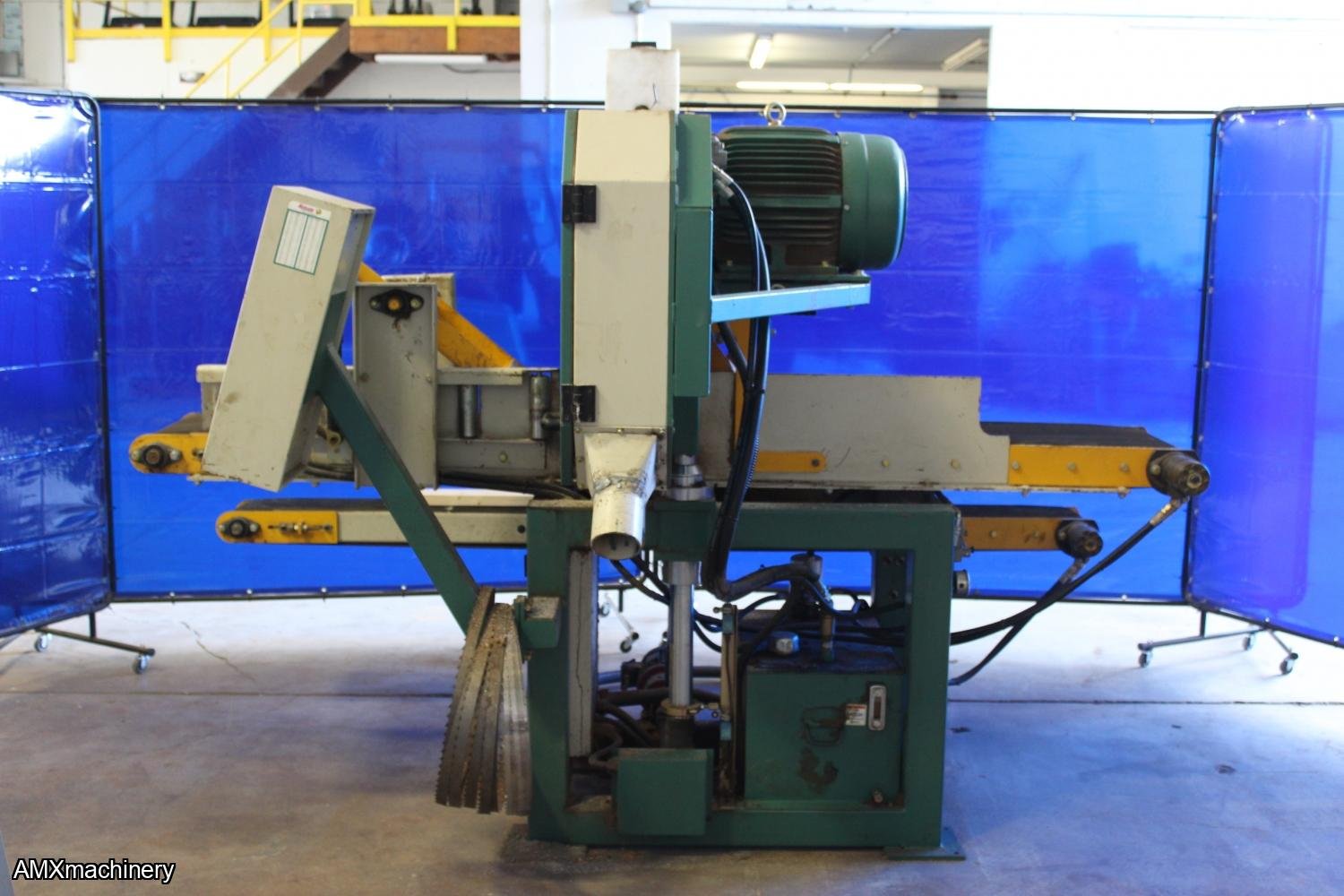

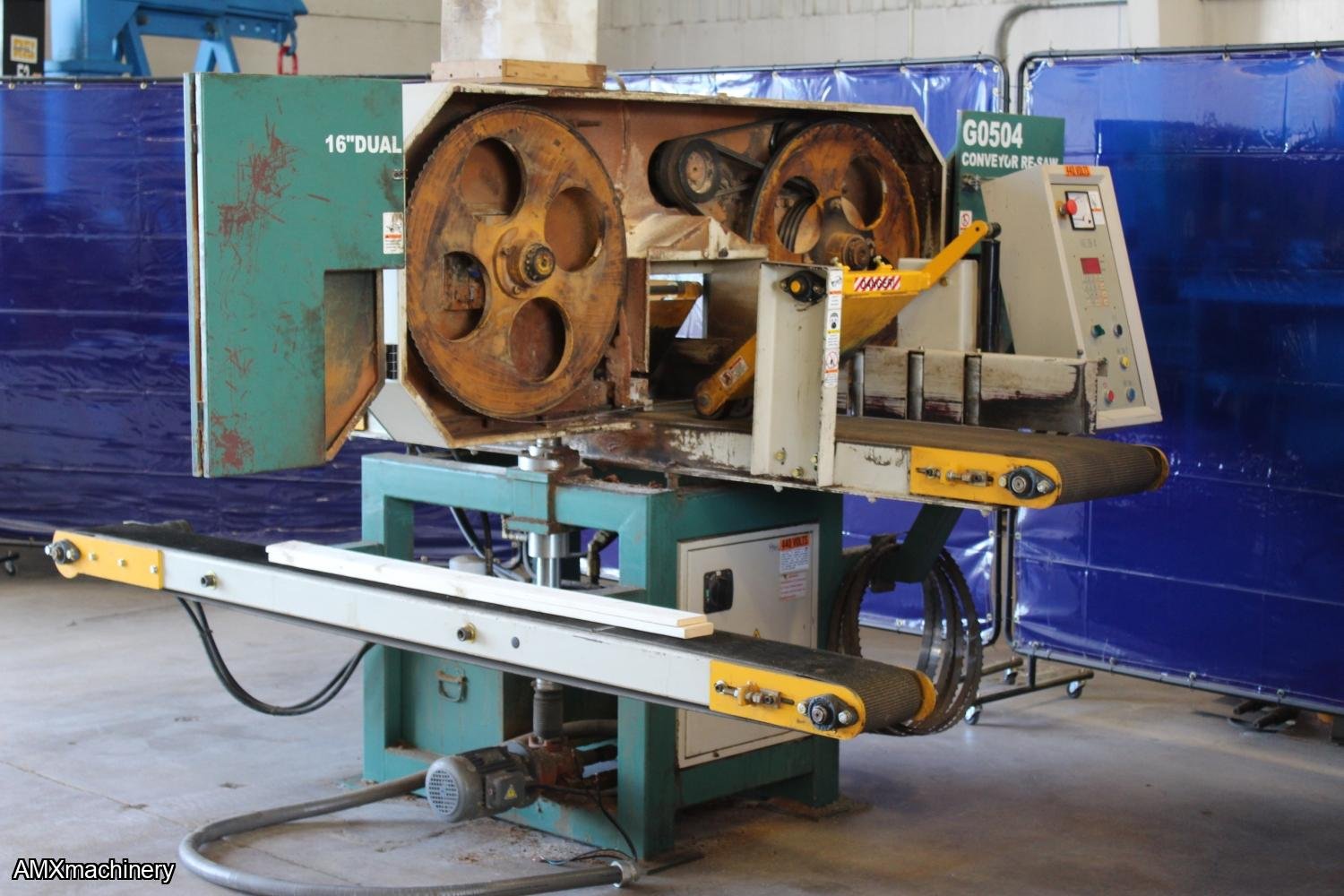

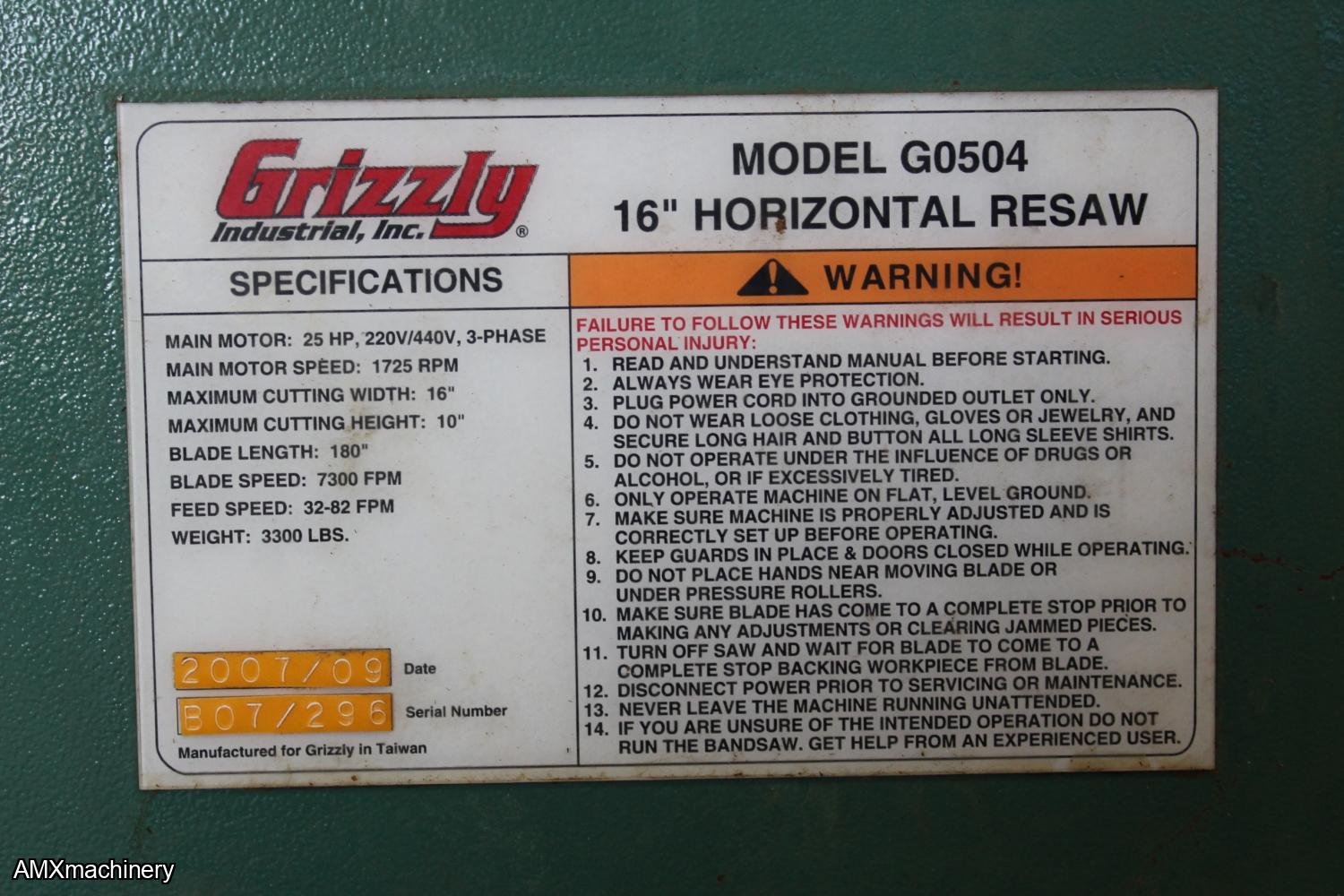

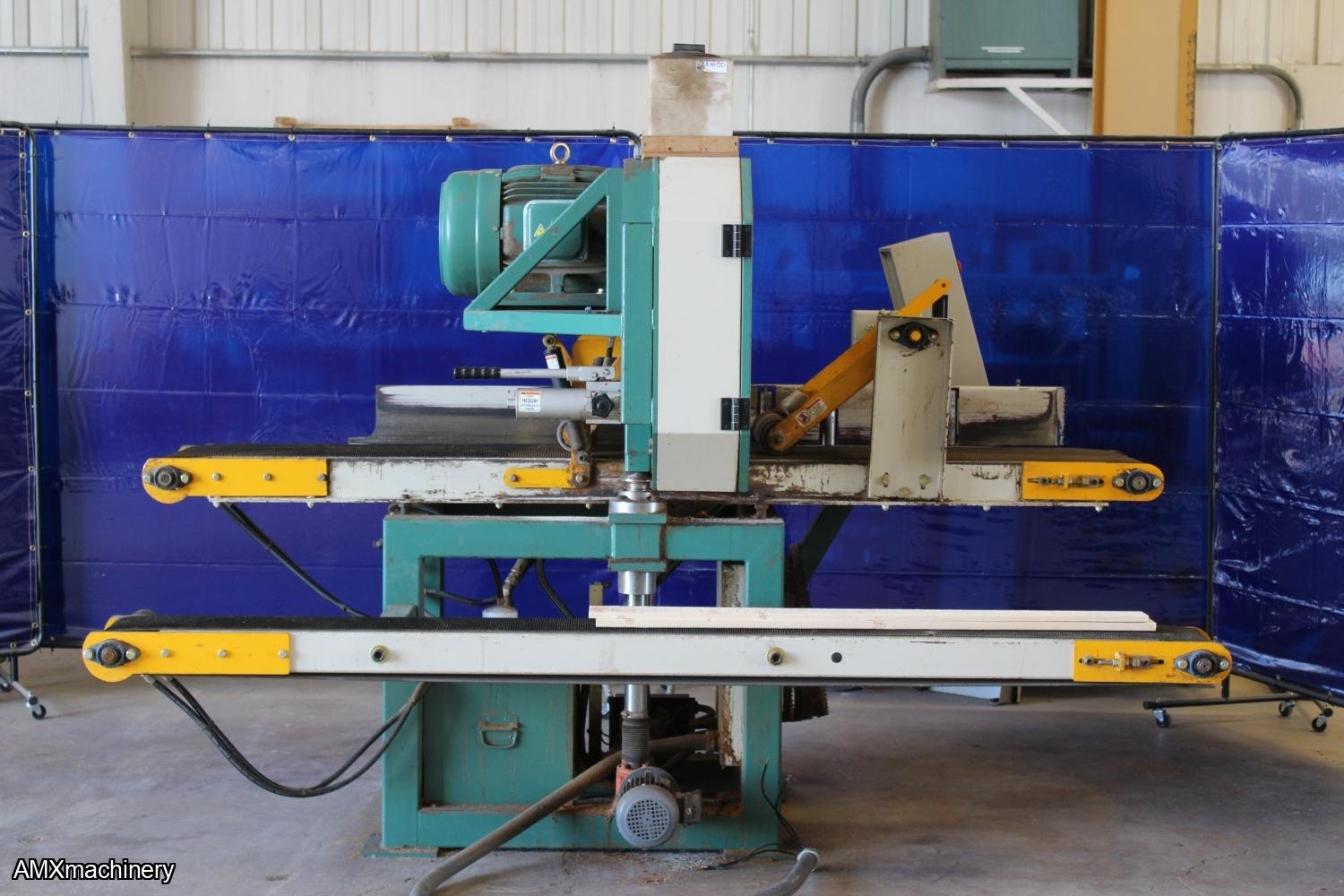

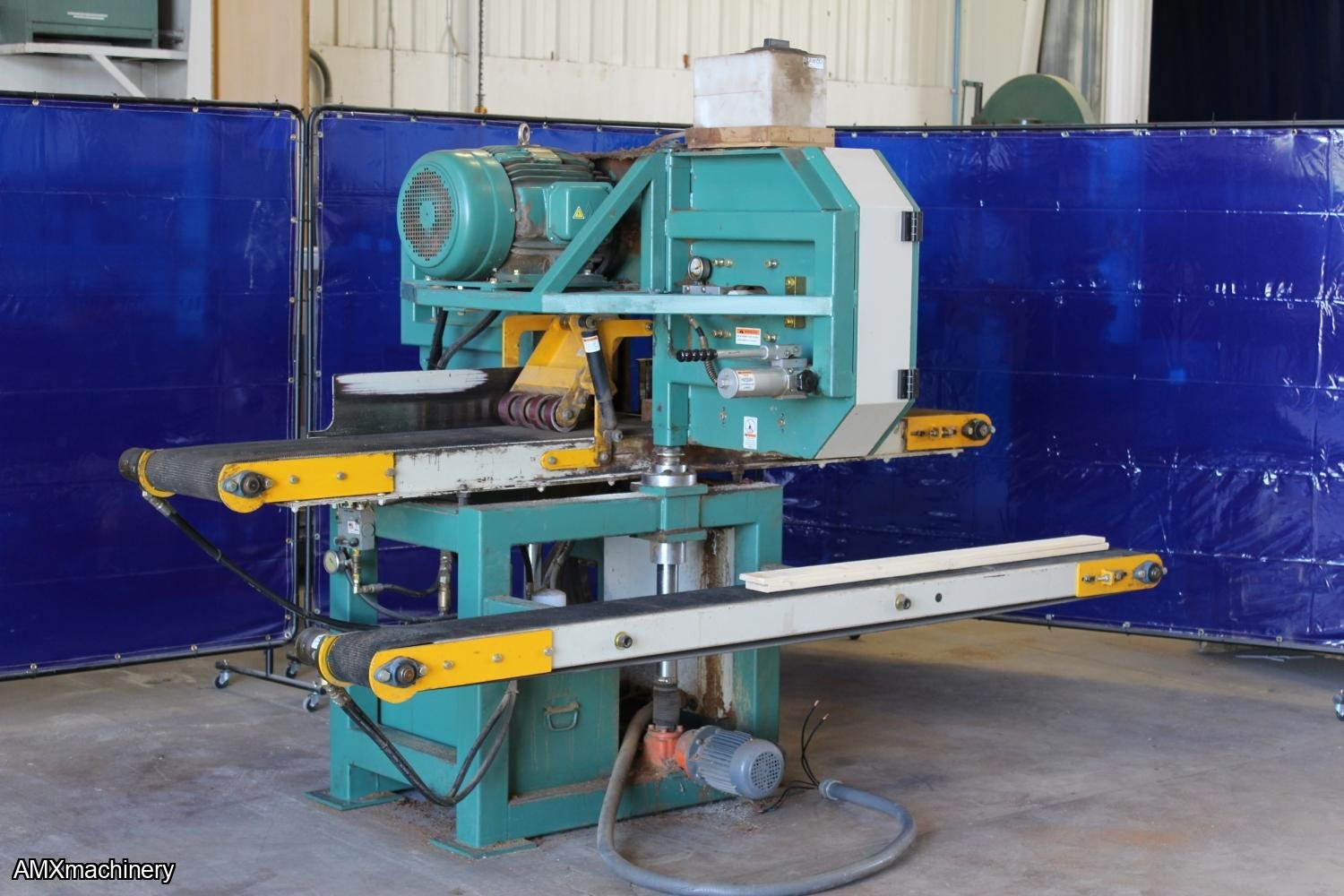

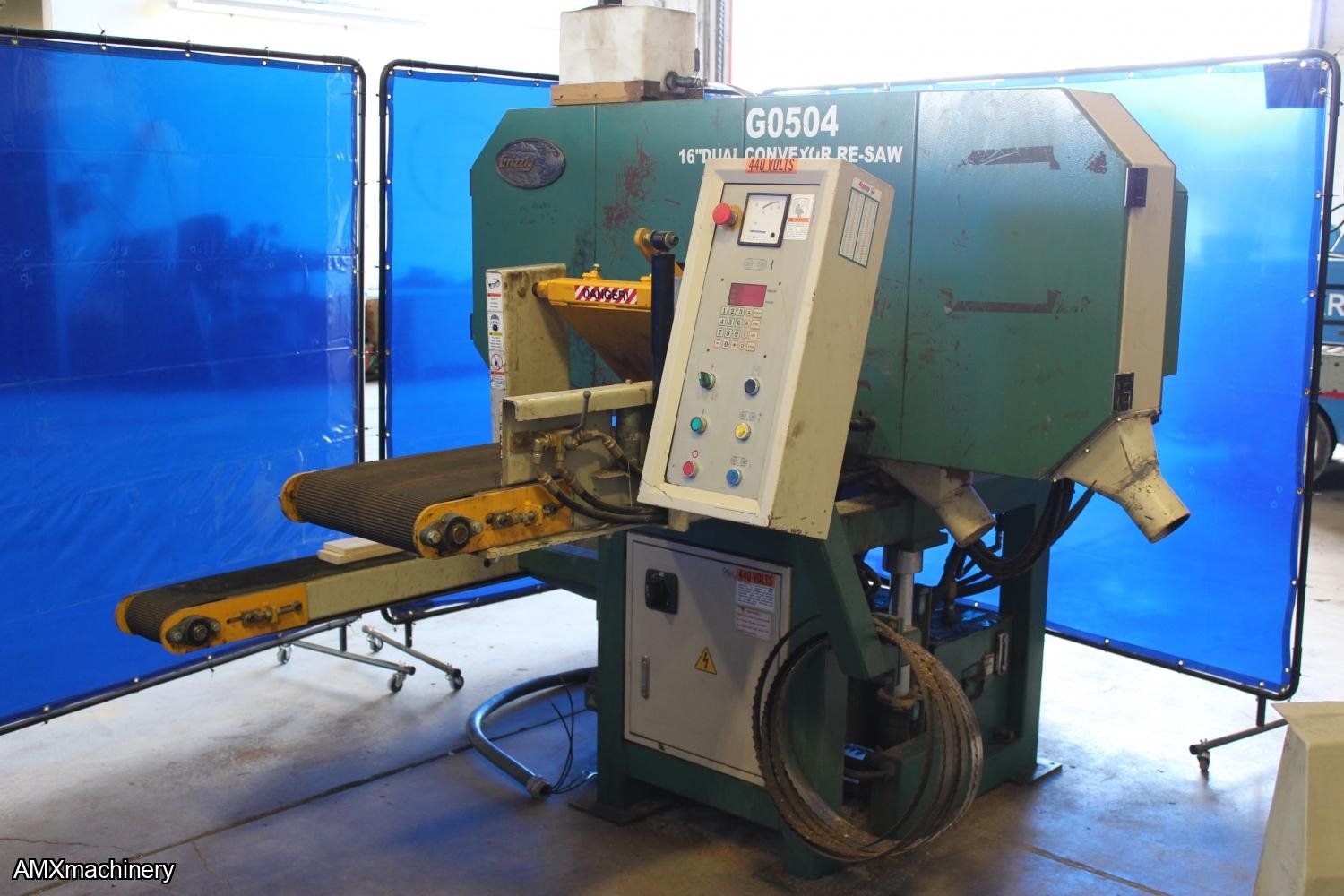

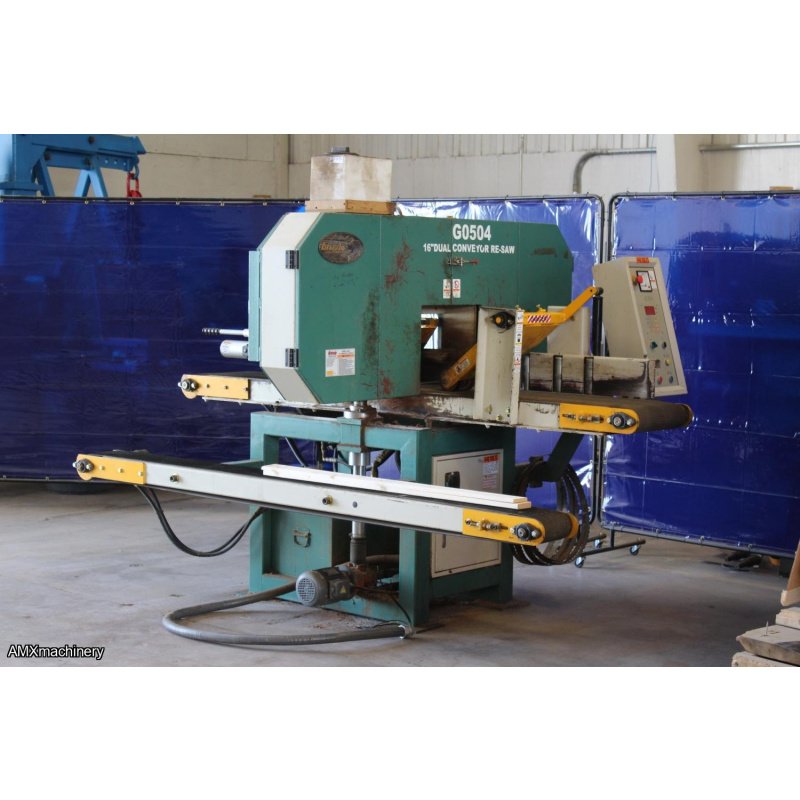

PART: 12561 - HORIZONTAL BAND RESAW - GRIZZLY G0504
In Good Running Condition & Ready to Ship

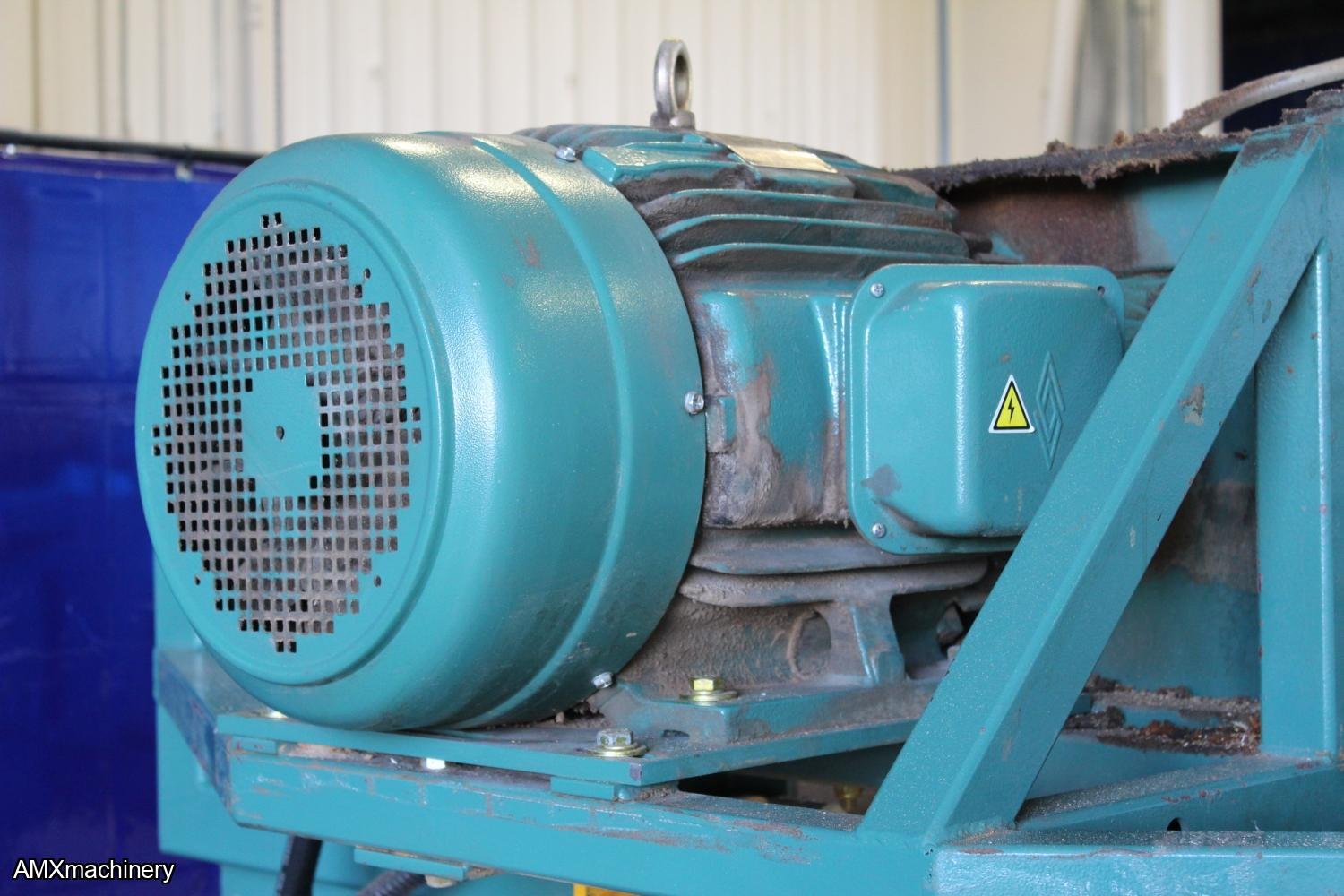

Main motor: 25HP, 220V/440V* (prewired for 220V), 3-phase
Elevation motor: 1/2 HP

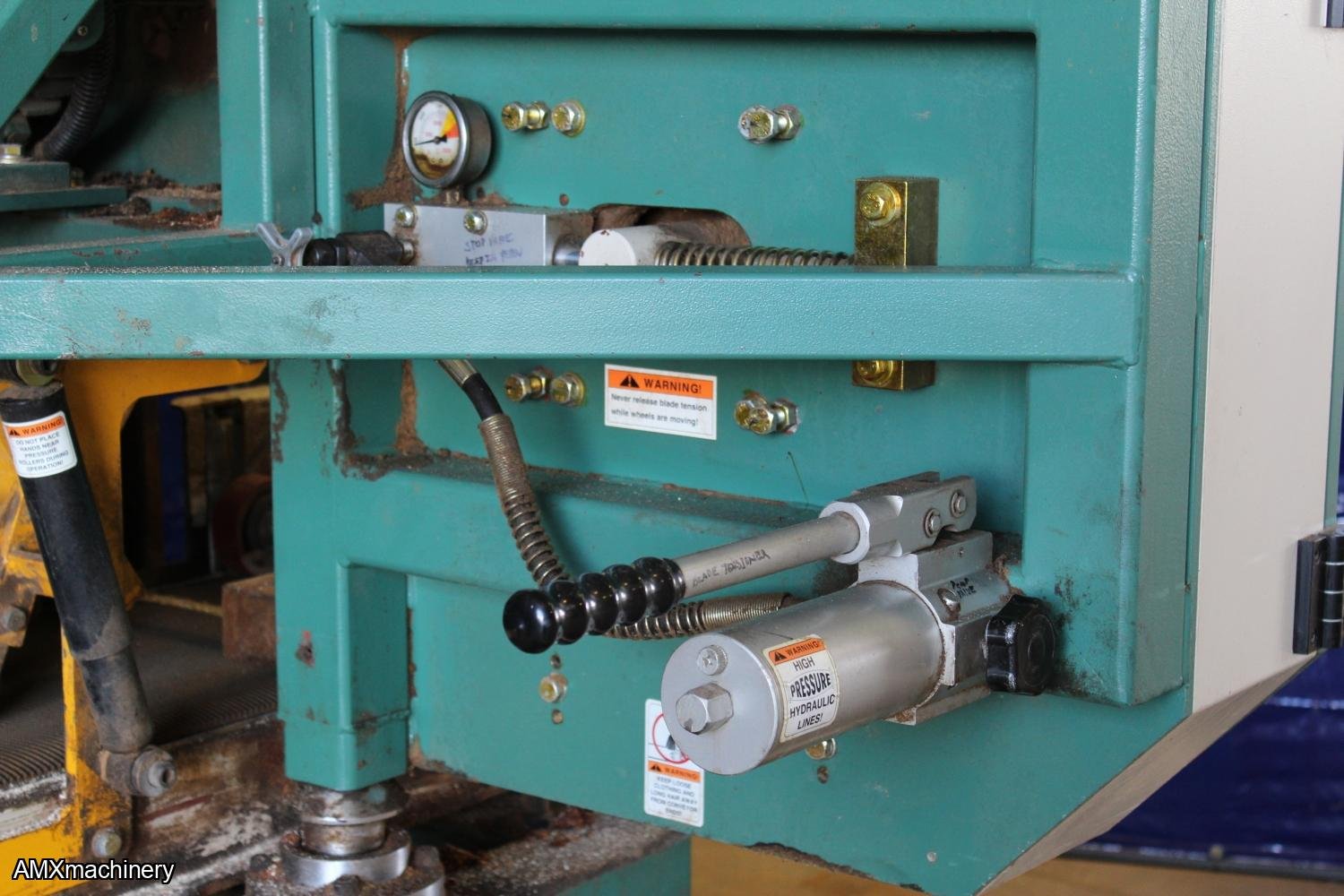

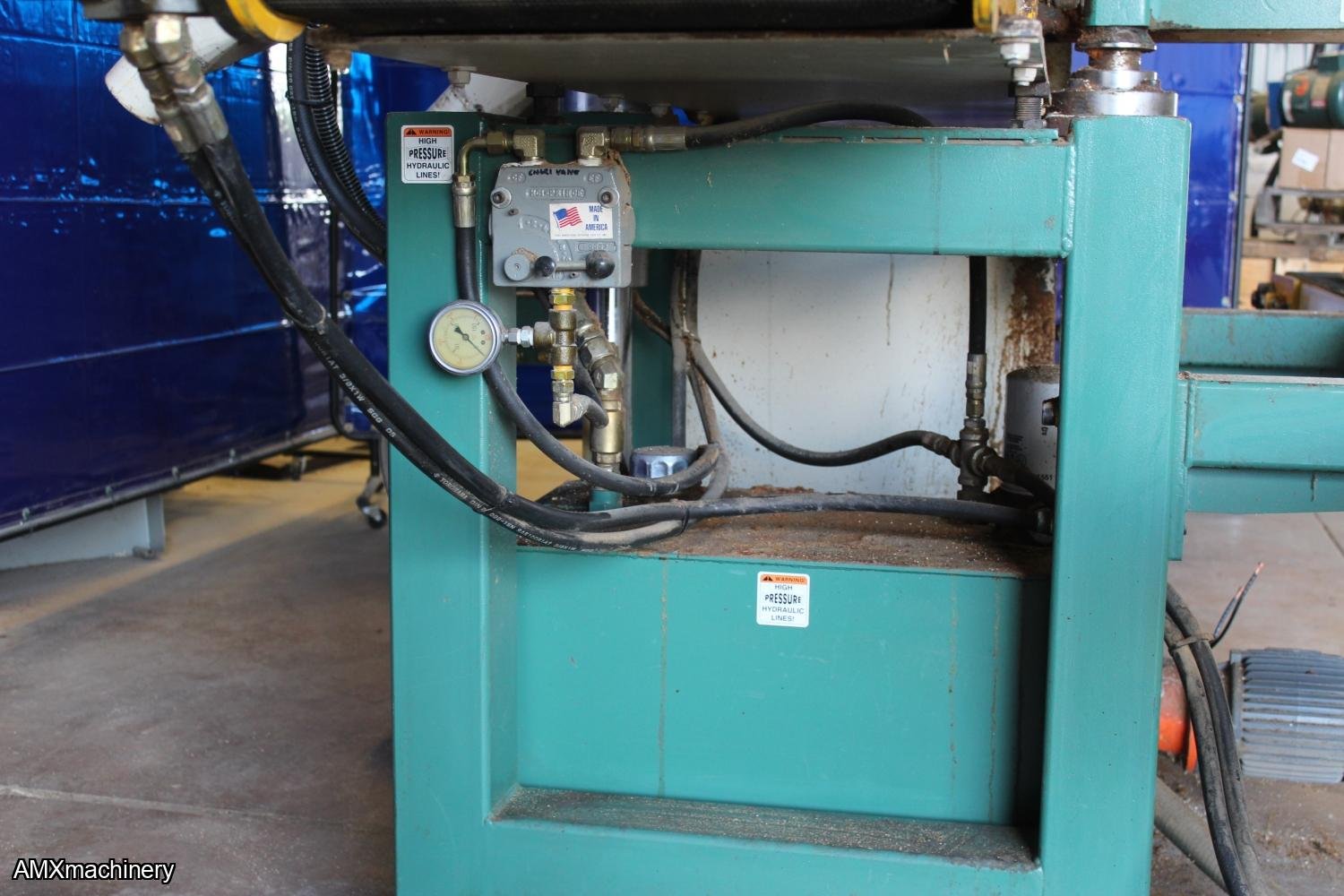

Hydraulic pressure: 1000 PSI

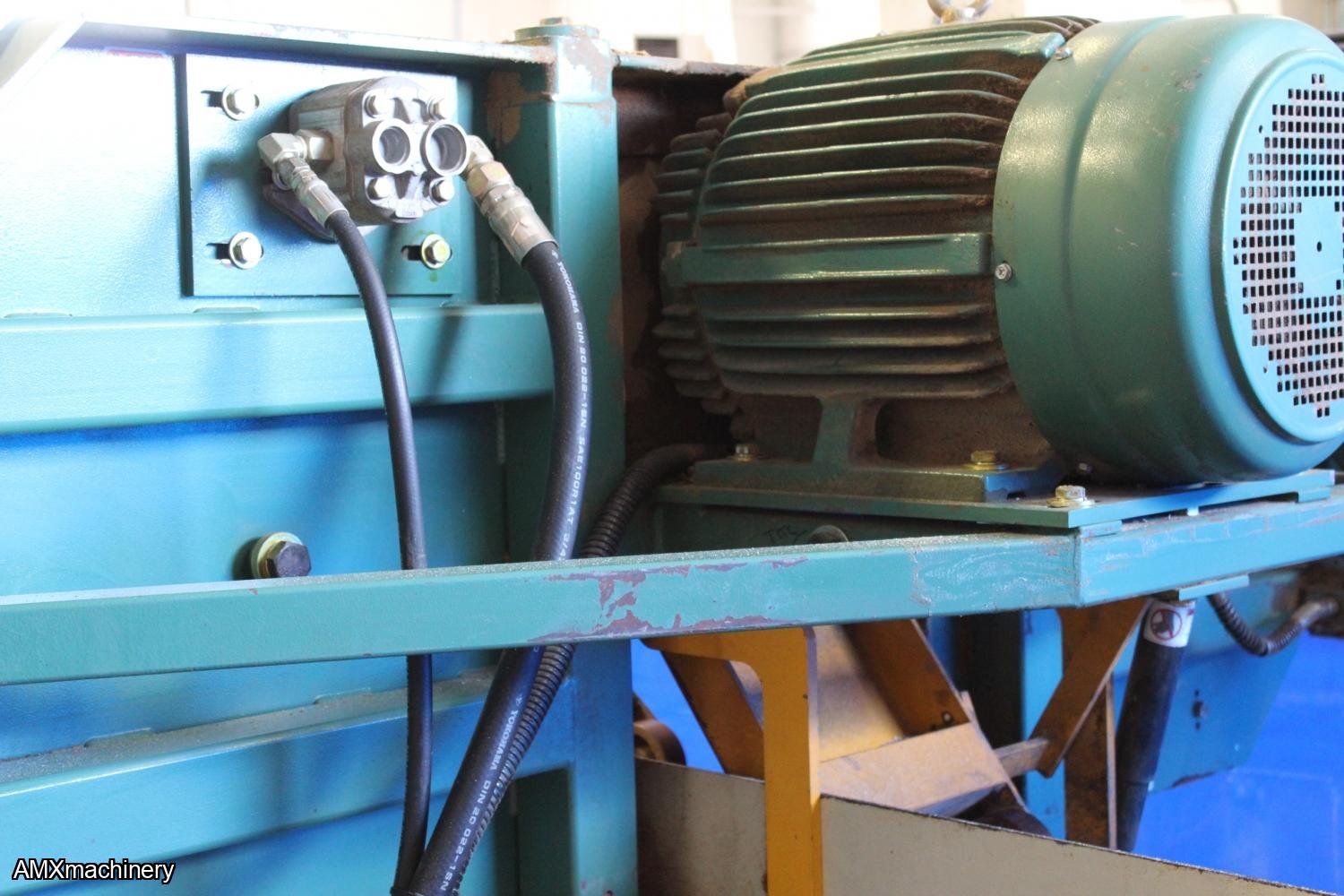

Belt Powered Hydraulic Pump - Main Saw Motor - 25HP
Maximum cutting capacity: 10" x 16"
Distance from blade to conveyor table: 1/4"–10"
Feed speed: 0–61 FPM
Saw blade size: 180" L x 1" W
Saw blade speed: 7300 FPM
Floor to table height: 40"

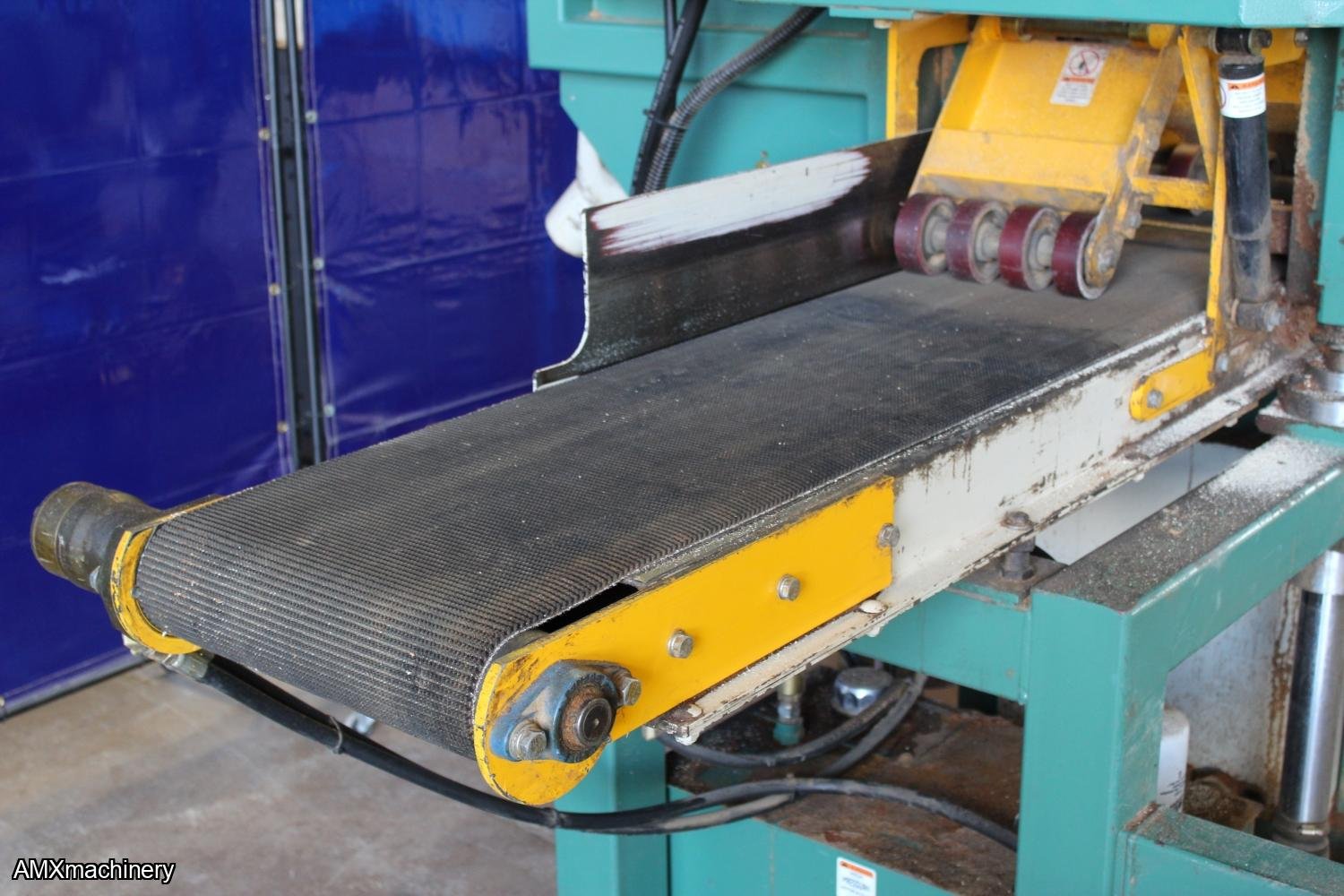

Infeed table: 106" L x 16" W

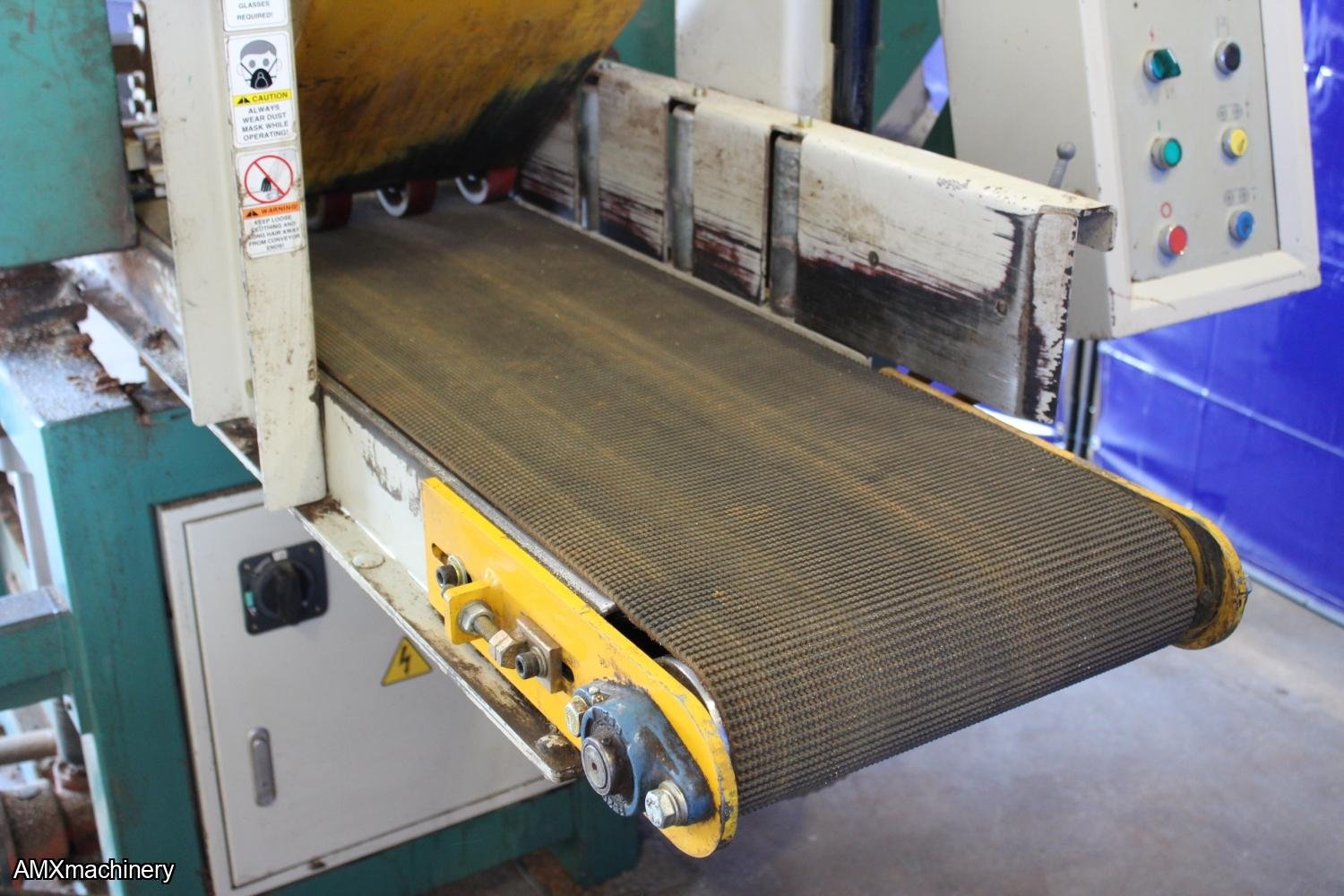

Infeed belt: 215-3/4" L x 15-1/4" W
Hydraulic Infeed Conveyor Motor
Return table: 107-1/2" L x 18-1/2" W
Return belt: 215-3/4" L x 7-1/4" W
Hydraulic Return Conveyor Motor

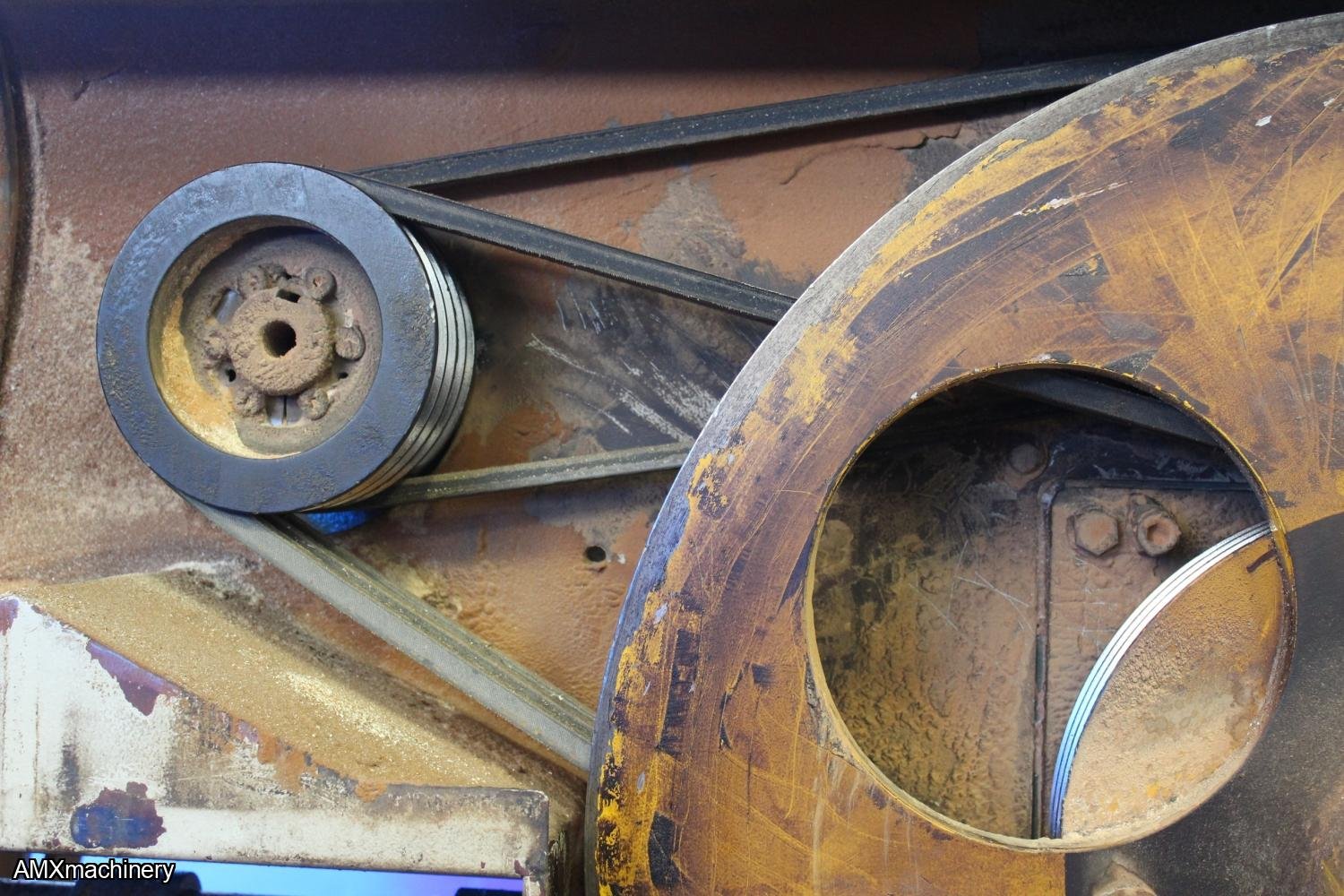

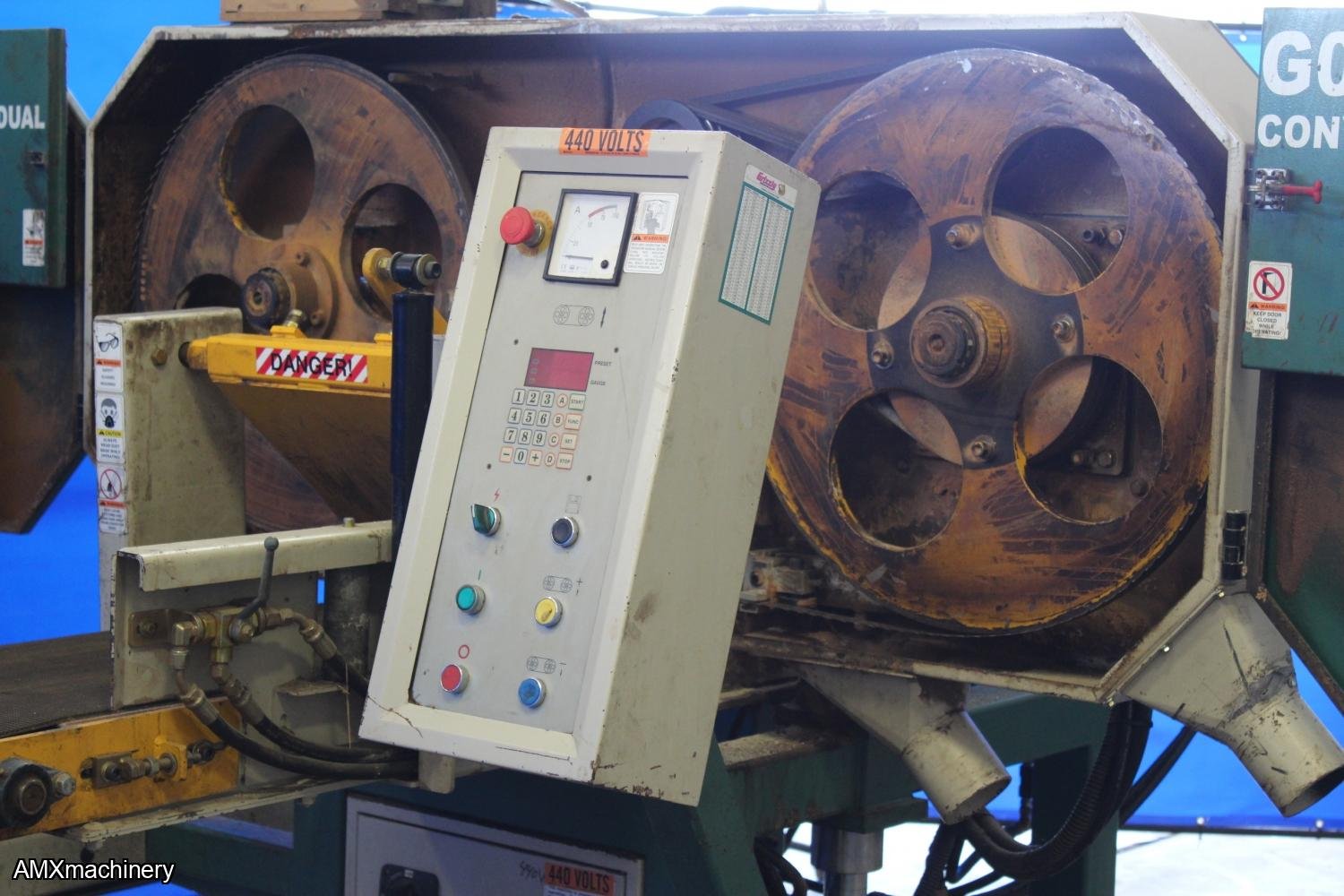

Wheel size: 28" dia. x 7/8" W
Dust port size: 2 x 4"
