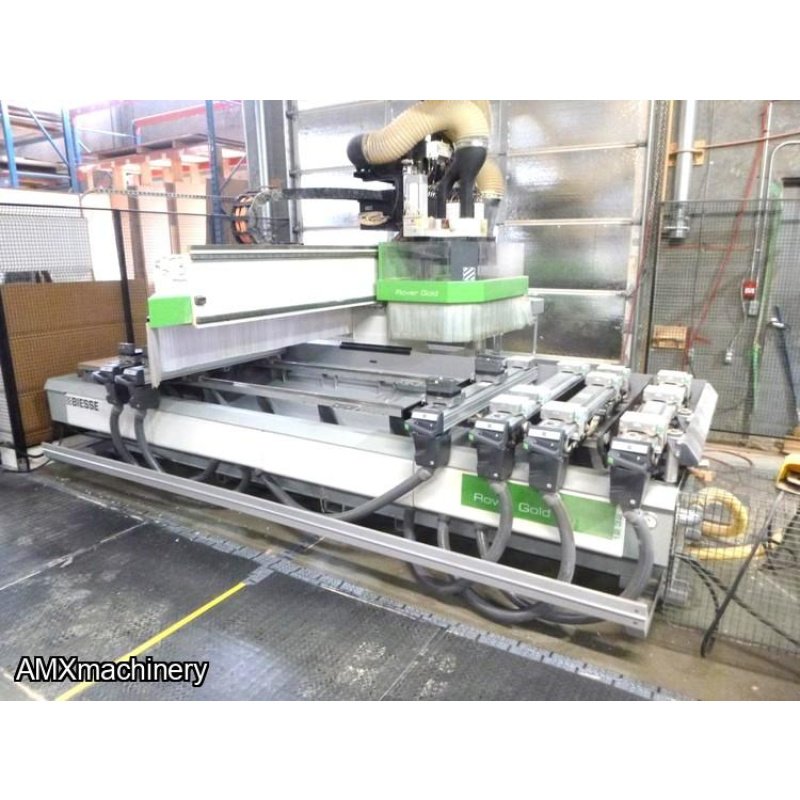

PART: 12526-E - CNC MACHINING CENTER - ROVER GOLD 1232
USED

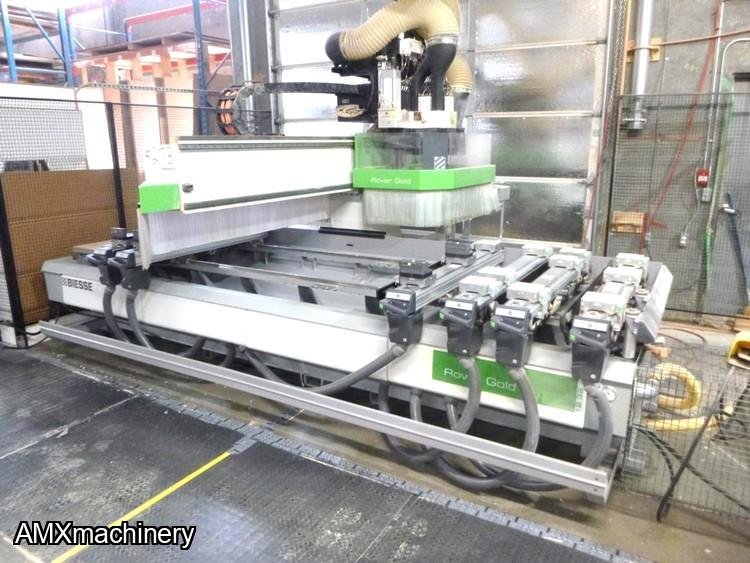

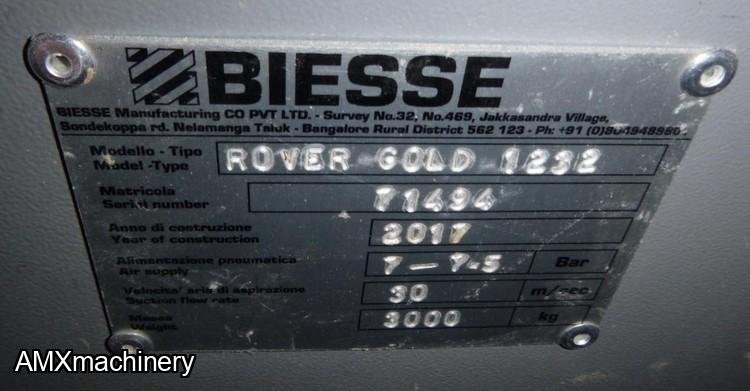

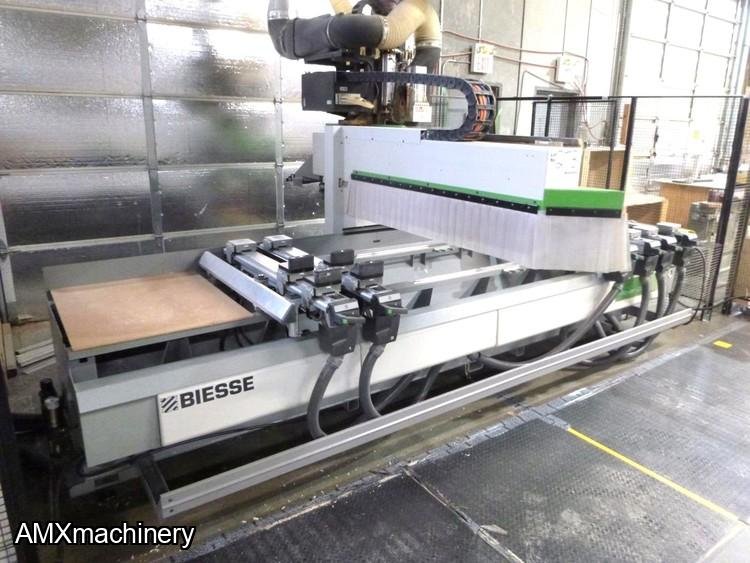

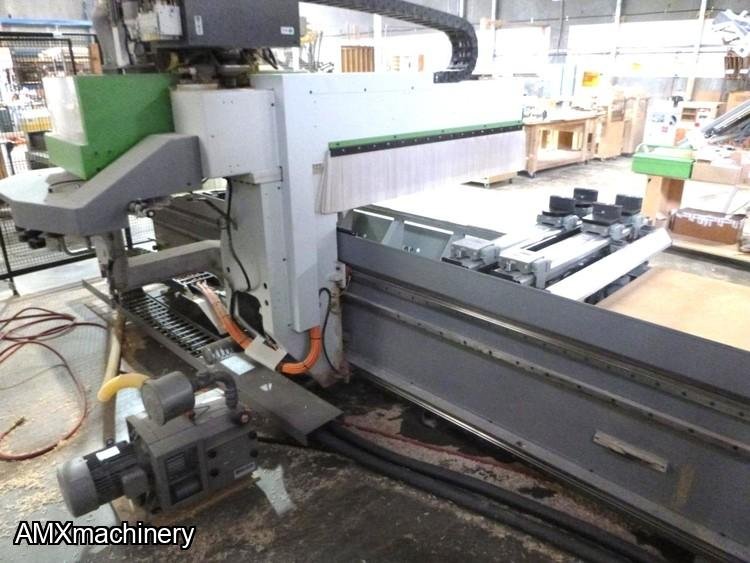

Numerically controlled machining centre ROVER GOLD 1232
Working fields: X = 3.280 mm; Y = 1.260 mm; electrospindle axis
Z Clearance = 180 mm with H=74 mm modules – Z Stroke = 364 mm

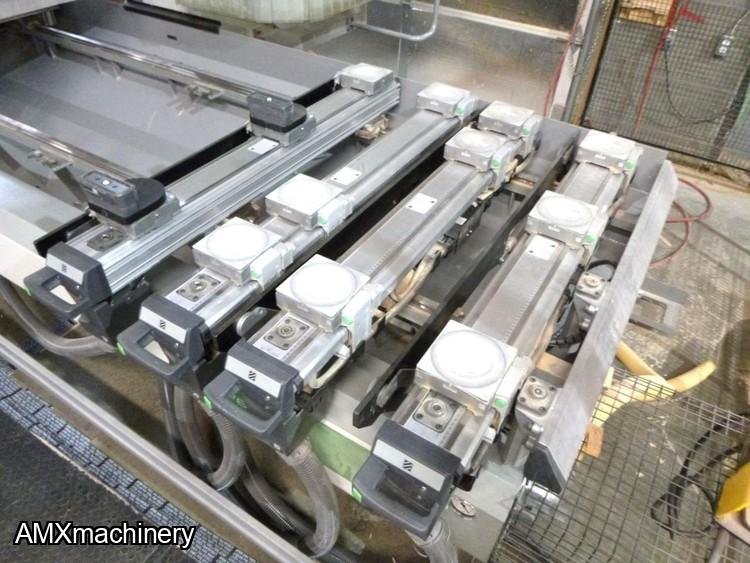

WORKING TABLE
6 ATS panel supports - L = 1240 mm - 18 sliding bases for vacuum
6 back stops of 115 mm stroke and 26 mm height spacers
6 front stops of 140 mm stroke
4 side stops of 140 mm stroke 2 RH + 2 LH including the pneumatic system

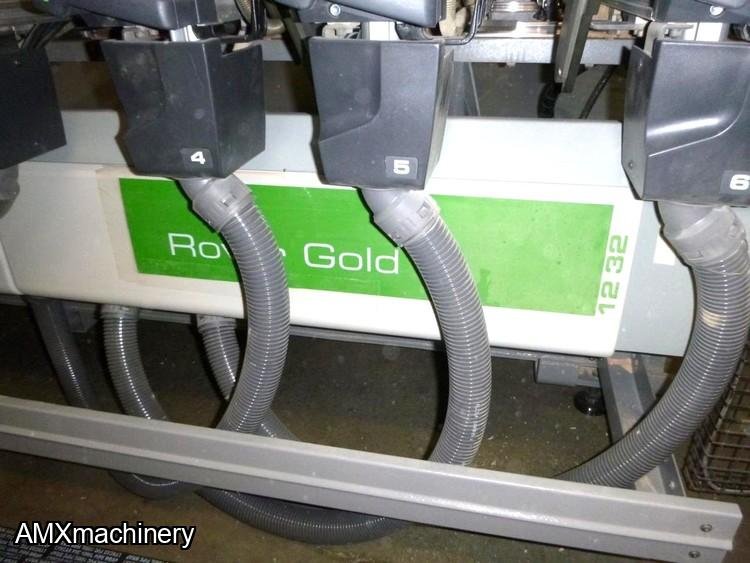

12 Vacuum modules with dimensions 132 x 146 x H74 mm
6 Vacuum modules with dimensions 132 x 75 x H74 mm

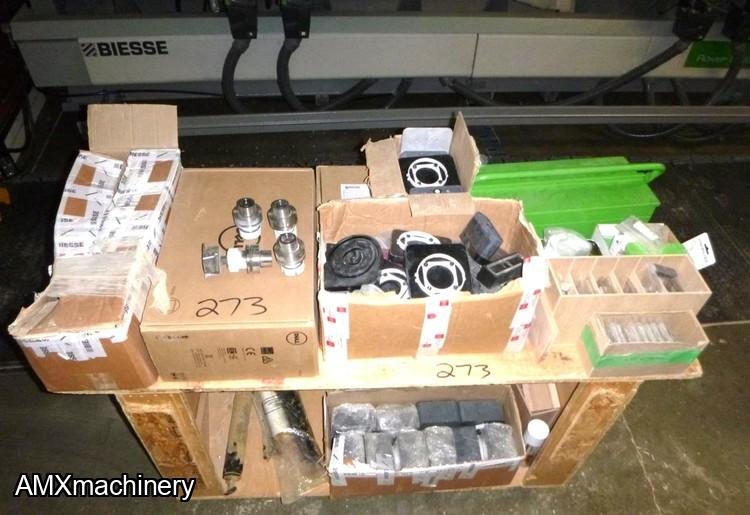

12 CLAMPING UNITS for the locking of narrow pieces
OPERATING GROUP
13.2 kW = 17.7 HP Electrospindle with ISO 30 adaptor and air cooling
Main specifications:
11 kW = 13.6 HP from 12,000 to 15,000 rpm in S1 duty
13.2 kW = 16.1 HP from 12,000 to 15,000 rpm in S6 duty
ceramic bearings
Rh and Lh rotation
rotation speed from 1,000 to 24,000 rpm, programmable by N.C

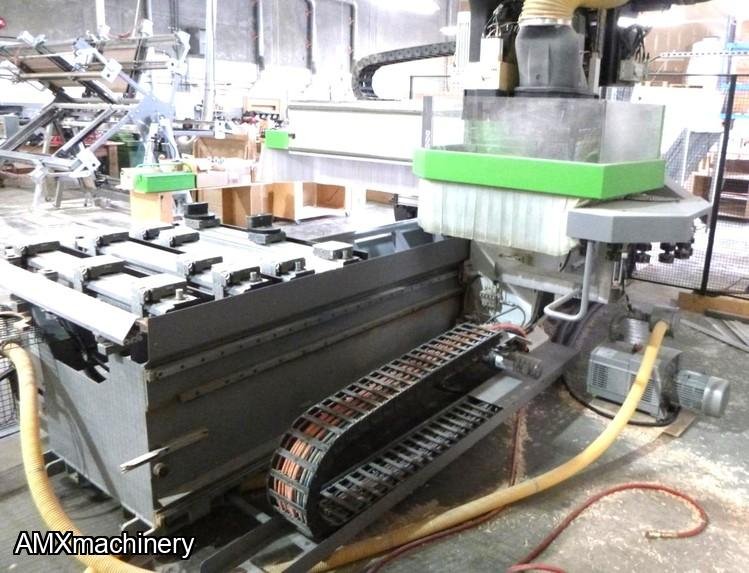

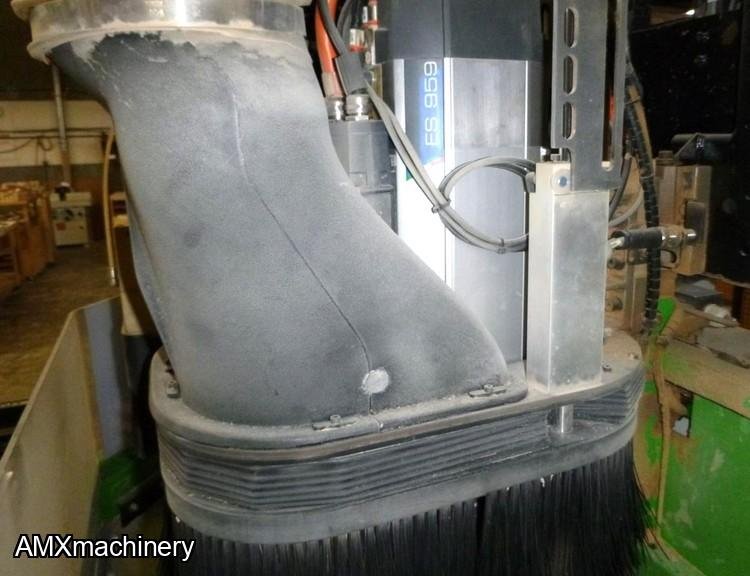

It includes a dust extraction hood with 6 different positions in Z controlled by the NC, in relation to the length of the tools or the different programs.
The hood is automatically deactivated when the electrospindle is not working.
