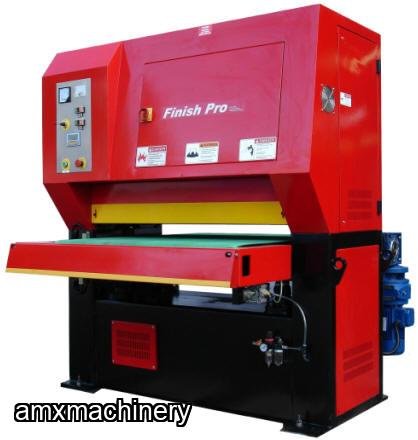

PARTE: 2MA-FP-4075CB – LIJADORA - CALIBRADORA DE METAL – 40” ANCHO - 2 LIJAS
AMXmachine
Description
PARTE: 2MA-FP-4075CB – LIJADORA - CALIBRADORA DE METAL – 40” ANCHO - 2 LIJAS
NUEVA CON GARANTIA
Standard Features:
Abrasive belt size: 40” x 75”
Motorized Table Lift
Variable Speed Conveyor, inverter drive
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
Heavy Duty JackscrewTable Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V or 460 Volt, 3-Phase
One year Industrial Warranty for parts
NOTE
Prices are for 208-230 VOLTS
Total amps 130 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION:
If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL:
WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
Specifications: Model FP-4075CB
Max. Part Width 40”
Abrasive Belt Size 40” x 75”
Contact Roller Size 8” Dia.
Passline Height 34” – 40”
Max. Thickness Capacity 6-1/8”
Conveyor Drive Speeds 8-40 FPM
Infeed Conveyor Length 20”
Dust Collector Capacity 3,000 CFM
Motor for first sanding belt head 15 HP, 230V or 460V, 3-Ph
Motor for second sanding brush head 15 HP, 230V or 460V, 3-Ph
Conveyor Motor 2 HP, 230V or 460V,3-Ph
Table Lifting Motor 1 HP, 230V or 460V, 3-Ph
Net Weight, approx. 7,650 LBS
Machine Dimensions, LxWxH 126” x 98” x 77”
OPTIONAL ACCESSORIES
Model WDC-FP40CC Wet Dust Collector # WDC-FP40CC, 7.5 HP
Heavy Duty Ducting Package # HDDP-4085CC
