ID: 1177
Open
Description

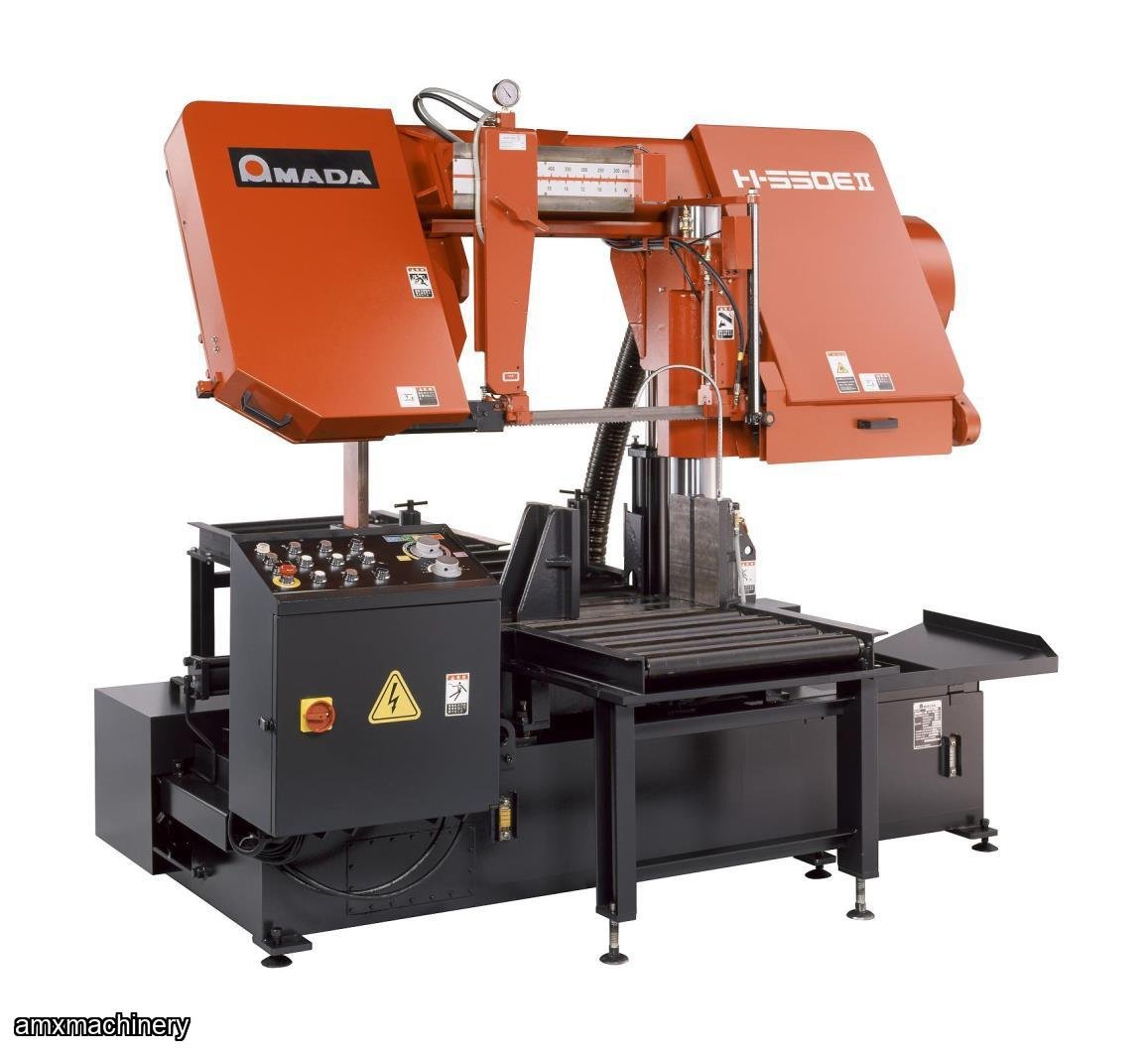

PARTE: 2AA-H550EII – SIERRA CINTA – CAPACIDAD 21.6” – AMADA
NUEVA CON GARANTIA
Machine Specifications
Cutting Capacity Round (Diameter) 7.87"-18.90"
Rectangle (W x H) 21.65" x 18.90"
Work Load Capacity 4,409 lbs.
Saw Blade Dimensions (L x T x W) 16' x 0.050" x 1.5"
Blade Speed Inverter Blade Speed Control
Saw Blade Motor 7.5 HP
Hydraulic Pump Motor 2 HP
Cutting Fluid Pump Motor 1/2 HP
Voltage Required*
AC220V±10%, 3 PH, 60 Hz
*All Other Voltages Require a Transformer
Power Requirement 10 kVA
Machine Dimensions
Head Up Position 107.2" x 72.8" x 80.9" (W x L x H)
Head Down Position 107.2" x 72.8" x 68.7" (W x L x H)
Table Height 26.7"
Machine Weight 4,629.8 lbs.
Machine Standard Features
Light Beam Marking
Wheel Cover Limit Switch
Cutting Depth Indicator
Motion Detector and Double Split Vise
H550EII Model - H550EII with Machine Standard Features
Blade SVGLB 1.5" x 0.050" x 3/4 TPI x 16´ (start-up blade)
OPTIONAL ITEMS
6' Dead Roller Table Free Standing
10´ Dead Roller Table free standing
Extended warranty - additional year in parts
