ID: 2281
Open
Description

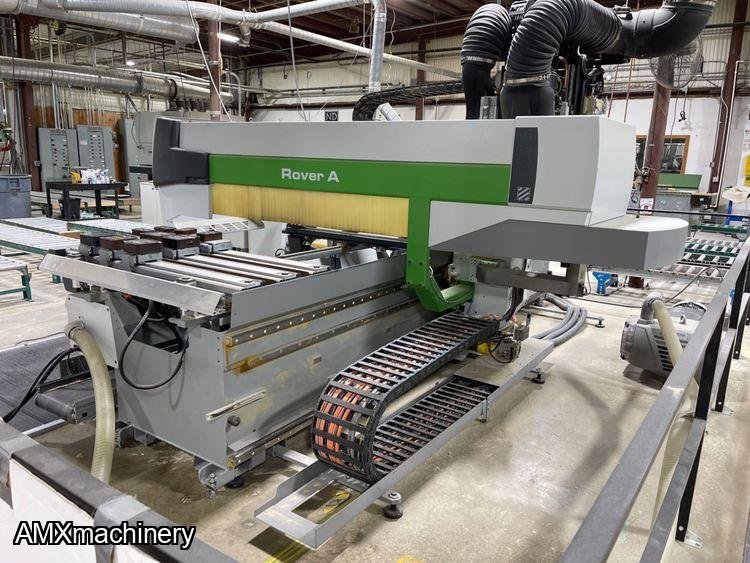

PART: 12525-E - CNC MACHINING CENTER - ROVER A 1332 ATS
Year: 2012
Specifications:
Working Field:
X - Axis: 3280mm = 129.1"
Y - Axis: 1320mm = 52"
Z - Axis: 170mm = 7"
6 = ATS Panel Support Rails
Biesse's ATS - auto locating pods
Panel Lift Supports for Loading & Unloading of Sheets
Multi Zone Working Areas
Front, Rear & Side Stops
17.7 HP HSD Electrospindle - HSKF63
12 Position Rotary Tool Changer
BH 17L Boring Head w/ quick change system
10 - Vert. Spindles - 7 in X & 3 in Y
3 - Horz. Spindles - 2 in X & 1 in Y
Saw Blade Unit 120mm
Auto Lubrication
Remote Keyboard Controls
PC Driven XP600 Control
Windows XP Operating System
PC Computer w/19" Color Monitor
CD -ROM Reader
20 GB Hard Disk w/Keyboard & Mouse
Becker Vacuum Pump
B-Solid Software Included
Equipped With:
CNC Controls
12 position ATC
17 HP Router Spindle
6 automatic adjusting rails
saw blade unit
boring unit
tooling and accessories
