PART: 12172 – COPY LATHE - LOCATELLI BIG ARRIET

PART: 12172 – COPY LATHE - LOCATELLI BIG ARRIET

USED – GOOD CONDITIONS

Fully operationally

Over $9,000 in steady rests and tooling

Max. capacity  4" dia. x 6" length

Sequence as follows:

roughing knife

steady rest

traveling roughing knife

second roughing pattern knife

finishing pattern knife

parting knife

Also ....if needed

end boring bit or formed bit

second end boring bit or formed knife with side sliding movement

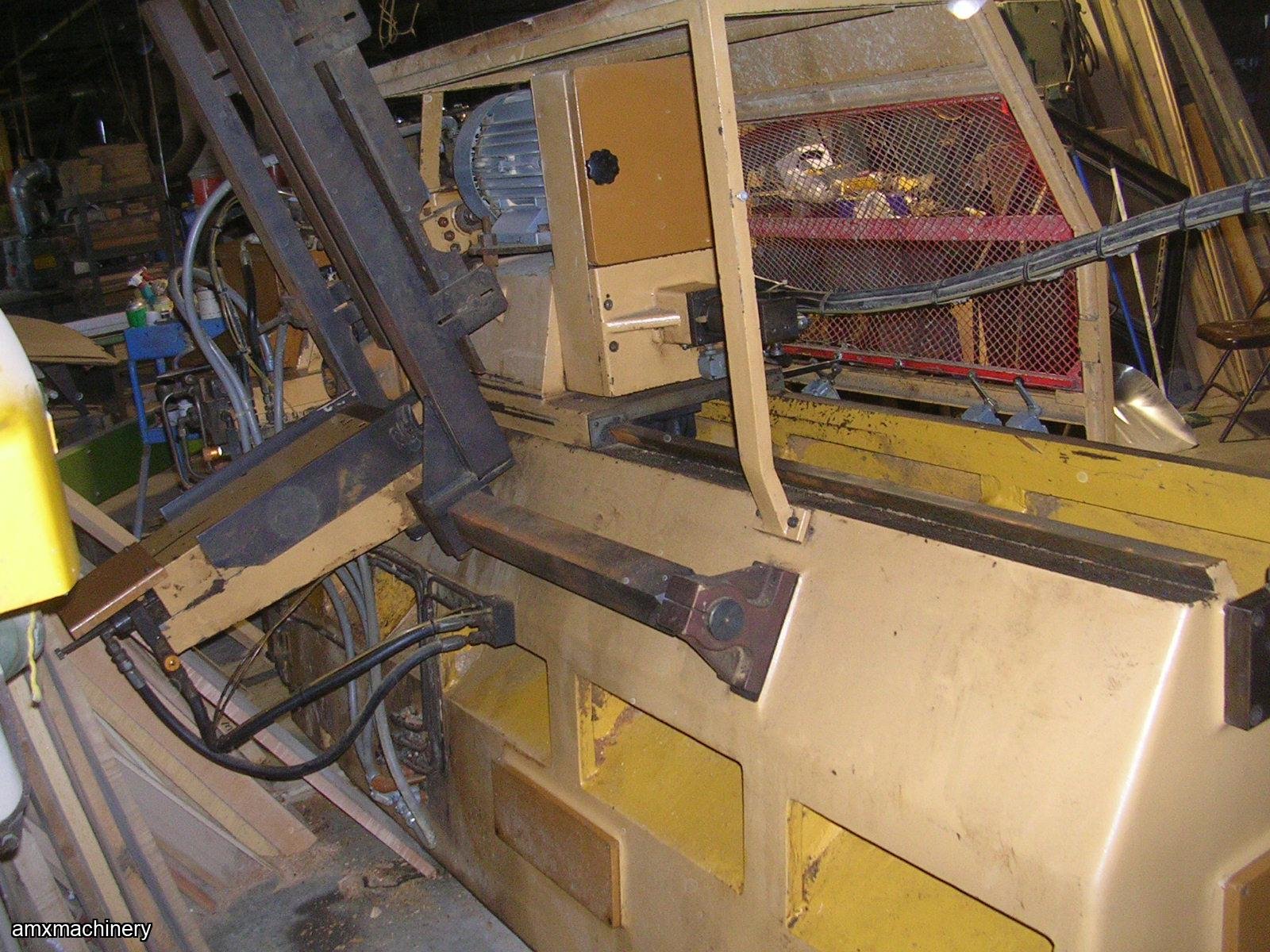

Locatelli Dimensions: 10’ 6” Long x 6’ wide x 6’ tall

Weight aproximate: 5,500 lbs.

Automatic Cycle: hopper feeds squares or round blanks into chuck

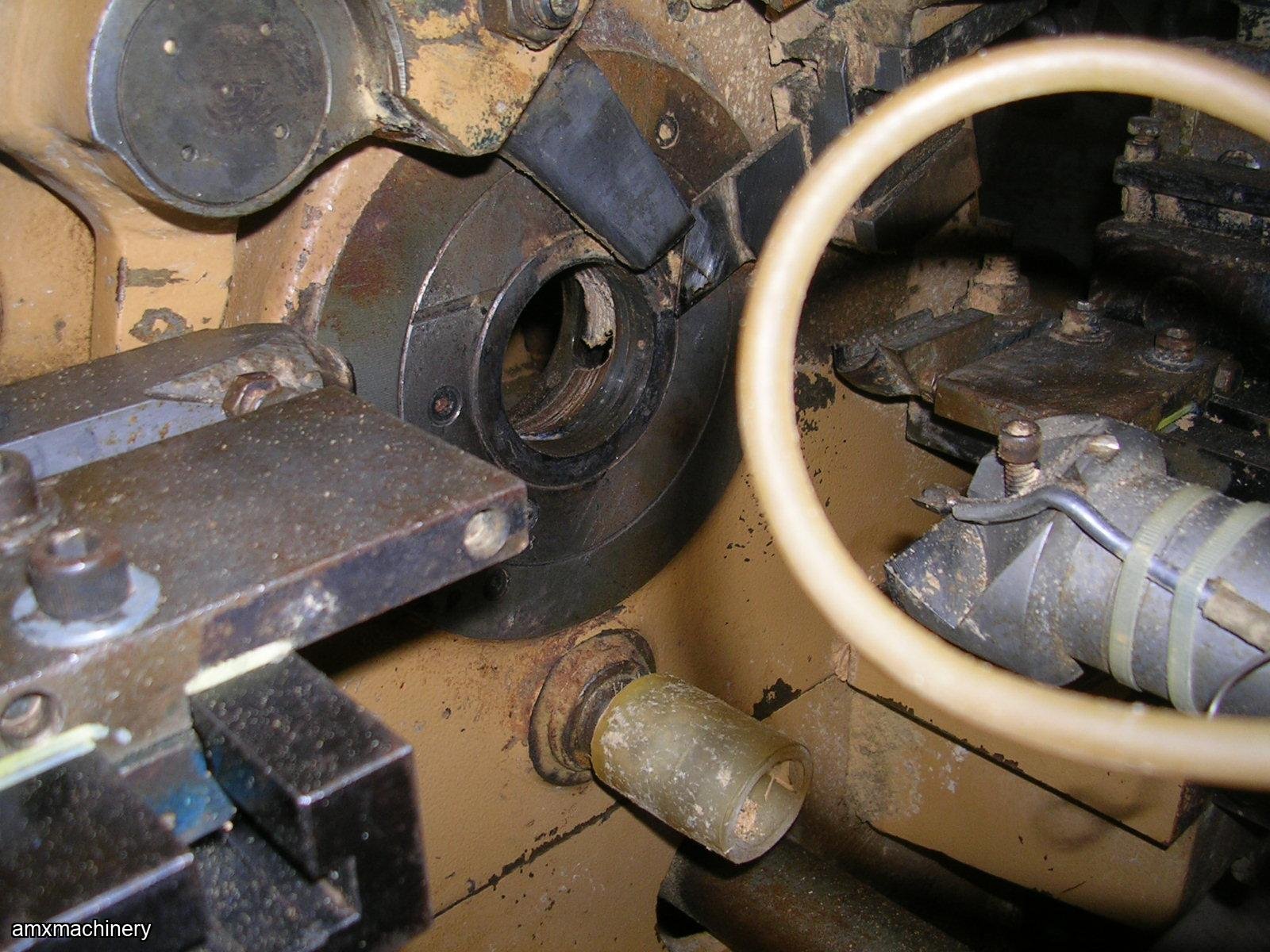

Station #1...blank is advanced...first trim knife... trims the blank.. to fit thru hollow chuck/steady rest

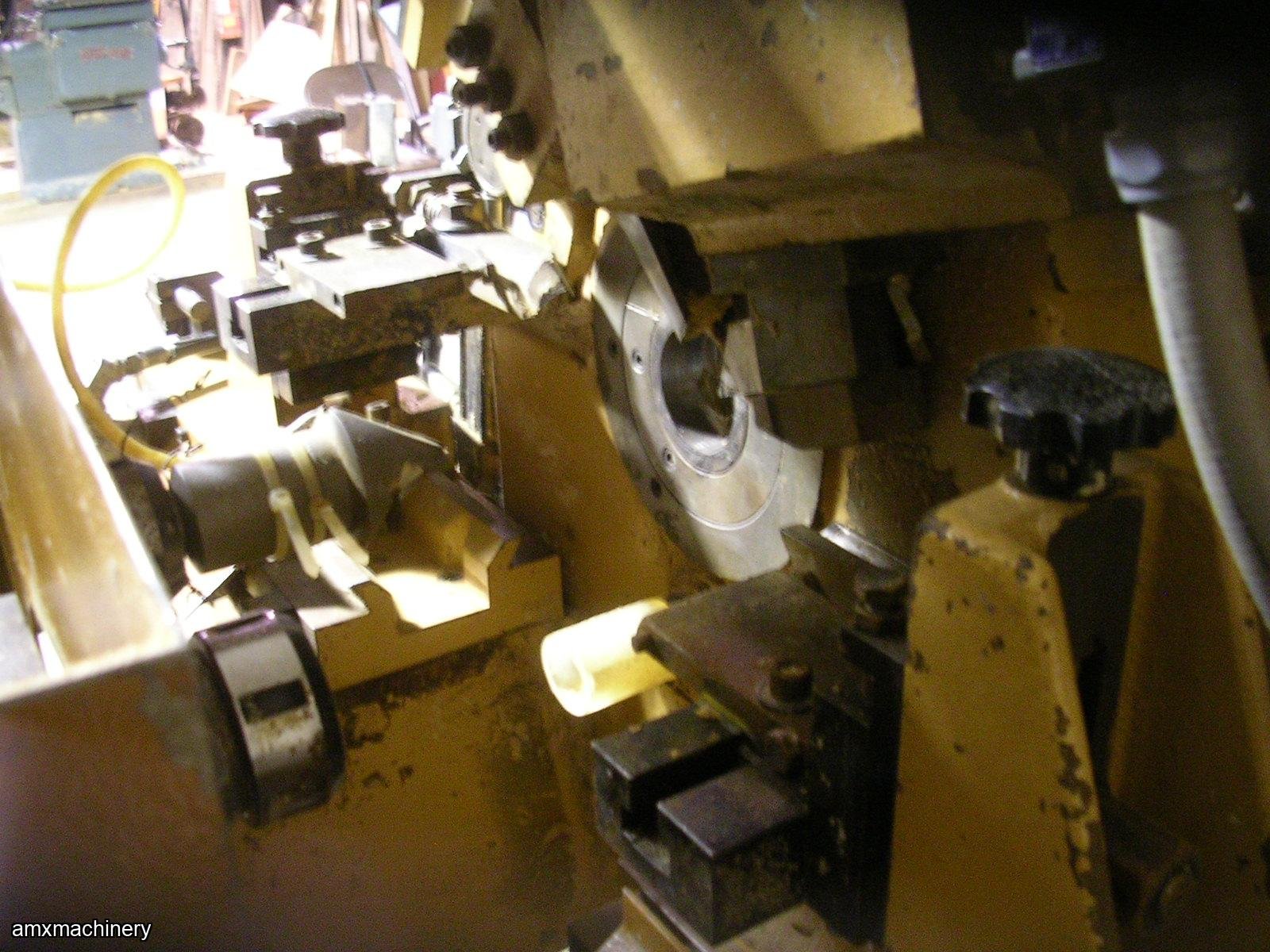

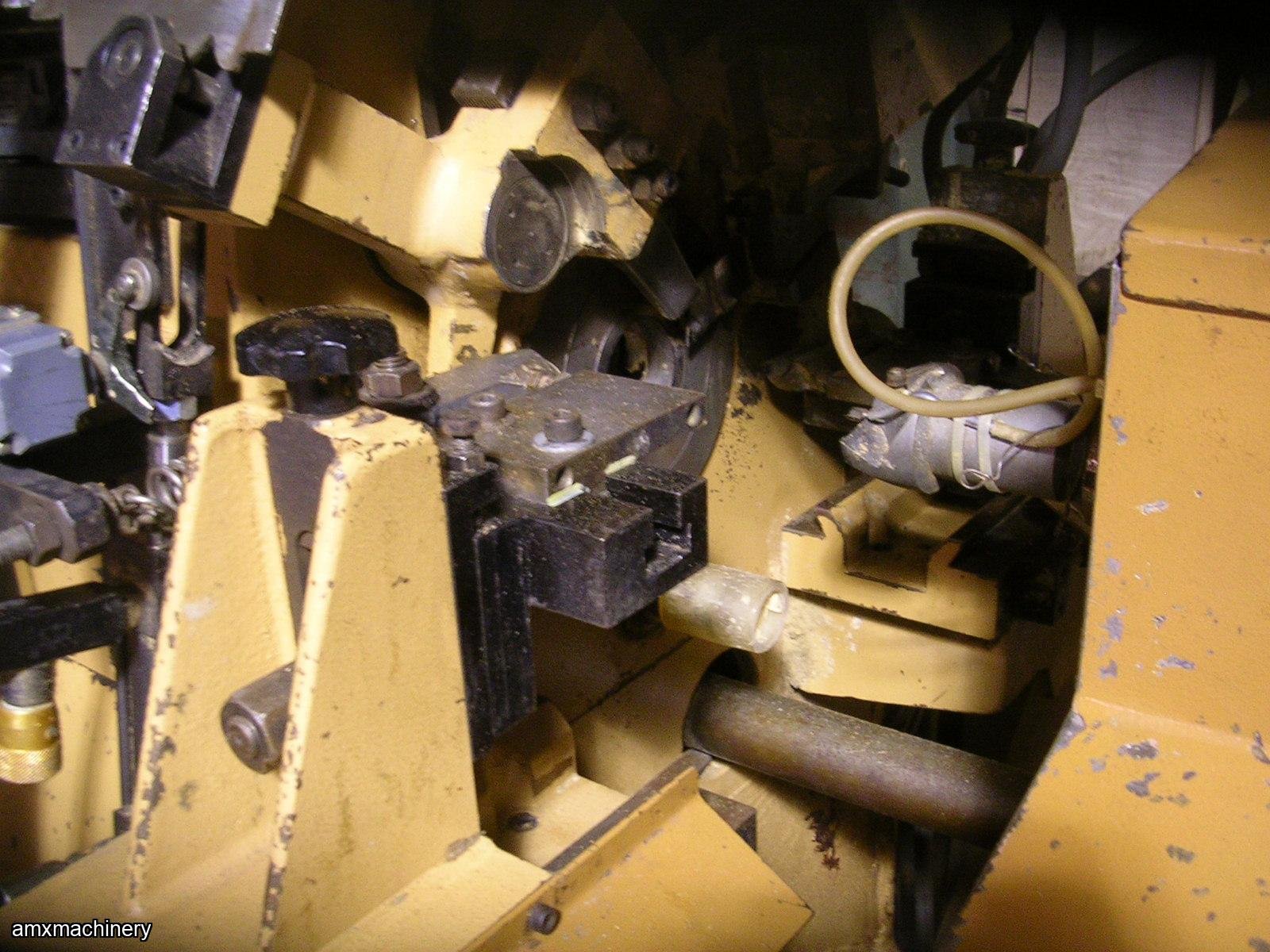

Station #2...1 roughing knife follows template...to rough to basic shape

Station #3...1 finishing knife makes the first finish cut

Station #4...1 finishing knife - set slightly deeper - makes finish cut

Station #5... and  #6... end boring or end shaping  - if needed

Station #7... parting tool... mills or cuts off the finished part..finish part drops

Head stock advances to scheduled stop...cycle continues

Production rate..300-450 parts per hour - depending on part to be milled...

All or some of the stations can be used as needed
