Identificador: 2416
Abierta
Descripción

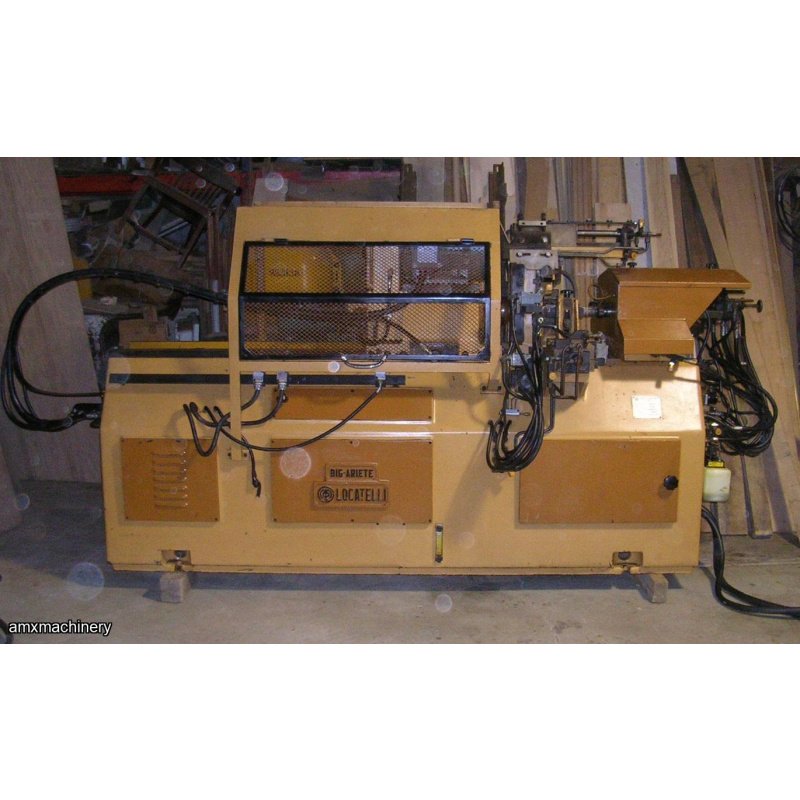

PART: 12172 – COPY LATHE - LOCATELLI BIG ARRIET
USED – GOOD CONDITIONS
Fully operationally
Over $9,000 in steady rests and tooling
Max. capacity 4" dia. x 6" length
Sequence as follows:
roughing knife
steady rest
traveling roughing knife
second roughing pattern knife
finishing pattern knife
parting knife
Also ....if needed
end boring bit or formed bit
second end boring bit or formed knife with side sliding movement
Locatelli Dimensions: 10’ 6” Long x 6’ wide x 6’ tall
Weight aproximate: 5,500 lbs.
Automatic Cycle: hopper feeds squares or round blanks into chuck
Station #1...blank is advanced...first trim knife... trims the blank.. to fit thru hollow chuck/steady rest
Station #2...1 roughing knife follows template...to rough to basic shape
Station #3...1 finishing knife makes the first finish cut
Station #4...1 finishing knife - set slightly deeper - makes finish cut
Station #5... and #6... end boring or end shaping - if needed
Station #7... parting tool... mills or cuts off the finished part..finish part drops
Head stock advances to scheduled stop...cycle continues
Production rate..300-450 parts per hour - depending on part to be milled...
All or some of the stations can be used as needed
Pago y Devoluciones
- Forma de pago
- Bank Wire Transfer
