AMXmachine1
Series Sander
PARTE: 2LA-5000 -Series SanderCan be configured to sand the top, bottom or sides of parts utilizing a chain driven roller feed system. It has a fixed height roller conveyor.fully customizable to suit shop needsdesigned with a small footprintideal for sanding long thick partsruggeddependable
AMXmachine1
Series Sander
PARTE: 2LA-6000 - Series SanderWill brush sand and/or wire brush parts with standard widths from 25 to 73 inches. It has 1 to 6 spindles which will accommodate sanding or wire brushes up to 14 inch diameter. It has a fixed height conveyor and accommodates parts up to 9 inches thick.fully customizable to suit shop needsdesigned with a small footprintideal for sanding long thick partsruggeddependable
AMXmachine1

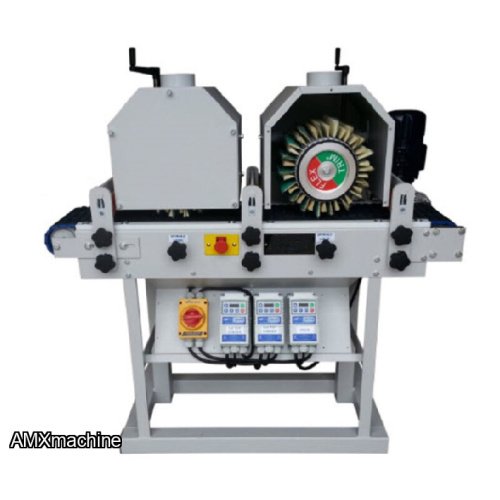

Profile Sander
PARTE: 2LA-150 -Profile SanderThis basic machine fills the need for a lower cost profile sander to sand raised panels, door edges and work pieces that do not require a tilting arbor. It features an inverter controlled 3 phase motor, variable speed, and vertical adjustment.lower cost profile sander
AMXmachine1
Profile Sander
PARTE: 2PI-220 - LIJADORA DE CANTOSfeatures two counter-rotating spindles to be used with brush type sanding wheels. This allows parts to be sanded without noticeable rounding over on corners. The sanding technique is to sand the left corners on the right sander and the right corners on the left sander. This method has the brushes formed to the profile as they go over the corners.designed for flexible brushes2 upper and lower sanding headstable moves up and down, allowing the user to sand certa...
AMXmachine1
Profile Sander
PARTE: 2LA-230 - Profile SanderIs a two spindle machine designed for use with flexible brush type sanding wheels. The spindles adjust individually, with vertical, horizontal, tilt and rotation. It can be placed at the outfeed end of a moulder, over a table, or used to sand free-hand.designed for flexible brushesfully adjustable individually, with vertical, horizontal, tilt, and rotation.
AMXmachine1
Profile Sander
PARTE: 2LA-260 - Profile SanderIf you need to sand big or odd-shaped parts, sealer sanding or white wood sanding – this machine is for you! It features inverter-controlled variable speed spindles, and vertical adjustment.this machine can sand just about anything! not just wood and painted wood, metal too!designed for flexible brusheshandles odd-shaped parts and big parts
AMXmachine1
Profile Sander
PARTE: 2LA-360 - Profile SanderThe key to successful profile sanding is a combination of machine versatility, use of the correct abrasive medium, plus a little patience and understanding. The results are a remarkable increase in consistency, quality, and productivity.wheel tilts forward or backwardremovable fencequickly make fine adjustments
AMXmachine1
Profile Sander
PARTE: 2LA-700 - Profile SanderDesigned and manufactured for a variety of functions like destressing, polishing, denibbing, sealer sanding on wood, metal, and plastic. Sanding heads can be wire, abrasive nylon, or sanding brushes.eStop feature makes it easy for any employee to run this machine and it helps to prevent accidents.Side head sanding.Multiple top head sanding options: Anything from 2 top heads up to 4.Feeds Through Multiple Materials: wood, metal, and plasticVariable Speed Conveyor
AMXmachine1
Automatic Shaper
PARTE: 2LA-390 - Automatic ShaperIs a different concept in shapers. It’s conveyor fed, making the 390 ideal for shaping small parts which could not be fed with a conventional power feeder.A versatile shaper, with its fast and easy changeover, makes it ideal for the shop with a large inventory of profiles.User friendly; able to adjust the VFD to control sanding wheel direction and speed.eStop prevents accidents.Multiple power options.
AMXmachine1
Floor Notching Machine
PARTE: 2PI-FNX - Floor Notching MachineGreat for cabinet box/case makers who need speed when producing notched products.
AMXmachine1
Trim, Score, Saw
PARTE: 2PI -TSS - Trim, Score, SawWas designed to cut materials that are susceptible to tear out as well as pack cutting of multiple parts at the same time.Tear-out FREE! Absolutely no tear-out on the cut boardsVery safe operation for the userMore accurate than a manual chop sawFrame is designed to sit flat or tilted at 10 degree angleTigerStop ready
AMXmachine1
Panel Sizing & Squaring Machine
PARTE: 2PI-2S - Panel Sizing & Squaring MachineIs a multi-axis, mulit-function CNC horizonal machine. It is designed to size edge glued panels safely and accurately.SafeQuickAccurateSimple to use
AMXmachine1
Horizontal Bore, Dowel, and Panel Grooves
PARTE; 2PI-HPMT - Horizontal Bore, Dowel, and Panel GroovesHas a working length of 48”. This machine has a full three axis CNC control. One spindle is used for the mortise work and a separate spindle is used for tenon work. Two working zones are used, allowing for left and right hand programs.Elimination of complicated machine setupProvide a stronger productEasy assembly by providing self aligning joints
AMXmachine1
Mortise, Tenon and Haunch Machine
PARTE: 2PI-MTH - Mortise, Tenon and Haunch MachineIs a multi-function, multi-axis Horizontal Machining Center designed to machine many of the components of Kitchen Cabinets all in one machine.Efficiency – haunch, mortise, and tenon all on one machineSpeed – increased cabinet door production
AMXmachine1
Haunching Machine
PARTE: 2PI-HMJ - Haunching MachineIs a jump haunch machine for beaded face frames.Simple and user friendly interface.Small footprint.Increased production by its ability to double up parts on one cut.Ease the assembly process by providing self aligning joints.
AMXmachine
WIDE BELT SANDER - 52” WIDE - 3 HEADS
PART: 2EX- XS-3P52 - WIDE BELT SANDER - 52” WIDE - 3 HEADS
52" 30 / 30 / 25 HP Performa Series Wide-Belt Sander
Designed in
the USA especially for the American market. All of our sanders are built using
the highest quality components and construction methods such as mono-block
construction, electrical controls, and Camozzi pneumatics. So, it does not
matter whether it’s our best selling “Excess Series” or our massive industrial
“Super Series,” you can rest assured that yo...
AMXmachine
DUAL STAGE - ULTRA FINE GRINDING - HAMMER MILL - 100 & 75 HP
PART: 2SB-FGZ-240-40 - DUAL STAGE - ULTRA
FINE GRINDING - HAMMER MILL - 100 & 75 HP
New with warrantyThe compact and efficient Dual Stage Ultra Fine Grinding Wood
Hammer Mills are available in two configurations, both designed to produce the
finest finish grind from a variety of in-feed materials. The FG Series features two 13 Series Finish Grinding Wood
Hammer Mills stacked one above the other. Ideal for processing hogged wood
scrap, planer shavings, sawdust and dry wood chips, the FG S...
AMXmachine
BRIQUETTE PRESS – MOTOR 7.5 HP – DIAMETER 50 MM (1.96”)
PART:
2CA-BP-100 – BRIQUETTE PRESS – MOTOR 7.5 HP – DIAMETER 50 MM (1.96”)
Specifications: Max. Output : 140 LBS per HourHydraulic Pump: 7-1/2 HPStorage Tank Size: 39” Dia x 36” HMax. Volume of Tank: 28 CUFTFinished Briquette Diameter: 50 mmFinished Briquette Length: 1/4” ~ 5”Max. Working Pressure: 15 MP aPower: 220/440 V 3 PHMachine Size: 66” x 43” x 59”Machine Weight: 1500 LBSOptional Feed System: Dust Collector, Blower, Auger, Conveyor, Storage Tank(Training and i...
AMXmachine1
Coping Machine
PARTE: 2PI-CMJ -Coping MachineIs a machine designed for chip free coping or tenoning of either square or profiled parts without the need for a back-up piece or chip breaker. One motor with a belt is a great fit for smaller shops that don’t need to change between multiple profiles.No backer board or chip breakers requiredTear out free parts every timeAccurate spindle adjustment for tool alignmentPart stays fixed while the carriage moves
AMXmachine1
Coping Machine
PARTE: 2PI-CMJ-HSK - Coping MachineIs a machine designed for chip free coping or tenoning of either square or profiled parts without the need for a back-up piece or chip breaker. Two independent spindles with the tool changer is a great fit for medium to large shops that need to quick-change between multiple profiles per day.No backer board or chip breakers requiredTear out free parts every timeAccurate spindle adjustment for tool alignmentPart stays fixed while the carriage movesDual Air-Locki...
