ID: 2630
Open
Description

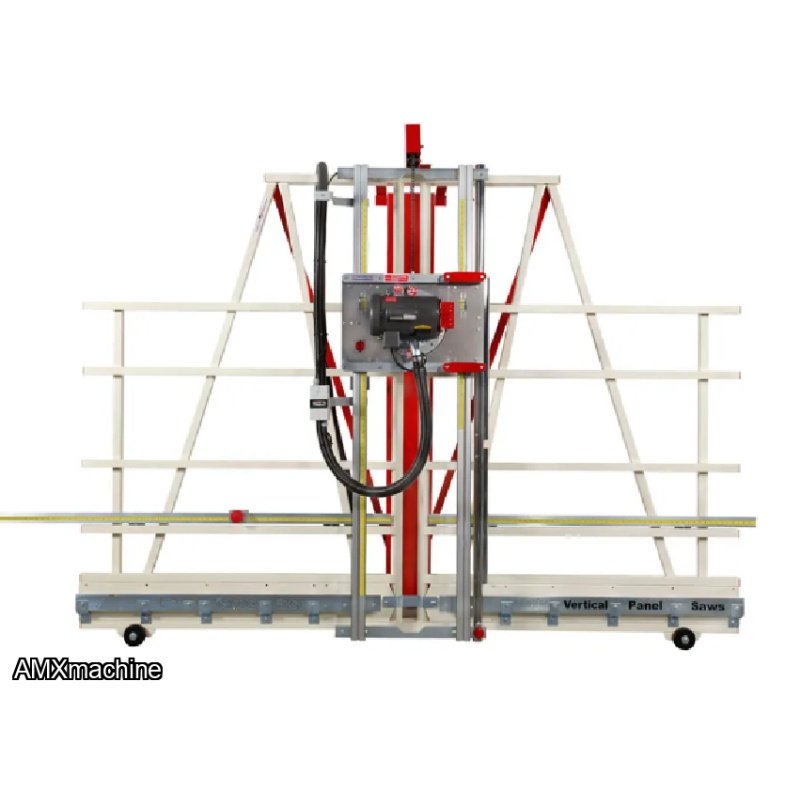

PARTE: 2SS-7000 - VERTICAL PANEL SAW - 64" HEIGHT X 120" WIDE
Heavy duty induction motors allow for cutting all day with an option of single or three phase power. All of our machines are built to last; gives you that extra motor efficiency with little to no maintenance required. Longevity is made possible by high induction motors supported by US precision machined components.

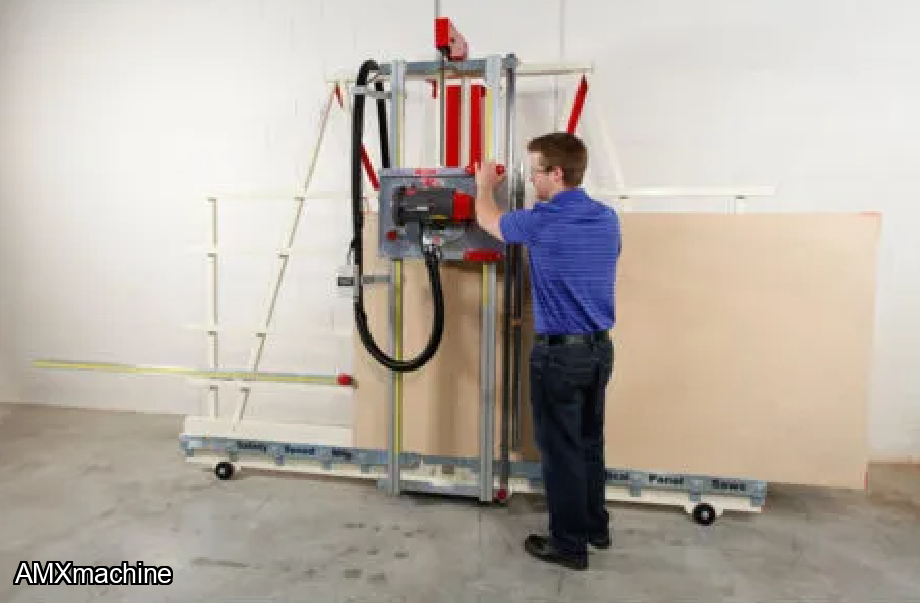

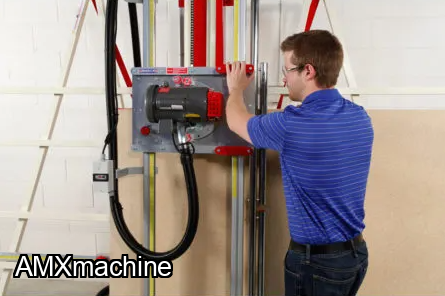

The Panel Saw cuts horizontally and vertically, within .015” straight and square, and has a maximum panel thickness of 2”. Shops with multiple operators and continuous cutting operations will see a strong return on investment with this machine.
Motor
- 2HP, 1~ 230V, 11.5 AMPS
- 3HP, 3~ 230V, 7.6 AMPS
- 3HP, 3~ 460V, 3.8 AMPS
Features Include:
- Three different high induction saw motor configurations
- Heavy-Duty welded steel frame
- Low voltage switch protection
- Saw blade
- Vertical and horizontal rulers
- Quick change from vertical to horizontal cutting
- Integrated stand
- Solid aluminum rollers
- Dust collection ready
- Hold down bar
- Enclosed counterweight
- Quick stop gauges with stop block
- Floating pressure saw foot
- Wheels
- 3 year warranty
- TUV certified to UL/CSA standards
