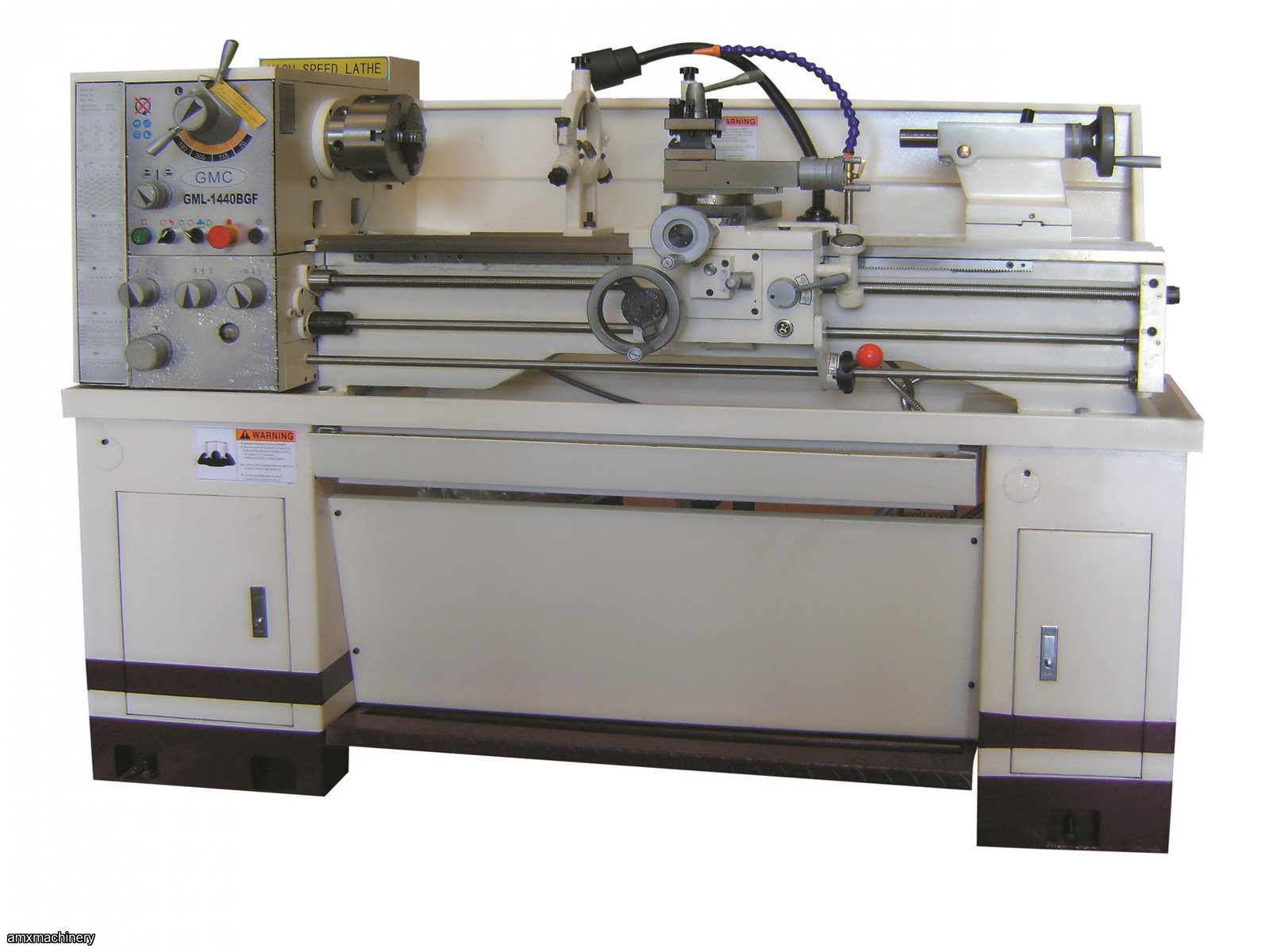

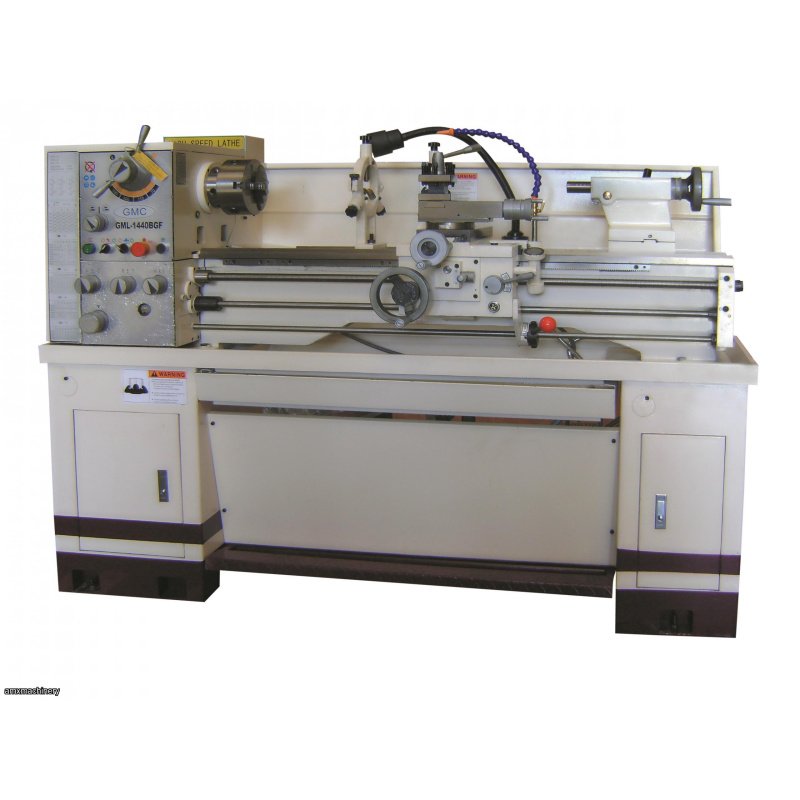

TORNO DE PRECISION PARA METAL
PARTE # 2MA-GML-1440BGF-1, 14”x40”, 1-1/2” spindle bore, 3 HP, 220V,1phase
PARTE # 2MA-GML-1440BGF-3, 14”x40”, 1-1/2” spindle bore, 3 HP, 220V,3phase
Machine Standard Features and Equipment:
• ISO 9001 certified
• Full Geared-head precision Engine Lathe with foot brake
• Quick-change gearbox with fast and easy threading set up
• Heavy Duty main motor 3HP, 220V, 1 phase
• Spindle bore 1 1/2”
• Heavy Duty spindle D1-4
• Heavy Duty guideway width 7 1/2”
• 8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000
rpm
• 56 kinds of inch threads, and 44 kinds of metric threads
• Spindle is balanced, hardened and precision ground
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year warranty for parts
Standard Equipment (free) for Heavy Duty Lathe Model # GML-1440BGF:
• 6” 3-jsw chuck with set reversible jaws
• 8” 4-jaw chuck with set reversible jaws
• 10” Face plate
• 3 ¾” large steady rest
• 2” follow rest
• Removeable gap
• Foot brake
• Coolant system
• Halogen work light
• 4-way tools post
• Full length splash guard
• (2) dead centers and (1) reducing sleeve
• Thread chasing dial
• Tool box
Optional Equipment for Heavy Duty Lathe
• 10” Drive Plate# DPD410
• Micro Carriage Stop#MCS1440
• DRO for 1440BGF, NEWALL #NW840, 2 axis,
• SINO DRO for GML-1440BGF, 2 axis,
• 5-C Hand lever type collet closer, # 5C,”JFK” USA,
• 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014
• Taper turning attachment # TA-GML1440, free installation
• 6pc ALORIS type quick change toolpost# 900-0051-200 (wedge)
• Live Center MT3 # 900-0050-03
• ½” drill chuck # 700-0102
• ½” drill chuck arbor # 700-0153
• Lathe package # 1, incl 5pc indexable carbide turning set# 2003-0003,
½ drill chuck # 700-0102, Chuck arbor # 700-0153 and 29pc Titanium
drill bit set #5000-0001T
Optional Equipment for Heavy Duty Lathe
- 10” Drive Plate# DPD410
- Micro Carriage Stop#MCS1440
- DRO for 1440BGF, NEWALL #NW840, 2 axis, free install
- SINO DRO for GML-1440BGF, 2 axis, free install
- 5-C Hand lever type collet closer, # 5C,”JFK” USA,free install
- 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014
- Taper turning attachment # TA-GML1440, free installation
- 6pc ALORIS type quick change toolpost# 900-0051-200 (wedge)
- Live Center MT3 # 900-0050-03
- ½” drill chuck # 700-0102
- ½” drill chuck arbor # 700-0153
- Lathe package # 1, incl 5pc indexable carbide turning set# 2003-0003, ½ drill chuck # 700-0102, Chuck arbor # 700-0153 and 29pc Titanium drill bit set #5000-0001T
Specifications:
| GML-1440BGF-1 GML-1440BGF-3 |
Max. swing over bed | 14” |
Max. length of workpiece / Max. length of cutting | 40” / 34” |
Max. swing over cross slide | 8-1/4” |
Max. Swing in gap | 19-1/4” |
Width of Bed | 7-1/2” |
Effective length in gap to spindle | 6-1/2” |
Effective length in gap to chuck jaws | 3-5/8” |
Spindle bore | 1 ½” , D1-4 |
Taper of spindle center | M.T.# 5 (MT5/MT3) |
Spindle speeds | 70-2,000 rpm / 8 steps |
Longitudinal feeds | 0.00168-0.11750 IPR, 24 kinds |
Cross feeds | 0.00046-0.03231 IPR, 24 kinds |
Inch threads | 4-112 TPI, 56 kinds |
Metric threads | 0.1-7.0 mm , 44 kinds |
Diametral Pitch threads | 16-112 DP, 32 kinds |
Module threads | 0.1 – 1.75 mm , 34 kinds |
Max. travel of top slide | 4-1/4” |
Max. travel of cross slide | 7-1/4” |
Spindle speeds, 8 steps | 70/115/190/300/460/755/1255/2000 rpm |
|
|
Diameter of tailstock quill | 1-1/2” |
Max. travel of tailstock quill | 4” |
|
|
Taper of tailstock quill center | M.T. # 3 |
|
|
Main motor | 3HP, 220V, 1phase 3HP, 220V, 3 phase |
Coolant pump | 1/16HP, 220V, 1phase |
Net weight, approx. | 1,730 LBS |
Overall dimensions, LxWxH | 70” x 35” x 59” |
