ID: 1176
Open
Description

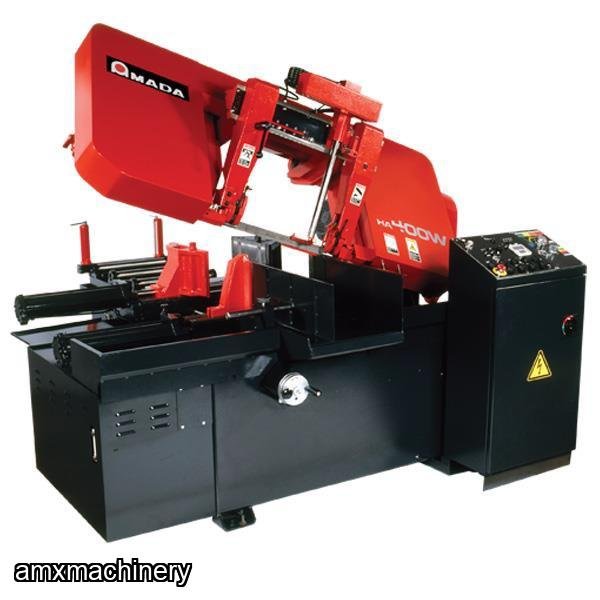

PARTE: 2AA-HA400W – SIERRA CINTA – AUTOMATICA – CAPACIDAD 16.5” - AMADA
NUEVA CON GARANTIA
Machine Specifications
Cutting Capacity Round (Diameter) 1.18"-16.54"
Rectangle (W x H) 16.3" x 16.3"
Work Load Capacity 5,511 lbs.
Material Index Stroke 19.6" (Maximum 9 times index)
Index Length 0.394" - 177"
Saw Blade Dimensions (L x T x W) 15' x 0.050" x 1-1/2"
Blade Speed 56-295 ft./min, 60 Hz, Step less
Saw Blade Motor 7.5 HP
Hydraulic Pump Motor 2 HP
Cutting Fluid Pump Motor 0.25 HP
Voltage Required AC220V±10%, 3 PH, 60 Hz
Or AC440V, 3 PH, 60 Hz
Machine Dimensions
Head Up Position 89.5" x 106.2" x 95.5" (W x L x H)
Head Down Position 89.5" x 106.2" x 62.0" (W x L x H)
Table Height 31.5"
Machine Weight 4,851 lbs.
Machine Standard Features
Variable Blade Speed Chip Conveyor
Pressure Flow Valve Motion Detector
Blade Break Limit Switch Piece Counter
9 Times Multi Index 2 way-Opening Vise
Out of Material Switch Operator's Console
HA400W Model - HA400W with Machine Standard Features
Blade SVGLB 1.5" x 0.050" x 3/4 TPI x 15´ (start-up blade)
OPTIONAL ITEMS
6' Dead Roller Table Free Standing
10´ Dead Roller Table free standing
Vertical clamps
Vise Pressure Control
Extended warranty - additonal year in parts
