PART: 2EX- XS-3P52 - WIDE BELT SANDER - 52” WIDE - 3 HEADS

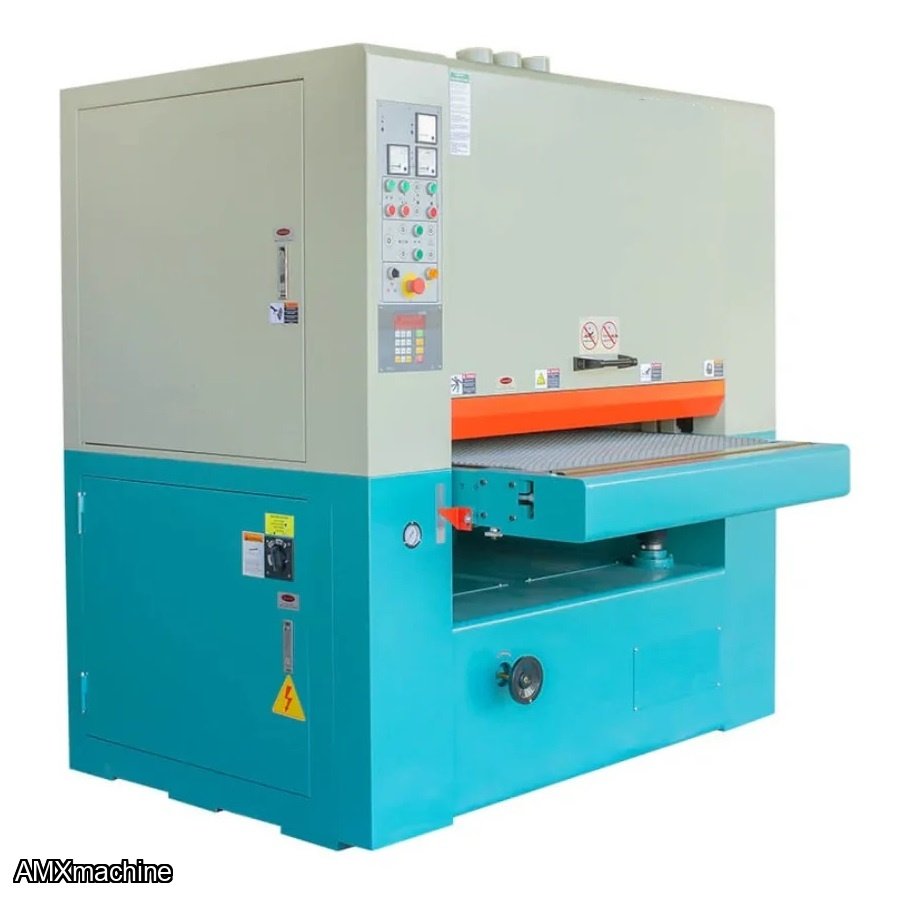

52" 30 / 30 / 25 HP Performa Series Wide-Belt Sander
Designed in the USA especially for the American market. All of our sanders are built using the highest quality components and construction methods such as mono-block construction, electrical controls, and Camozzi pneumatics. So, it does not matter whether it’s our best selling “Excess Series” or our massive industrial “Super Series,” you can rest assured that your sander will be there for the long haul.
75″ Belt Length
Over thickness safety device
Infeed bed rollers
Digital thickness controller
Individual amp meters

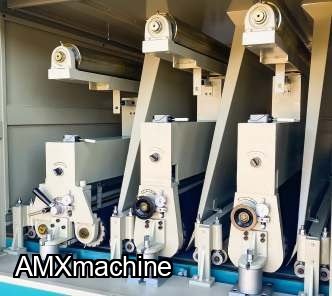

Disc brakes on sanding heads
Telemecaique electrics
Camozzi pneumatics
Variable speed drive system
Specifications:
75″ Belt Length
Over thickness safety device
Infeed bed rollers
Digital thickness controller
Individual amp meters
Disc brakes on sanding heads
Telemecaique electrics
Camozzi pneumatics
Variable speed drive system
Specifications:
Horsepower: 30/30/25 HP
Voltage: 230V or 460V Optional
Phase(s): 3PH
Belt Size: 52" x 75"
CFM Requirement: 6500
Main Motors: 30 / 30 / 25 HP
Feed Motor: 3 HP
Elevation Motor: .5 HP

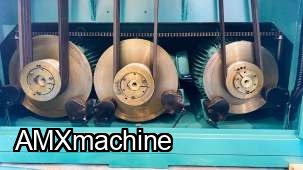

Contact Drum Size: 8" / 8" / 5"
Conveyor Speed (ft/min): 15 - 50
Max Thickness: 6"
Min Thickness: 1/8"
Width: 52"
Head Count: 3
Amps (220V / 460V): 233A / 117A
Weight: 8100
