Description

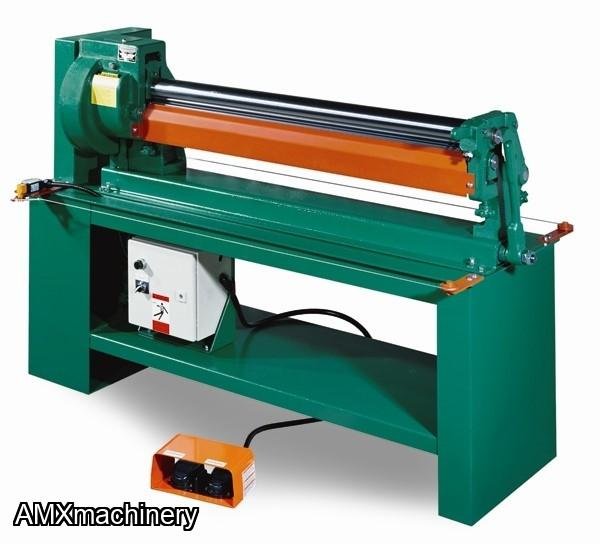

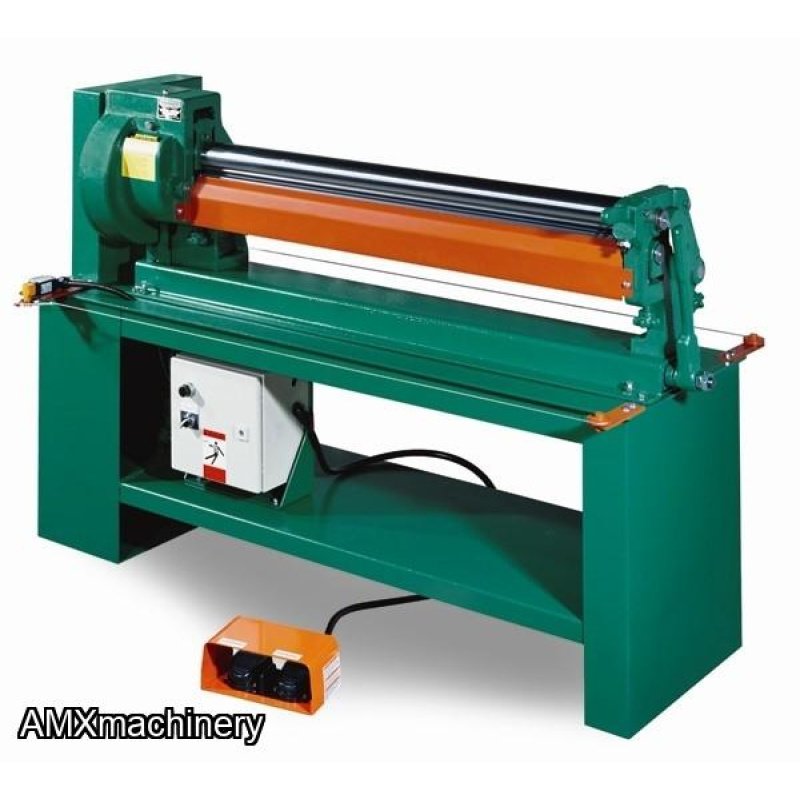

ROLADORA DE METAL
Is a heavy-duty, affordable, production tool for forming curved parts and tubes in 16-gauge and lighter sheet metal. The roll has three gear-driven rolls that ensure even starting and feeding of materials. The gearing features a 4:1 reduction ratio for ease of operation of heavy materials. All gears are fully enclosed for safety and protection from the elements. The roll drive is controlled by a toggle-action, shrouded foot switch for instant forward and reverse action. The drive motor is equipped with an electro-magnetic brake to prevent roll creep and over-forming.
Electrical and operator safety features include a full-length, front and back wire cable safety mechanism which instantly stops the rolls when tripped, two magnetic motor starters, fully enclosed electrical box with pilot light, insulated reinforced conduit for all wiring and fully enclosed drive train.
|
Maximum Forming Capacity, Mild Steel 16 gauge/1,6mm |
|
Maximum Forming Capacity, Stainless Steel 20 gauge/1,0mm |
|
Maximum Forming Length 49 in / 1244mm |
|
Minimum Forming Radius 1-1/2 in. / 38mm |
|
Wire grooves 3/8, ½, 5/8 in. / 9.5, 12.7, 15.8 mm |
|
Diameter of rolls 3 in. / 76mm |
|
Gear Ratio 4 : 1 |
|
Roll Speed 22 rpm |
|
Motor-230/460v, 3-phase, 60Hz ¾ hp |
|
Dimensions LxWxH 77 x 29x 50 in. |
|
Shipping Weight 1400 lbs / 635 kg |
