ID: 2191
Open
Description

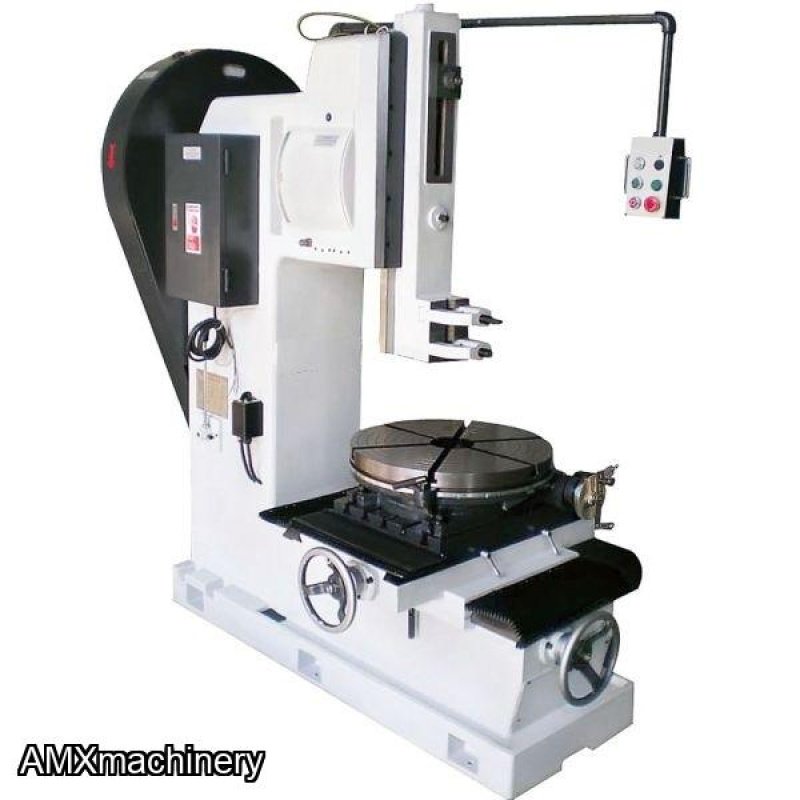

PARTE: 3EA -TS300K - ESCOPLO - RECORRIDO 300 MM - MESA 560 MM - 5 HP
Nueva con garantía
Features
Max.keyway width per cut :16mm
Max. stroke : 300mm
No. of stroke per minute: 8 steps
(Low: 22,26, 31, 39spm ; High :44,52,61,78 spm)
- Spindle motor : 5HP (4P/8P)
- Working table : Dia. 560mm
- Inner hole dia. of table : Dia. 75mm
Standard Accessories
1. Lubrication system
2. Rotary table
3. Tool box & tools
4. Rubber chip cover (4pcs/set)
5. Chip box
Optional Accessories
2. SK-9 Strong 3 Jaw scroll chuck 1PCE
SK-12 Strong 3 Jaw scroll chuck 1PCE
4. 52pcs clamping kits set 1SET
5. Coolant pump & chip tray 1PCE
6. D.R.O system for 2 axes & monitor 1PCE
7. Surcharge for wooden case 1PCE
8. CE MARK 1PCE
10-1. LED Lamp 1PCE
12. Mechanical auto. tool backing off device 1PCE
14. HSS Blade grinder SLTG-520 1PCE
Packing size:2000L x 1260W x 1960H (mm)
N.W./G.W.:1600/1800kgs w/crate (w/chip tray
FUMIGATION FEE FOR WOODEN PACKAGE 1LOT
