ID: 2308 Open

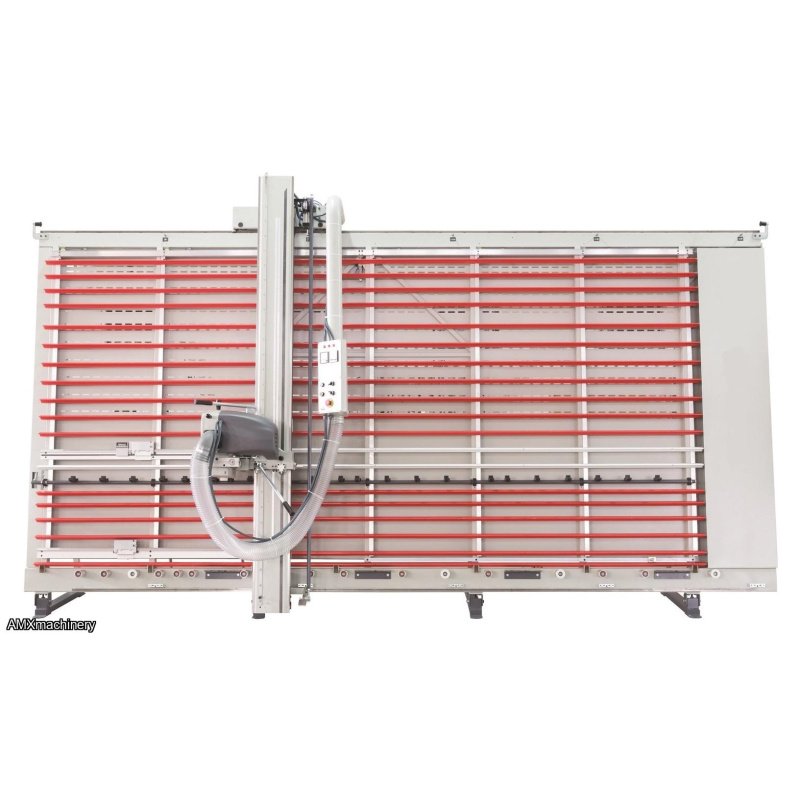

PART: 4BA-DPM-ED-2141-E – VERTICAL PANEL SAW - CAP. 2100 MM X 4100 MM X 60 MM

PART: 4BA-DPM-ED-2141-E – VERTICAL PANEL SAW - CAP. 2100 MM X 4100 MM X 60 MM

AMXmachine

Contact Seller

Description

PART: 4BA-DPM-ED-2141-E – VERTICAL PANEL SAW - CAP. 2100 MM X 4100 MM X 60 MM - BALA

New with warranty

Demo model with about 30 hours on it

Specifications

- Comes with digital readouts on the vertical and horizontal axis, readout in decimal inches or mm

- Processing sheets both horizontally and vertically

- Cutting height is 2100mm

- Cutting length is 4100mm (161") Actual overall length of machine is 16’.4”

- Weight 2400 lbs

- Thickness of cut is 0-60mm

- Comes with main blade and scoring blade

- Motor hp is 4.0 (3 kW) three phase, 208/230 volts

- Needs to be hooked to external dust collection

- Moveable front panel supports. (Pneumatic automatic movement up and down using sensor system

- Bottom supports are metal wheels

- Machine comes with 1 year warranty

- Pneumatic locking of gantry and head

- Voltage is 230/208 volts, 3 phase.

- Dual scales, imperial and metric

- Gantry locks in position every 40" for vertical cuts

- Has a mid-shelf supports for cross cutting narrow boards, instead of putting on bottom rollers
