ID: 2277
Open
Description

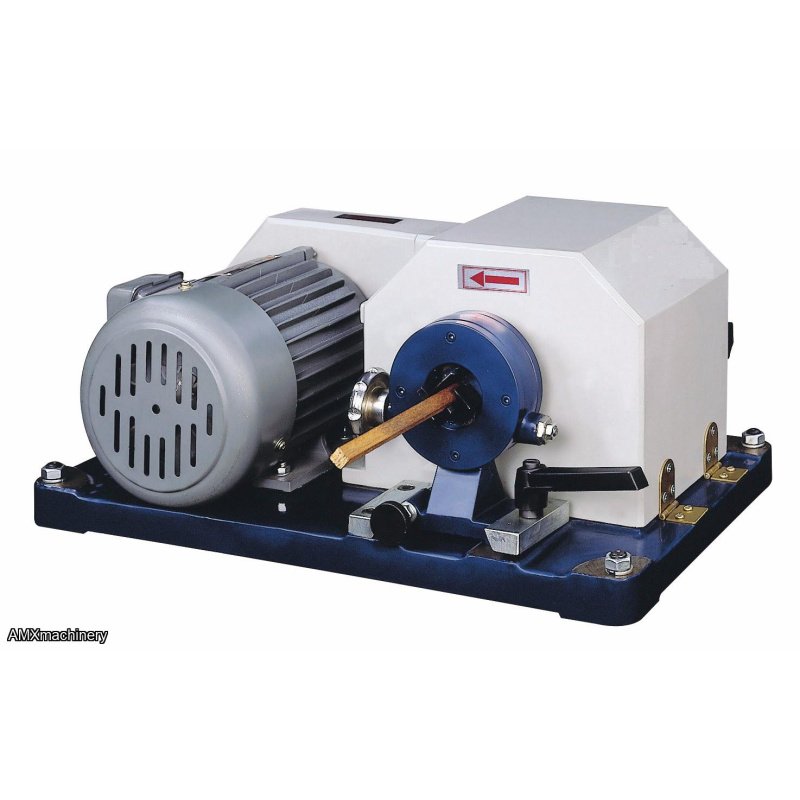

PART: 2CA-DM77-E - DOWEL MILLING - 1/4" - 3/4" DIAMETER
Self-feeding and easily changeable cutters.
Makes dowels from 6 MIM - 18 MIM (1/4" to ¾”)

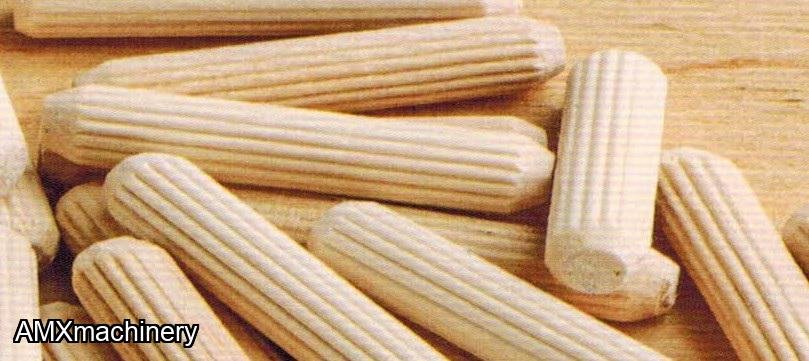

Dowels stock cut with spiral grooves for gluing.

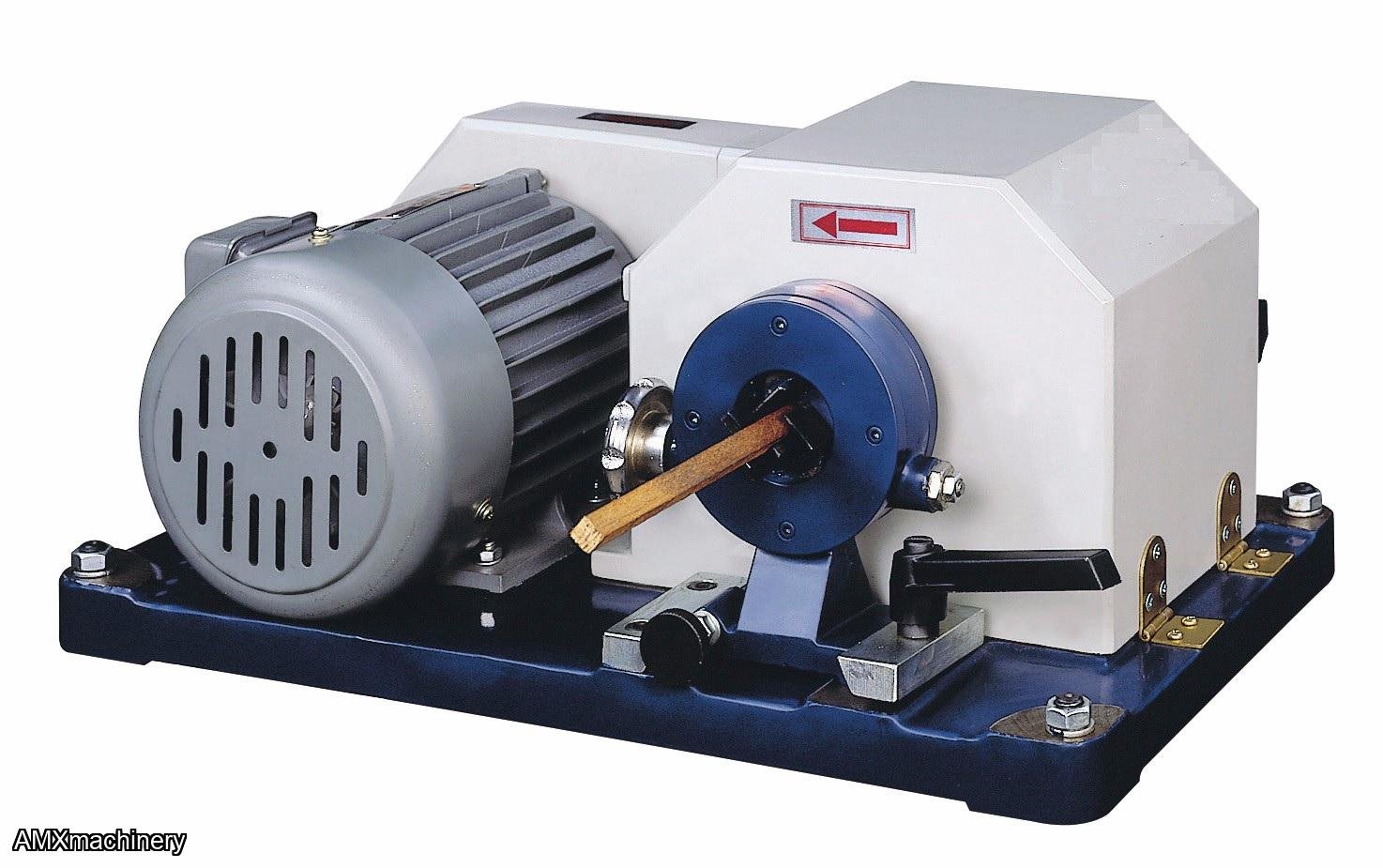

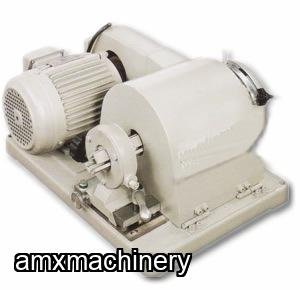

The DM-77 mills wooden dowels from square sticks.
Powered by heavy-duty 1 HP motor and produces dowels at the rate of 23 to 27 feet per minute.
Specially designed knives make sharpening easy.
SPECIFICATIONS:
Diameter Range: 1/4" ~ 3/4"
Motor: 1 HP, 1 PH, 115V
Working Speed: 24 ~ 28 FPM
Minimum Working Material: Length 8-3/4"
Packing Size: 27" x 19" x 15"
N.W.: 128 LBS
G.W.: 187 LBS
