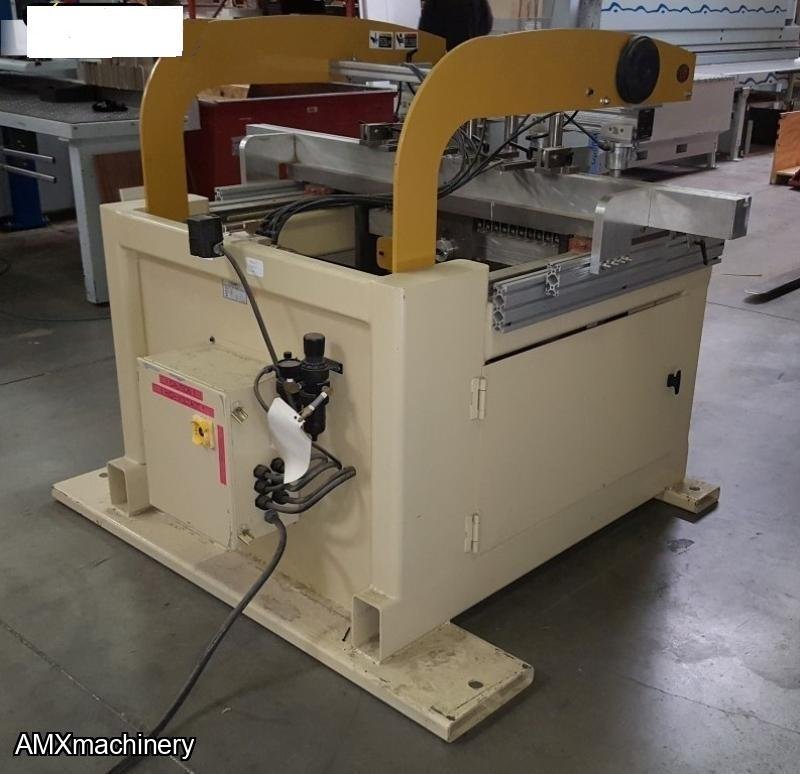

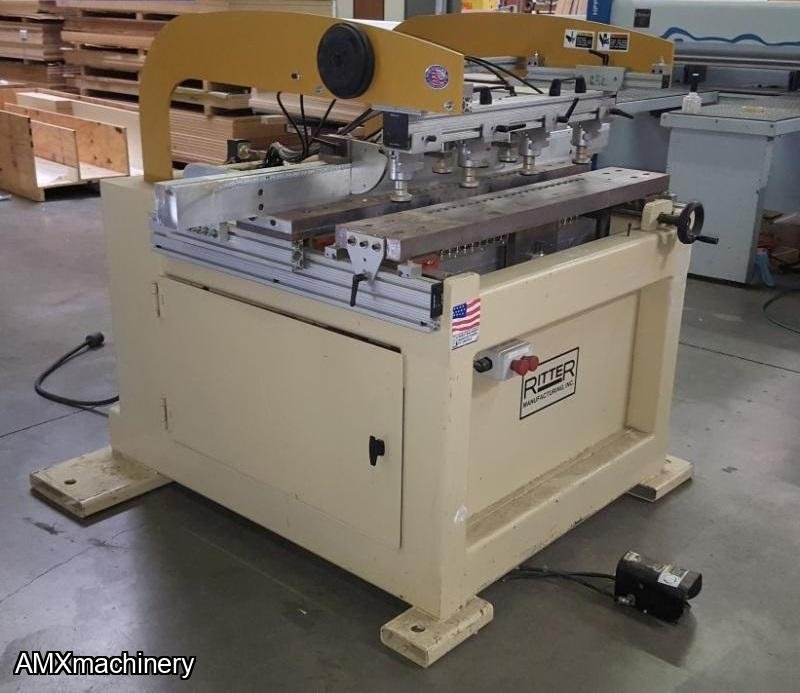

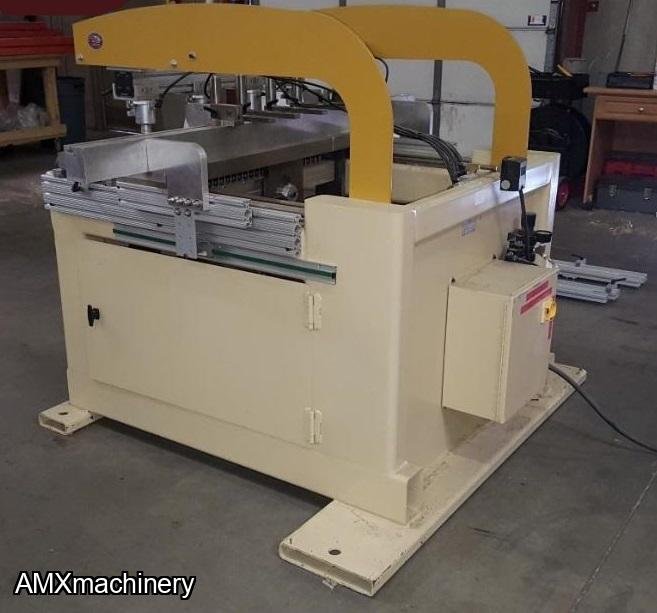

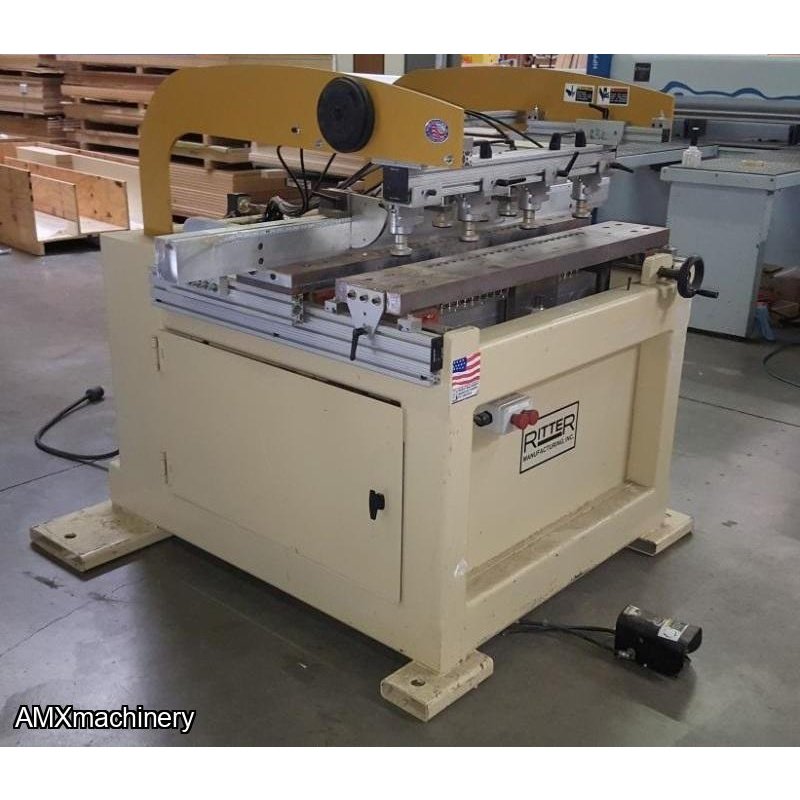

PART: 12584 – BORING MACHINE - RITTER R246
USED – VERY GOOD CONDITION
2 Bottom vertical drill heads, each with 23 gear driven spindles on 32 mm centers 24 RH and 22 LH rotation, 2 - 3 HP motors, 3,450 RPM spindle speed.
Row & boring head spacing adjustable from 5" - 24" with mechanical digital readout, pneumatic cylinder drill head advance, 0" - 1-1/2" adjustable stroke and 3-position turret depth control.
Equipped with: 4 Overhead adjustable pneumatic holddowns on each head, 72" long "traveling" back fence system with 0" - 3" adjustment from rear head spindle center line, hand wheel adjustable - fence line & rear head move together or the rear head can be manually adjusted independent of the rear fence line.
2 Adjustable Heavy Duty material flip stops and 2 - 53" left & right fence extensions each with 3 adjustable material stops.
Each head with 49" long x 8" wide panel support table - front table moves with front drill head, above table tool change positions.
Includes & features: 10 mm Dia. spindle collets, single or double row drill head stroke control, foot pedal activated and magnetic push button motor starter with overload.
Dimensions: 72" L x 60" W x 52" H
Weight: 3,040 Lbs - estimate
Elect./Voltage: 220V, 60 Cy, 3 Ph.

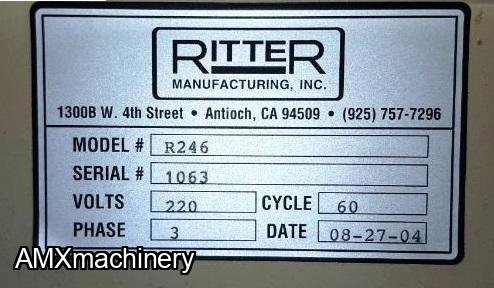

Year MFG: 2004
