ID: 2576 Open
LIJADORA 63'' x 85'' 40 HP
LIJADORA 63'' x 85'' 40 HP
LIJADORA 63'' x 85'' 40 HP
LIJADORA 63'' x 85'' 40 HP
LIJADORA 63'' x 85'' 40 HP
LIJADORA 63'' x 85'' 40 HP
LIJADORA 63'' x 85'' 40 HP

LIJADORA 63'' x 85'' 40 HP

AMXmachine1

Contact Seller
Description

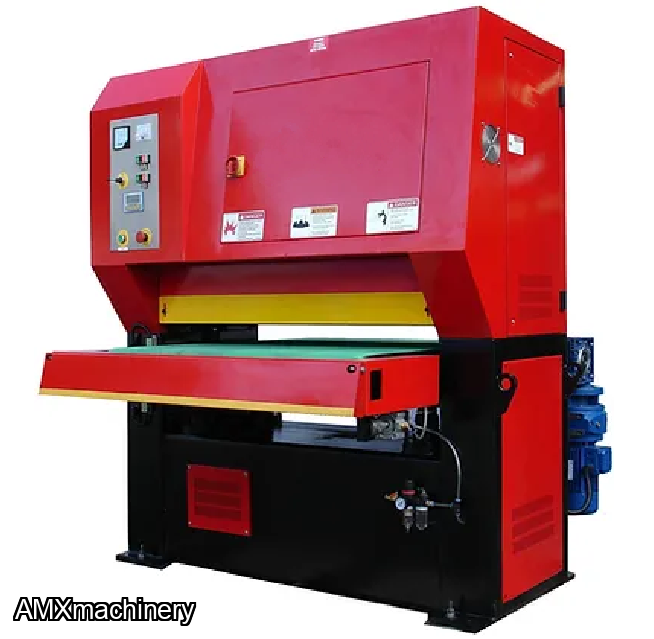

LIJADORA 63'' x 85'' 40 HP                  PARTE: 2GM-FP-6385


  • Abrasive belt size: 63” x 85”
  • 10” diameter heavy duty drum for perfect graining
  • 3-1/8” wide opening
  • Motorized Table Lift with LED display
  • Variable Speed Conveyor
  • Conveyor Forward & Reverse
  • Belt Safety Overtravel Switches

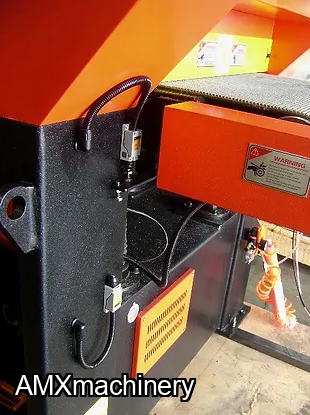

  • Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
  • Re-adjust the tracking system when running extremely out of parallel belts

  • 4-Jackscrew Table Support
  • Double Infeed & Outfeed Pinch Rolls with protective guards
  • Conveyor Belt Tracking System

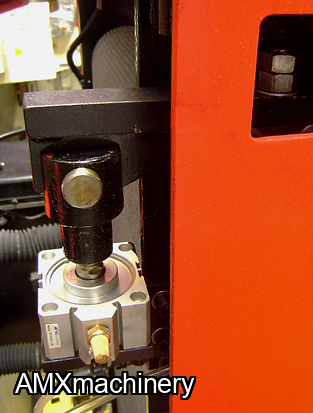

  • Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
  • 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

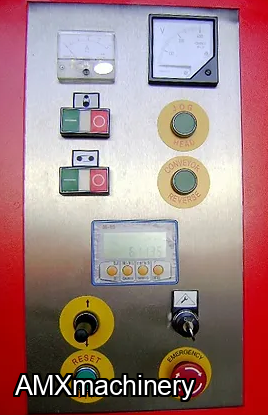

  • Table Height Digital Readout
  • Load Meter indicates percentage of full motor loads
  • Belt change door electrically interlocked for safety purpose

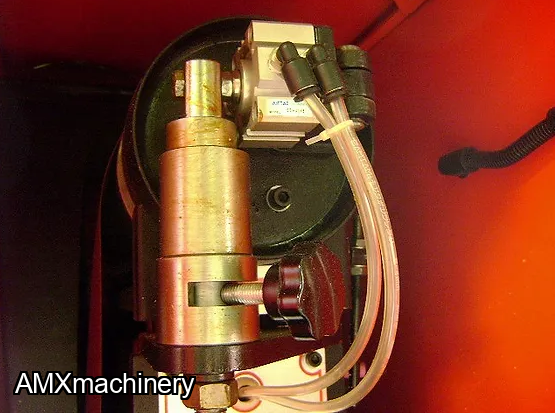

  • Air tensioning of belt for accurate tensioning & compensation of belt stretch
  • Quick release sanding head support for fast belt change
  • Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
  • Emergency stops from almost any point
  • Noise level bellows 82 dba
  • Operation manual, control tags, danger signs, and warning labels in English on machine
  • 208/230V, 3-Phase ( 440/460V is available )



Max. Part Width63"
Abrasive Belt Size63" x 85"
Contact Roller Size10" Dia.
Passline Height31" - 37"
Max. Thickness Capacity3-1/8"
Conveyor Drive Speeds8 - 40 FPM
Infeed Conveyor Length20"
Dust Colector Capacity3,800 CFM
Main Motor40 HP, 230V / 460V, 3PH
Conveyor Motor3 HP, 230V / 460V, 3PH
Table Lifting Motor3 HP, 230V / 460V, 3PH
Net Weight, Approx. 8,650 LBS
Machine Dimensions LxWxH79" x 95" x 83"
