Description

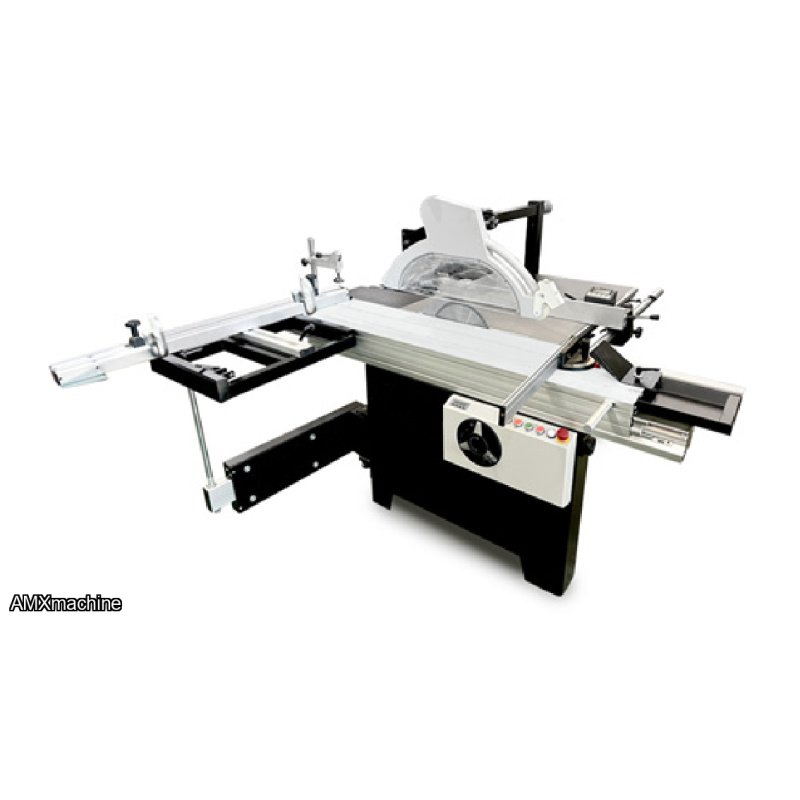

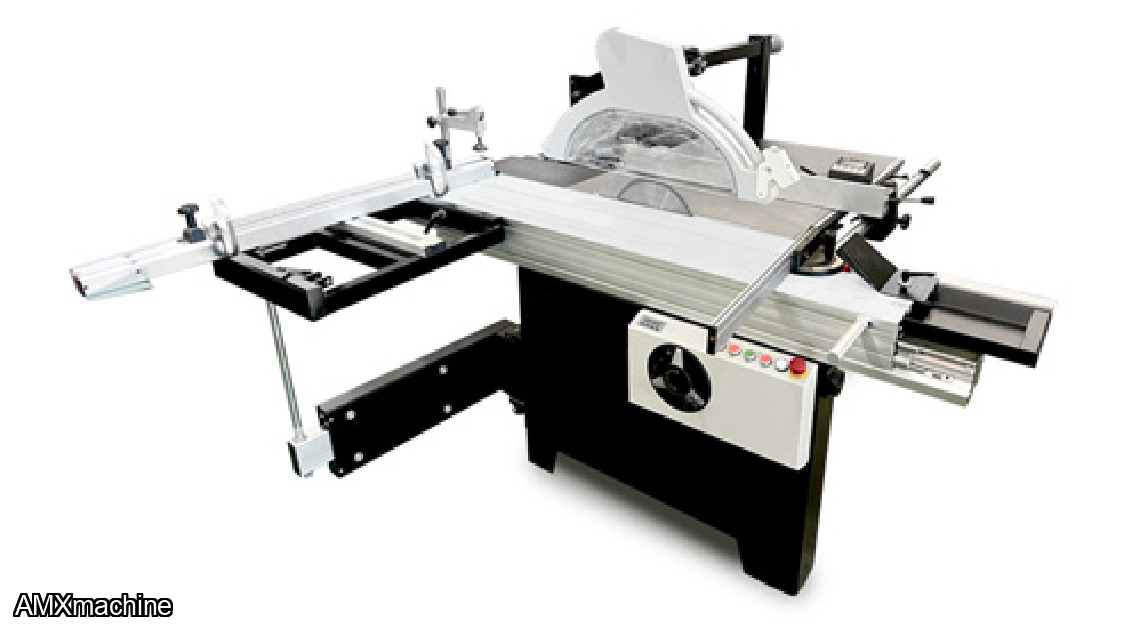

PARTE: 2MK-BMS.1600.IR - SLIDING TABLE SAW - 5 HP
Designed for precision, power, and efficiency, this compact yet high-performance machine is perfect for shops that demand versatile cutting capabilities without sacrificing space.
With the ability to support dado stacks up to 1-1/4″ using an 8″ blade, ensures chip-free precision for joinery and cabinetmaking applications. Plus, quick blade changes between dado and standard blades streamline workflow, maximizing productivity.
| Info | |
|---|---|
| Main Motor | 5 HP 4000 RPM 3.7 Kw |
| Max Blade Diameter | 12" | 305mm |
| Main Blade Arbor | 30mm |
| Main Blade Max Cutting Height at 90º | 3 1/2" |
| Main Blade Max Cutting Height at 45º | 2 1/2" |
| Dado Width Capacity | 3/4" |
| Max Dado Blade Diameter | 8" |
| Dado Blade Arbor | 1 3/16" | 30mm |
| Scoring Motor | 1 HP 8000 RPM .74Kw |
| Scoring Blade | 4 3/4" | 120mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 35 1/2" | 900mm |
| Crosscut Capacity | 63" |
| Crosscut fence max. (Closed/Open) | 48" / 80" |
| Machine Working Dimension (LxWxH) | 79" x 115" x 66" |
| Sliding Table Dimension | 63" x 12" |
| Cast Iron Table dimension (LxWxH) | 32 1/2" x 21" x 35 1/2" |
| Max Tilt | 45º |

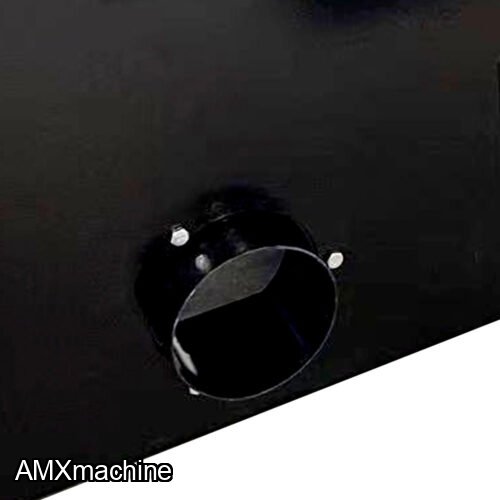

| Dust Collection Port | 4" |
| Electrical Specs | 1 PH 220V 30 Amps 60Hzs |
| Weight | 1000 lbs |
