Description

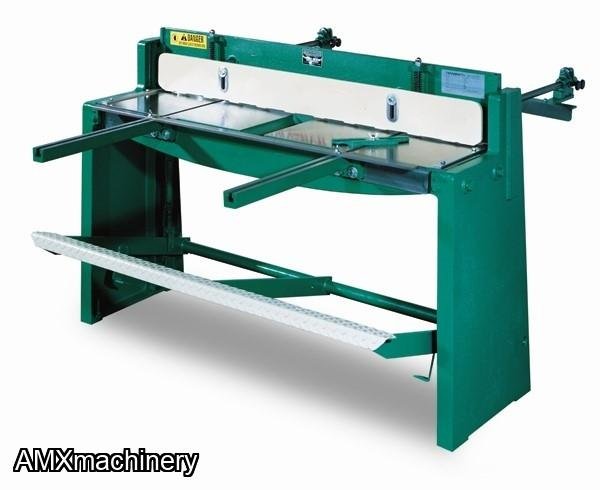

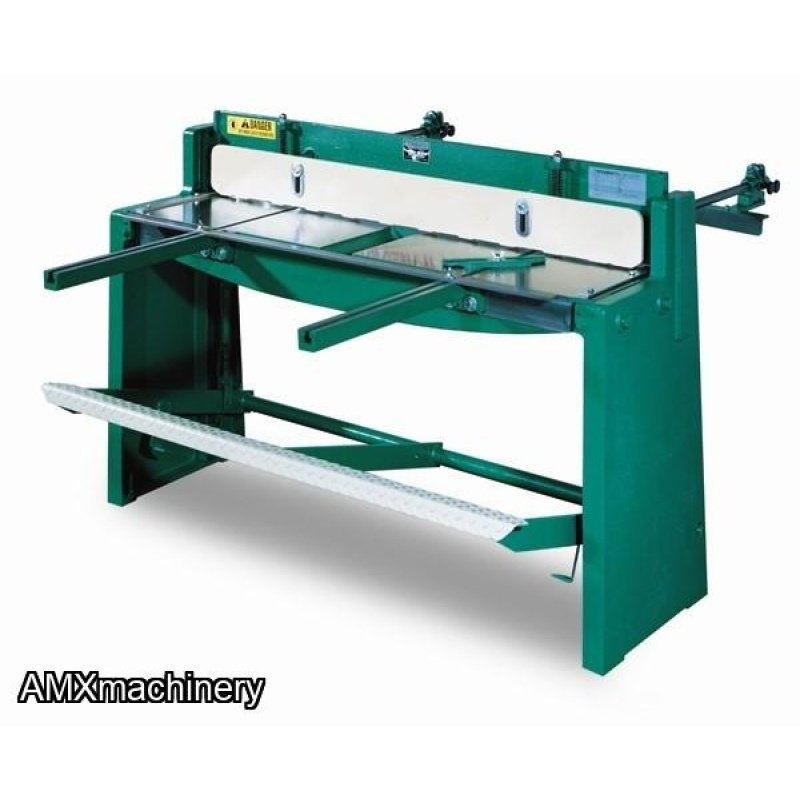

CORTADORA - 52 PIES
Squaring Shears offer precision shearing and rugged construction at an affordable price. The shear frame, bed and cutter head assemblies are constructed of heavy-duty cast iron steel. The shear bed is CNC machined then surface ground to precision tolerances to ensure an accurate working surface.
The shear feature tri-action, high carbon/high chromium steel blades.
Both upper and lower blades have a 2-degree edge relief and the lower has an
additional 1-degree face relief for maximum material penetration with minimum
effort. Tri-action blades help prevent material movement while prolonging blade
life. The tri-action blades produce the best cutting performance
available for a manually operated unit.
|
Maximum shearing capacity, mild steel 16 gauge / 1,6mm |
|
Maximum shearing capacity, stainless steel 20 gauge / 1,0mm |
|
Maximum cutting length 52-1/4 in. / 1327mm |
|
Back gauge range 30 in. / 762mm |
|
Front gauge range 37 in. / 940 mm |
|
Floor space, gauges in position 60 x 80 in. / 1524 x 2032 mm |
|
Overall dimensions, less gauges, LxWxH 61 x 25 x 42 in. / 1550 x 915 x 1067 mm |
|
Shipping weight 1300 lbs. / 590 kg |
|
Export Crate 56 cu. ft. / 1.59 cu. m
|
