ID: 1151
Open
Description

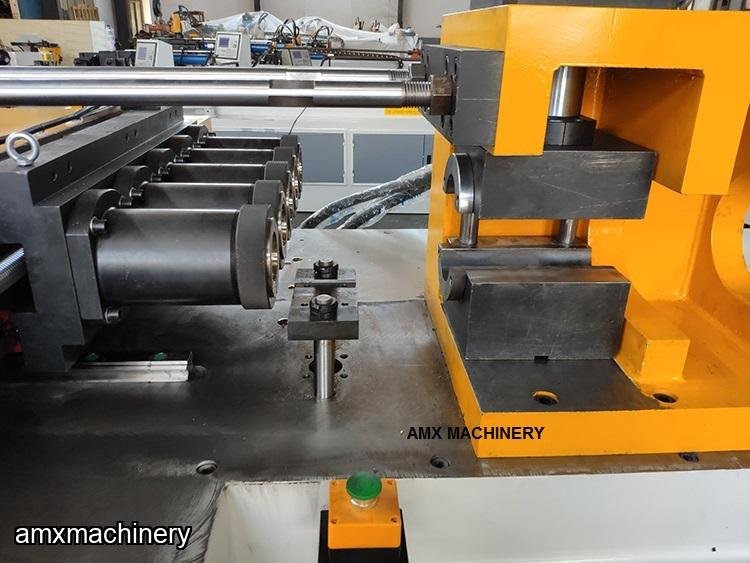

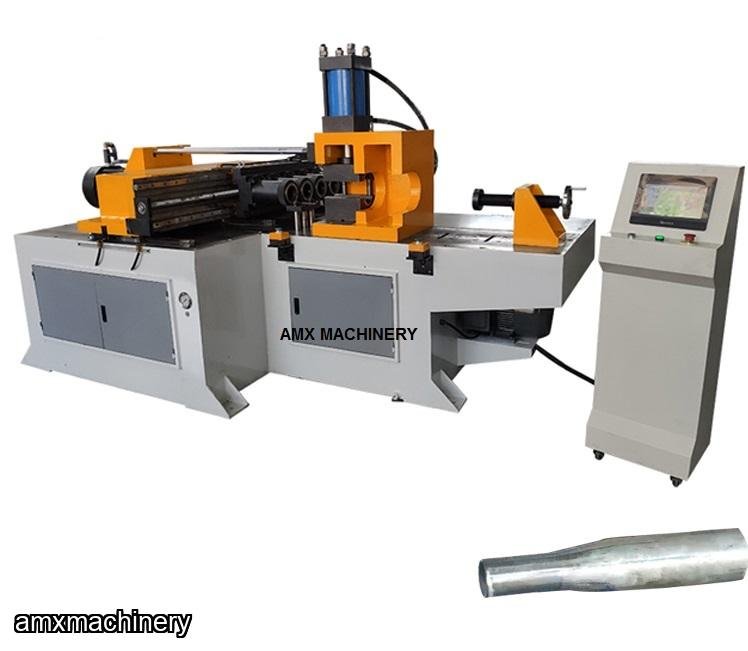

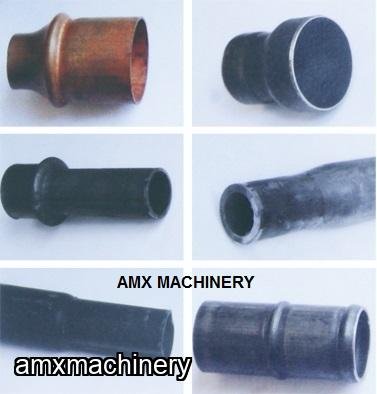

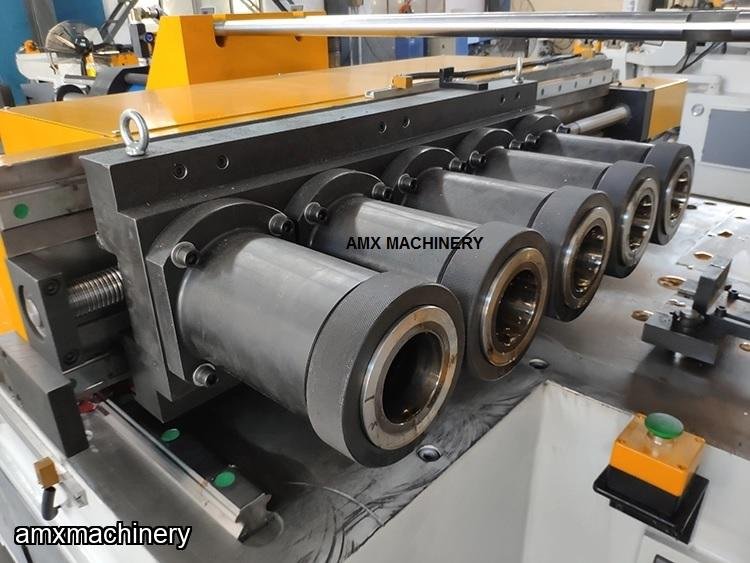

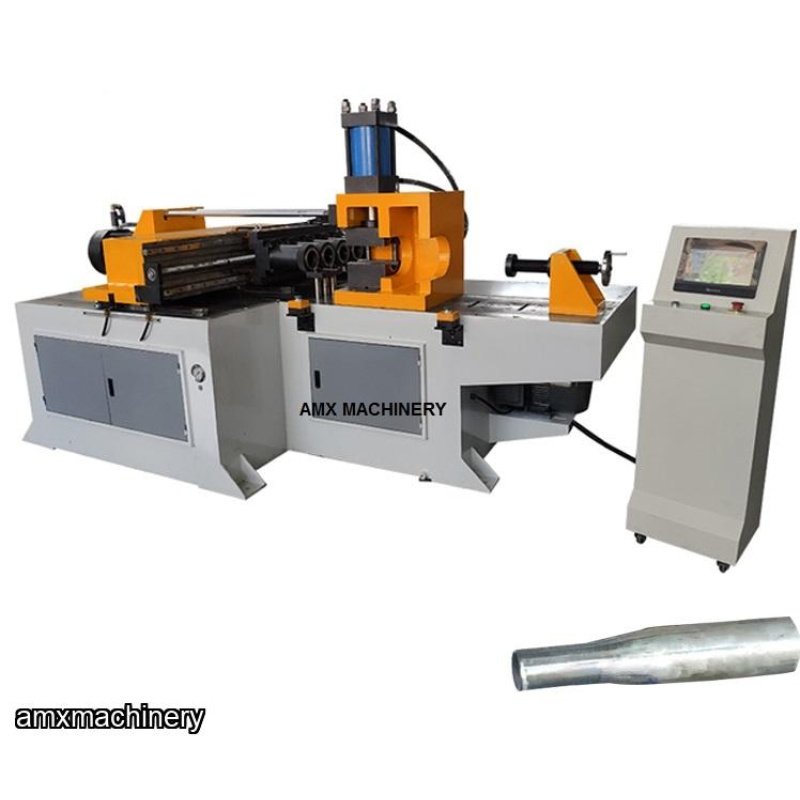

PARTE: 3ZL-0100 – FORMADORA REDUCE Y EXPANDE TUBOS HASTA 6” DIAMETRO
NUEVA CON GARANTIA
Material / Metal Processed: Steel, stainless steel, copper, aluminum, metal
Raw Material: PIPE, Steel Bar
Max.Shrinking Capacity (Thickness)(mm): 2 mm
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Max.Shrinking Capacity (Diameter)(mm): 80 mm
Condition: New
Extra Services: Support customized
Certification: CE&ISO&BV
Automation: Automatic
Power (kW): 11
Warranty: 1 Year
Weight (KG): 5100
Size: 3890*2040*2050mm
Material: Steel
Hydraulic pressure: 12Mpa
Maximum working process: 2300mm
Working speed: 100mm in 3-4sec
Video 1: https://vimeo.com/503916345
Video 2: https://vimeo.com/503916241
