Description

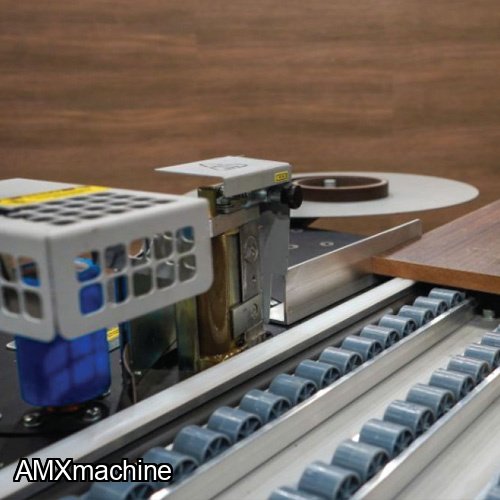

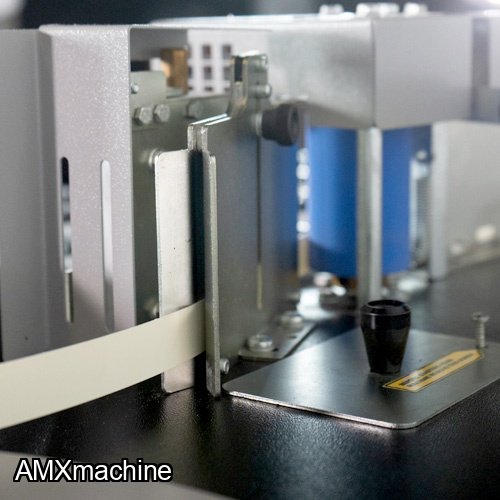

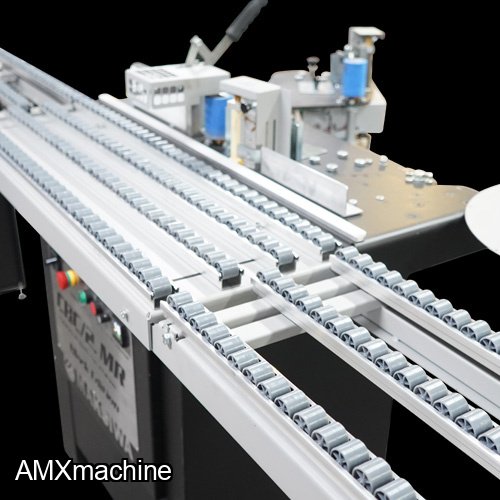

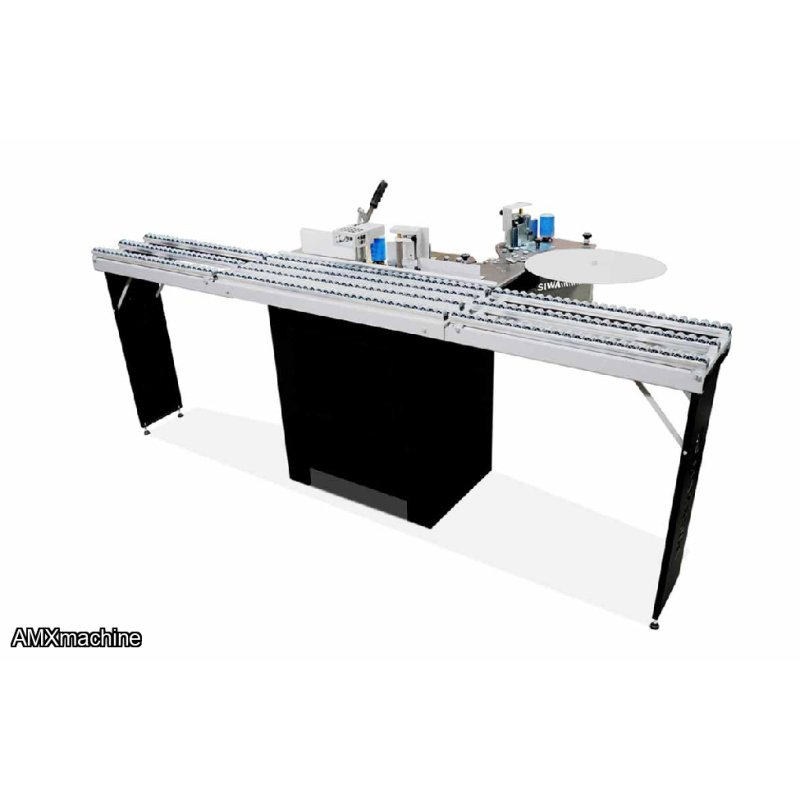

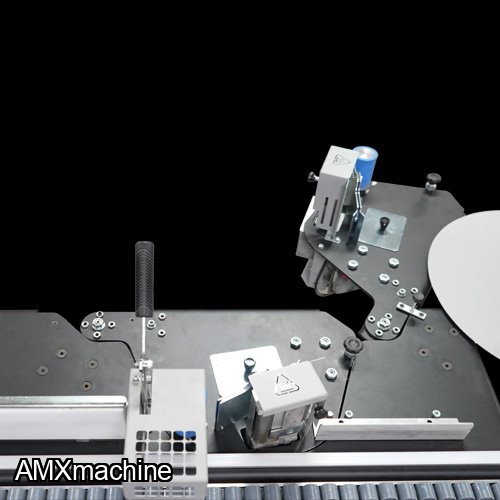

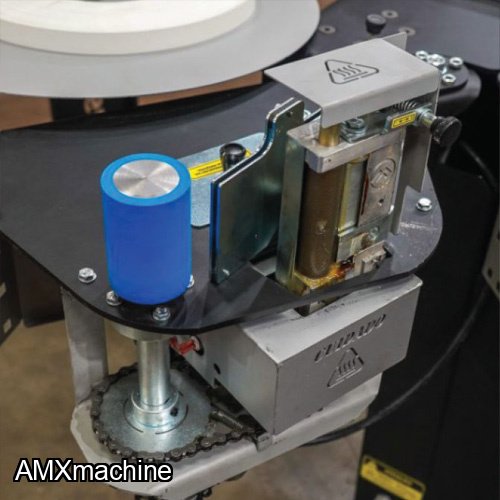

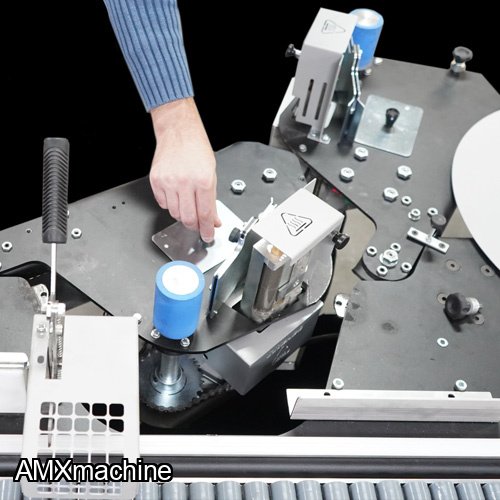

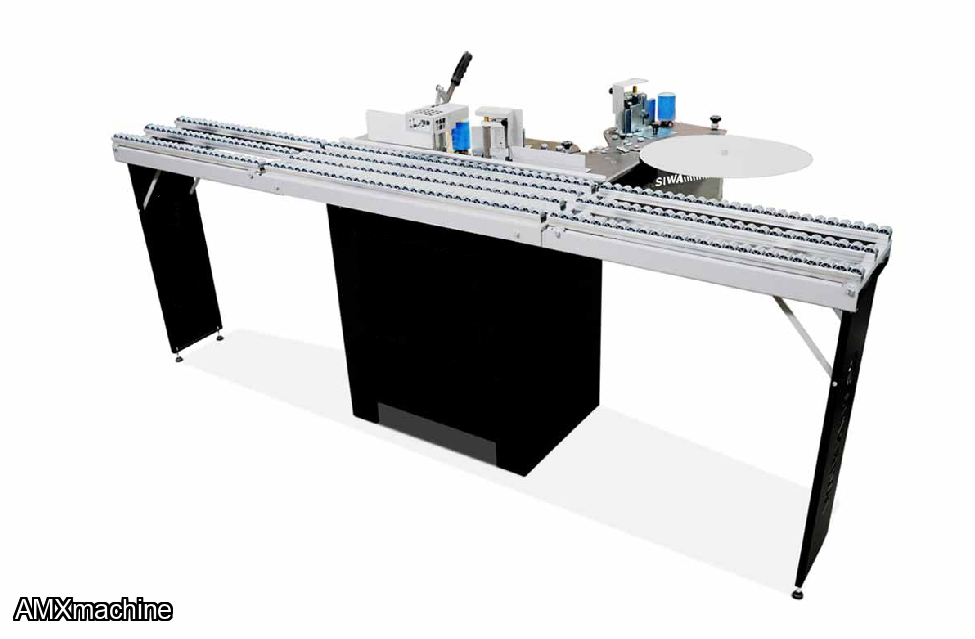

PARTE: 2MK-CBC/2.MR -EDGEBANDER
| Technical Information | |
|---|---|
| Eletrical specs | 1 Phase 110V 1500W 60Hz |
| Dual Motor Specs | 24 V 10 AMPS |
| Manual Feeding speed | 0-26 FT/MIN |
| Max Edgebanding Height | 3" |
| Edgebanding coil Support Diameter | 19 1/2" |
| Edgebanding thickness | 0.4 - 2 MM |
| Edgebanding Material | Melamine /PVC/ABS/PP/ VEENER non-fleeced |
| Glue Pot Capacity | 1.5 Lbs |
| Recommend Glue Temperature Range | 130 - 180°C |
| Glue Pot Tape | Granulated Hot-Melt |
| (Extensions open) Machine dimensions (LxWxH) | (101 3/4") 58" x 43" x 43" |
| Shipping Dimensions (LxWxH) | 47 x 30 x 50 |
| Weight | 330 lbs |
