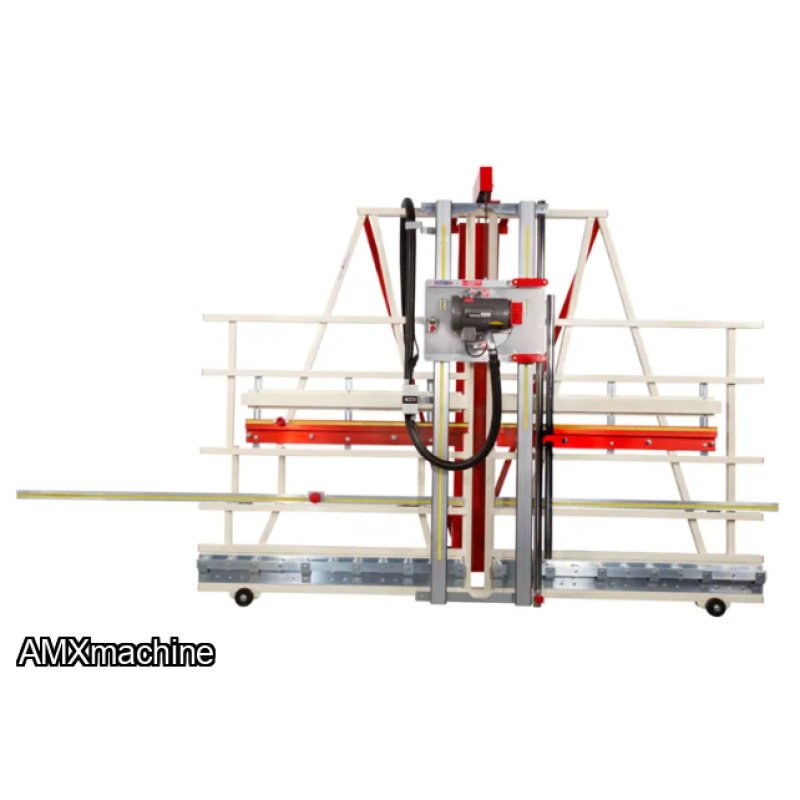

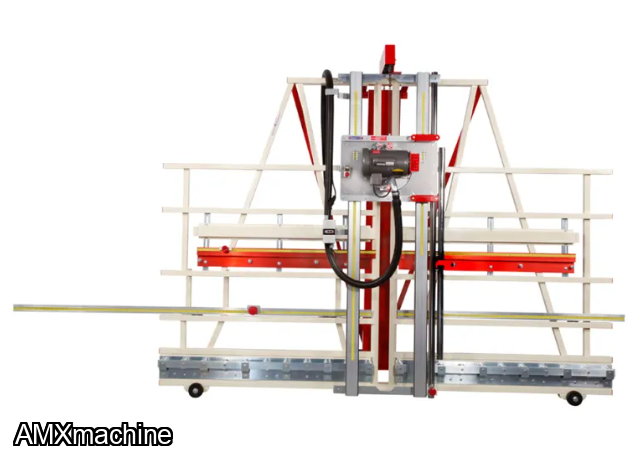

VERTICAL PANEL SAW - 64" HEIGHT X 156" WIDE

Continuous usage panel processing done the easy way. The panel saw features a 10′ frame.

• Rigid beams and rugged frame improving cut accuracy
• Our patented MID-WAY® Fence built into the machine
• 22 aluminum material rollers on the 7400
• Tighter cutting tolerance of .005″
• 2.125” depth of cut

Accessories built onto this machine and incorporated in the price include:

• Quick stop gauges (8′ left, 5′ right)
• Wheels
• MID-WAY FENCE® for processing panels at waist level
• Dust kit
• 864NRATB saw blade
• Hold Down Bar and  a stand integrated within the machine

Motor

• 2HP, 1~ 230V, 11.5 AMPS
• 3HP, 3~ 230V
• 3HP, 3~ 460V, 3.8 AMPS

High production panel processing is now a reality. Cut material 2 1/8″ deep for 8+ hours per day and within .005″ straight and square. Every component of this saw represents quality and performance. Featuring three different motor configurations, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these top of the line woodworking tools will boost your shops production.

Standard Equipment:

• Continuous usage induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and horizontal rulers.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Dust collection ready.
• 3 year warranty.
• TUV certified to UL/CSA standards
