Description

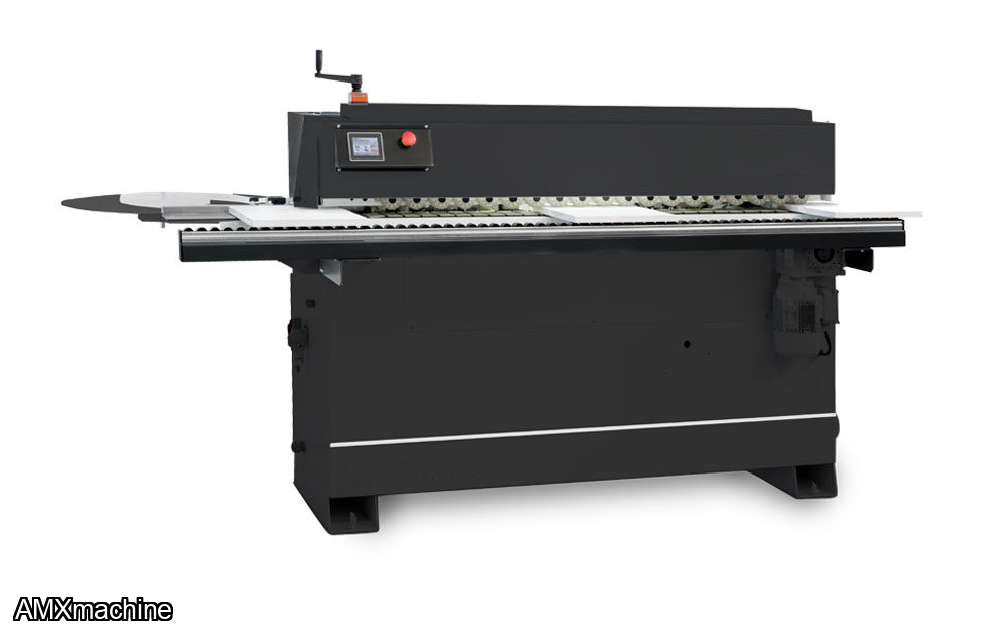

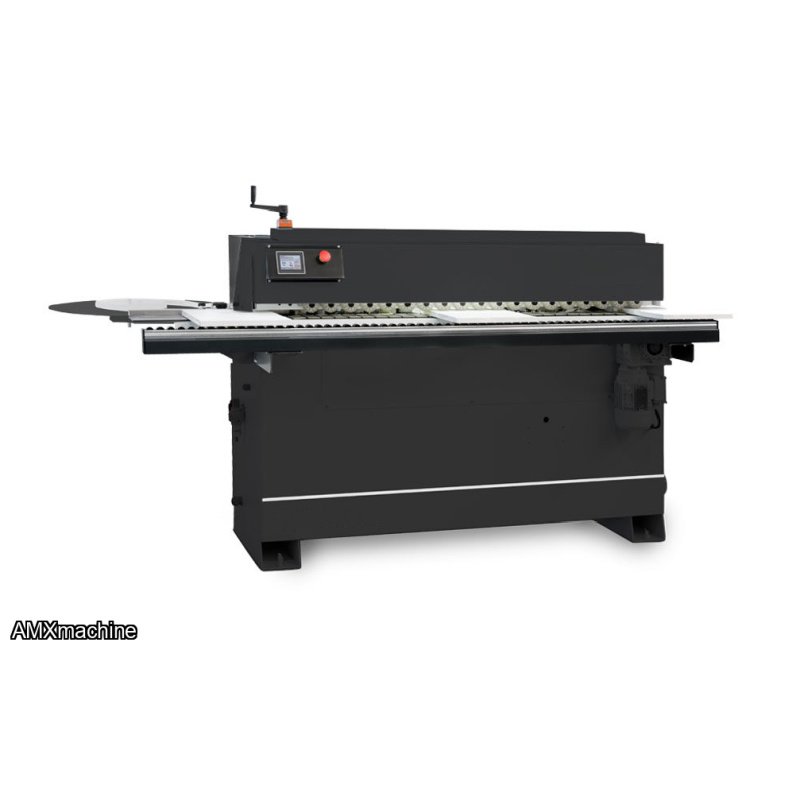

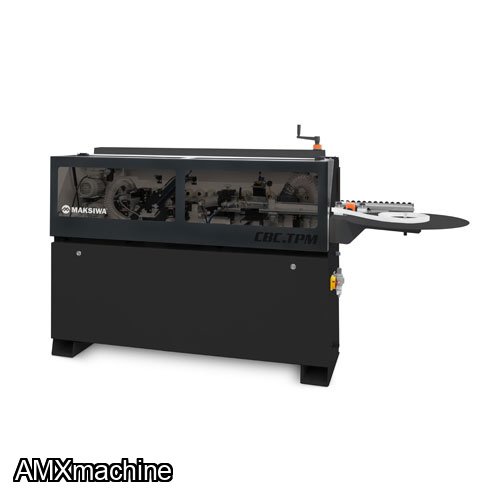

PARTE: 2MK-CBR.TPM - EDGEBANDER
SAE METRIC

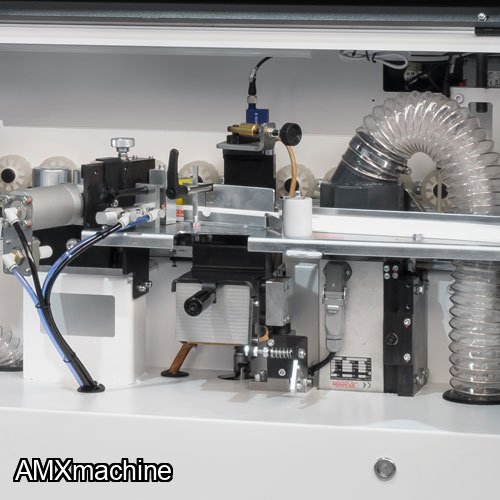

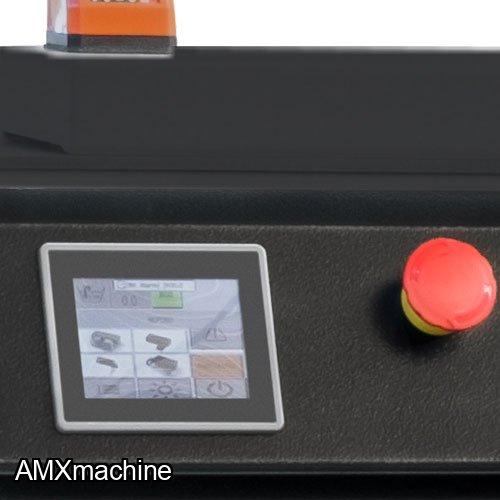

Combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with a touchscreen panel, this machine ensures ease of operation and delivers a flawless finish. Each high-frequency motor is controlled by an independent electronic converter.
Pre-milling in a small footprint
- Edge Tape: 0.4-2 mm
- Panel Thickness: 10-40mm
- 1 Phase 220V 60Hz
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor

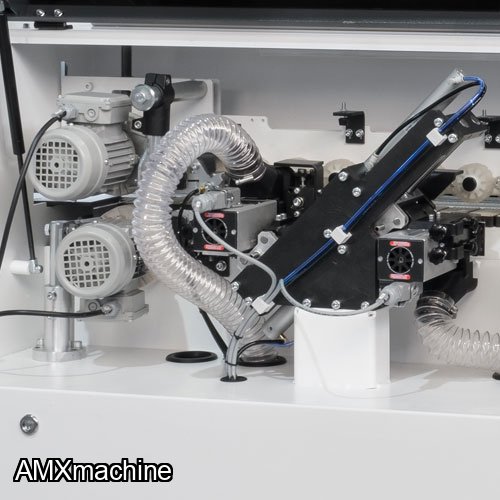

- Pre-milling Unit 1 HF Motors
- Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
- Automatic feeding Speed 21 ft/min
- Net Weight 1146 Lbs | 520 kgs
- Compact Design
- Melamine/PVC/ABS/PP
| Electrical Requirement | 1 Phase 220V 30 Amps 60 Hz |
| Conveyer Motor | 60 Hz 1390 RPM .66 kw |
| Top/Bottom Trimmer HFM | 200 Hz 12,000 RPM .27kw |
| End Trimmer Motor | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM | 150 Hz 9000 RPM .75/.25Kw |
| Top Buffing Motor | 60 Hz 1680 RPM .11kw |
| Bottom Buffing Motor | 60 Hz 1680 RPM .11kw |
| Sound Rating | 80 dB |
| Automatic Feeding speed | 21 ft/min | 6.5 m/min |
| Panel thickness Min/Max | - | 10 - 40 mm |
| Max Pre-milling Height | 1” | 30 mm |
| Edgebanding thickness | 0.0157" - 0.07" | 0.4-2mm |
| Glue Pot Capacity | 1lbs | 0.5 kg |
| Max Edgebanding Height | 1" | 30 mm |
| Minimum panel width | 4 3/4" | 120 mm |
| Minimum panel length | 7 7/8" | 200 mm |
| Extendable Panel Support Rail Length | 83 1/2" | 2122 mm |
| Extension table Max Width | 10" | 257 mm |
| Size of Dust Collector Ports | 5" | 127mm |
| Minimum Dust Collection Requirements | 1236 CFM | 2100 m3/h |
| Air Pressure Requirement | 7 SCFM @ 90 PSI | 0.7 Mpa 200 L/min |

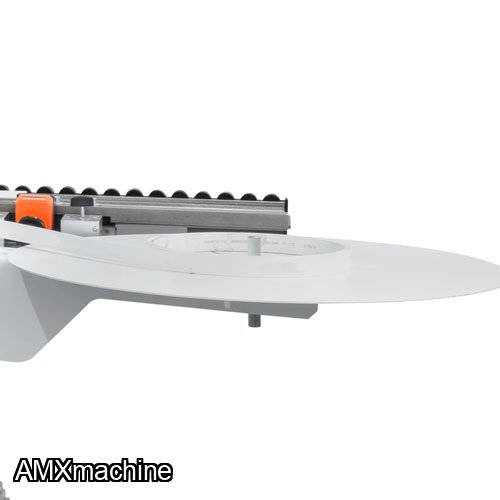

| Edgebanding coil Support Diameter | 59" | 1498 mm |
| Recommended Glue Temperature Range | 356°F - 410°F | 180°C - 210°C |
| Max. machine dimensions (LxWxH) | 93 1/2”x 40 13/16”x 53” | 2376 x 1028 x 1347 mm |
| Net weight | 1146 LBS | 520 KGS |
| Shipping dimensions (LxWxH) | 91” x 30” x 57” | 2320 x 760 x 1448 mm |
| Glue Type | Granulated Hot-Melt EVA | Granulated Hot-Melt EVA |
| Electrical Information | 1 Phase 220V 30 Amps 60Hz | 1 Phase 220V 30 Amps 60Hz |
| Sound Rating | 80 dB | 80 dB |
