Description
DOBLADORA DE METAL 12'6'' x 22 PARTE: 2GM-SBB1222

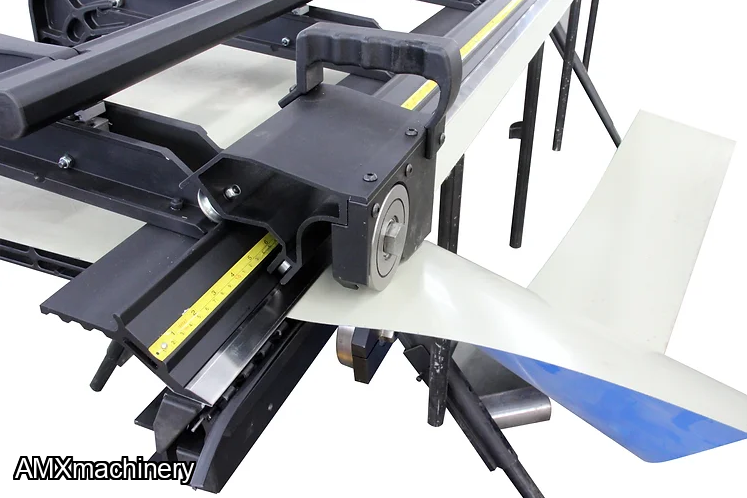

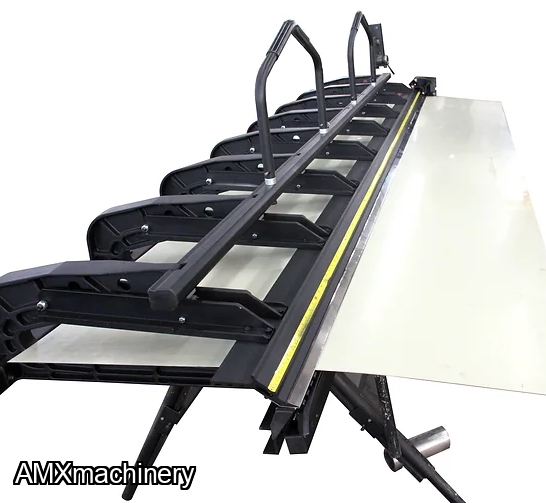

Machine Tools 12-foot Siding Brakes are a portable, foldable solution designed for precision sheet metal bending in roofing and HVAC applications. Built with a heavy welded snap steel stand for stability, this tool ensures durability and reliability on any job site. Featuring a cut-off shear for clean, accurate cuts, it’s the ideal companion for roofers and HVAC professionals seeking efficiency and precision. ISO 9001 certified and backed by a 1-year parts warranty, the siding brake is engineered to meet high industry standards. Portable, powerful, and practical—perfect for any professional’s toolkit.
- Portable type, foldable
- With snap steel stand
- Cut off shear
- Ideal for roofers, and HVAC shops
- ISO 9001 certified
- Portable type, foldable
- Heavy welded snap steel stand
- Cut off shear
- Ideal for roofers, and HVAC shops
- One year warranty for parts
Specifications | SBB822 SBB1022 SBB1222
|
Bending capacity: thickness Galvanized/mild steel, 60,000PSI stainless steel, tension 85,000PSI painted steel grade D, 85,000PSI Soft aluminum, 28,000 PSI min. thickness capacity Open hemming capacity, Galv. Close hemming capacity, Galv. |
22Ga 22Ga 22Ga 26Ga 26Ga 26Ga 26Ga 26Ga 26Ga 18Ga 18Ga 18Ga 30Ga 30Ga 30Ga 26Ga 26Ga 26Ga 30Ga 30Ga 30Ga |
Max. bending length | 8’6” 10’6” 12’6” |
Throat Depth | 19” 19” 22-3/4” |
Machine Weight | 253LBS 297LBS 323 LBS |
Machine Dimensions, inch LxWxH | 110x30x11” 129x30x12 158x30x12 |
