Description

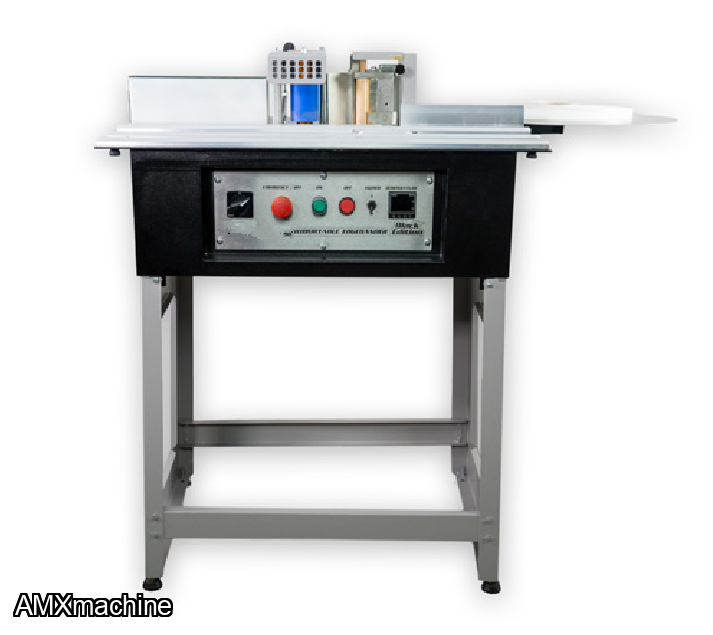

PARTE: 2MK-CBC.E - EDGEBANDER

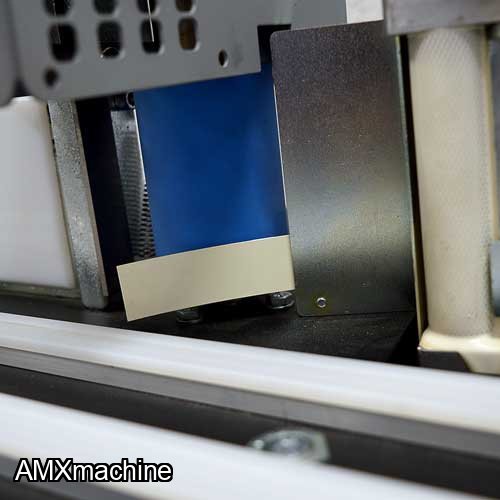

Is designed for convenience, portability, and efficiency. It has retractable legs for easy transportation. Works with edge banding tape width up to 3” and thickness 0.3mm -2mm. The built-in manual cutter provides a precise cut of the tape. With a digital temperature control panel, you can easily control the glue temperature and the glue pot capacity is 1.5 pounds (700 grams).
A spiral bar raises the glue from the glue pot and flows back down, similar to a fondue fountain. It uses low temperature pellet glue, recommends glue that work in the range of 130° up to 180° Celsius.
| Technical Information | |
|---|---|
| Electrical specs | 1 Phase 110 V 1500 W 60Hz |
| Motor specs | 24 V 10 Amp |
| Manual Feeding Speed | 18ft/min |
| Max edgebanding Height | 3" |
| Edgebanding Coil Support Diameter | 19 1/2" |
| Tape Thickness | 0.4 - 2mm |
| Edgebanding Material | Melamine /PVC/ABS/PP/ VEENER non-fleeced |
| Glue Pot Capacity | 1.5 lbs |
| Recommended Glue Temperature Range | 130° to 180º C |
| Glue Pot Tape | Granulated Hot-Melt |
| Max. Machine Dimension | 47" x 31" x 42" |
| Shipping Dimension | 32" x 22" x 20" |
| Weight | 114 Lbs. |
