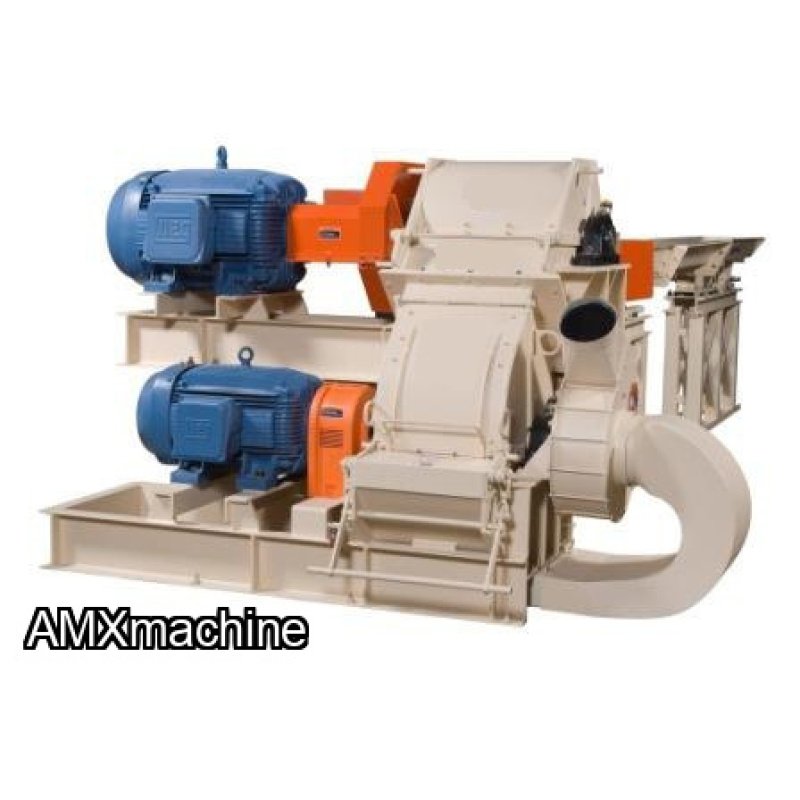

PART: 2SB-FGZ-240-40 - DUAL STAGE - ULTRA FINE GRINDING - HAMMER MILL - 100 & 75 HP
New with warranty
The compact and efficient Dual Stage Ultra Fine Grinding Wood Hammer Mills are available in two configurations, both designed to produce the finest finish grind from a variety of in-feed materials.
The FG Series features two 13 Series Finish Grinding Wood Hammer Mills stacked one above the other. Ideal for processing hogged wood scrap, planer shavings, sawdust and dry wood chips, the FG Series can produce a finished product of fine sawdust to ultra fine wood flour in material that has a moisture content of less than 15%.
The FGZ Series is designed to handle bulkier in-feed material while still producing a fine sawdust end product. The mill features an HZF Series Horizontal Trim Scrap Grinder stacked above a 13 Series Finish Grinding Wood Hammer Mill. This design allows for coarse wood scrap, rippings, edgings or trim block to be ground to a fine finished particle size in just one pass.
Both the FG and FGZ Series feature integral fan units mounted off of the main shaft of the lower mill which allows for optimal throughput, and conveys the finished product to storage. These fans produce a throughput rate of 300-400% over that of gravity discharge hammer mills.
Key Features:
• Space saving stacked design.
• Dual rotor assemblies designed specifically for each application.
• Internal replaceable ribbed liner plates in both mill halves.

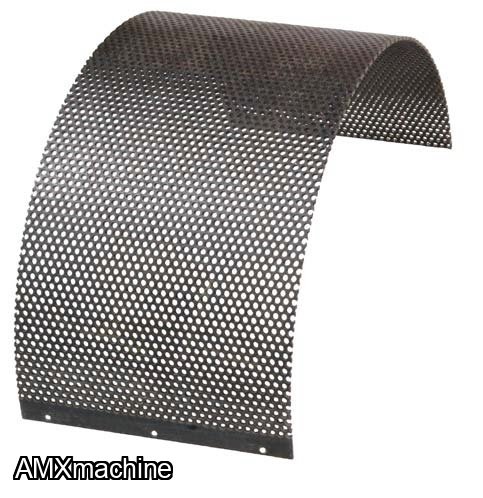

• Many hammer styles and screen sizes to choose from.
Applications: FGZ
• Coarse wood scrap
• Rippings, edgings and trim block • Lumber and demolition debris
Applications: FG
• Hogged wood scrap
• Planer shavings • Dry wood chips
• Sawdust
• Light bark
FGZ Series Hammer Mill
|
Model |
|
Housing |
Shaft Diameter |
Rotor Width |
Rotor Diameter |
Bearings |
Integral Fan System |
Screen Area |
Shaft Speed |
Tip Speed |
|
240Z-80 |
Upper Unit Lower Unit |
3/4” (20mm) 1/ 2” (12mm) |
3 1/4” (80mm) 3 1/4” (80mm) |
17 1/2” (440mm) 24” (610mm) |
24” (610mm) 24” (610mm) |
2 15/16” (70mm) 2 15/16” (70mm) |
N/A 5000 CFM |
442 sq inches (2850 sq cm) 912 sq inches (5880 sq cm) |
3600 RPM 3600 RPM |
22600 22600 |
|
280Z-90 |
Upper Unit Lower Unit |
3/4” (20mm) 3/ 4” (20mm) |
3 1/4” (80mm) 5” (130mm) |
24” (610mm) 36” (900mm) |
24” (610mm) 24” (610mm) |
2 15/16” (70mm) 3 7/16” (90mm) |
N/A C/F |
624 sq inches (4140 sq cm) 1368 sq inches (8825 sq cm) |
3600 RPM 3600 RPM |
22600 22600 |
|
290Z-100 |
Upper Unit Lower Unit |
1” (25mm) 1 ” (25mm) |
5” (130mm) 6 3/8” (160mm) |
36” (900mm) 48” (1220mm) |
24” (610mm) 24” (610mm) |
3 7/16” (90mm) 3 7/16” (90mm) |
N/A C/F |
936 sq inches (6040 sq cm) 1824 sq inches (11780 sq cm) |
3600 RPM 3600 RPM |
22600 22600 |
