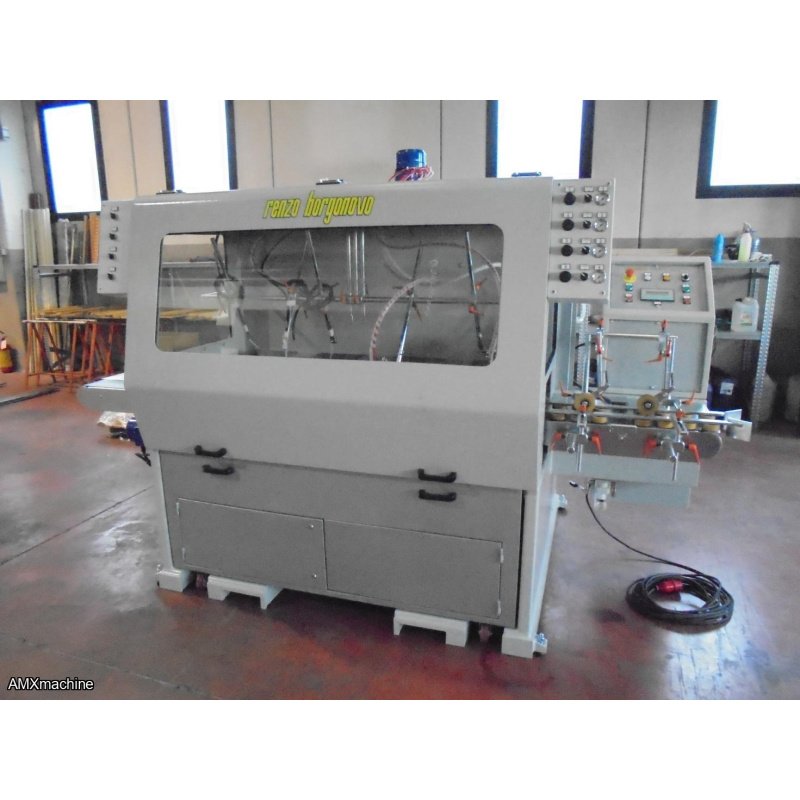

PART: 12589 – AUTOMATIC SPRYING MACHINE – MOULDINGS - RENZO BORGONOVO

USED – VERY GOOD CONDITION – REFURBISHED

MODEL: SP 6P

These machines have been designed for spray lineal parts i.e. Moldings, Flooring, Wood Strips, etc.

and can be used with water-based paints, thinners, nitro and polyurethane paints, paints containing pigments, acrylic paints, matt and gloss paints.

The machine features 4 spray stations comprising each of up to 2 automatic spray-guns, a tray collection and a duct for direct product recovery.

The machine is operated from a central control panel with PLC which automatically controls spray-gun opening and closing in relation to the length of the workpieces and feed speed, thereby ensuring large product savings. Operation and adjustments are independent for each spray-gun.

The workpieces are fed on solvent-resistant conveyor belts.

The conveyor belts are operated by a toothed belt driven by a mechanical gear-motor.

The suction system consists of a box, filters and electric fan.

The high performance of this system and use of a functional spray booth, located in the spraying areas, provide good protection against pollution for the operator and work area.

The product is fed to spray-guns by means of a diaphragm pump.

Other feed systems can also be adopted: under pressure, air-mix and air-less.

Technical features:

Standard production: min.- max.: 20 - 100 mt./min.

Installed power: kW 3,0

Working dimensions

Length: min.- max.: 800 mm. - infinite

Width: min.- max.: 15 – 150 mm.

Height: min.- max.: 15 - 100 mm.

Height of work table: 900 mm.

Compressed air consumpt.:  NI/min 1500 – 2000

Spray gun and pump equipment proposed.

This material is optional, and other equipment

models or brands can be supplied upon

demand.

Not included. Machine only predisposed for pump and spray-guns installation.

Air delivery suction: 4000 m3/h

Aspiration rectangular fitting, internal and external measures

Internal: 250x355 mm.

External: 330x435 mm.

Overall machine dimensions and weight: 3000*2900*2220 mm. and 800 kg.

Voltage: TBD.

Machine in conformity with “EC” regulations.

Complete of User Manual (Ita/Eng) given in digital format.
