Descripción

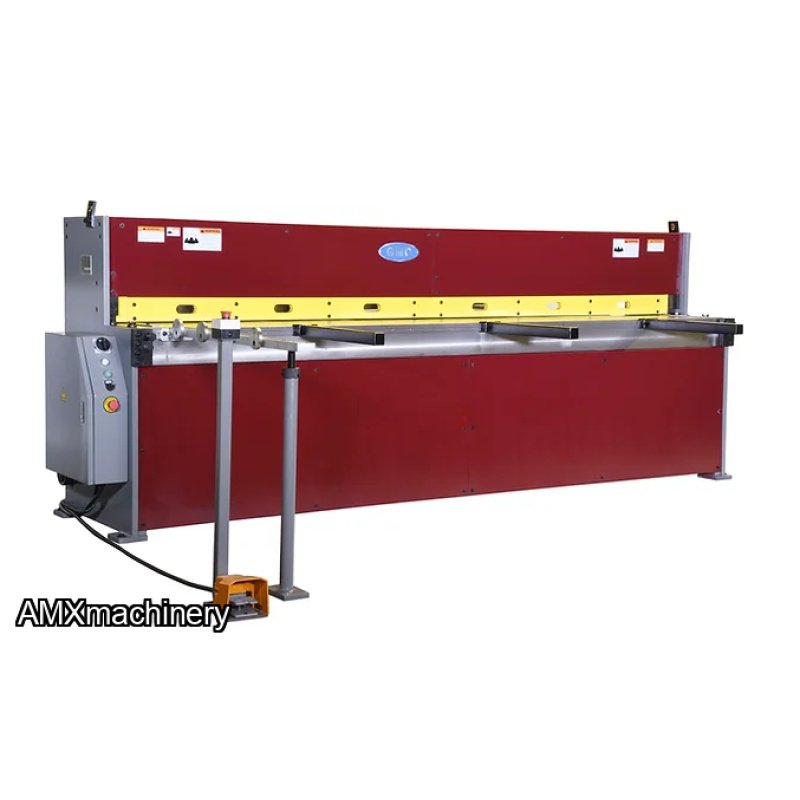

CORTADORA DE METAL HIDRAULICA PARTE: 2GM-HS-1014MD
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 60” long squaring arm with inch / mm scale
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot
Cutting capacity: mild steel stainless steel min. thickness | 10’ x 14Ga. 10’ x 18 Ga 26Ga. |
Blade length | 10’1” |
Strokes per minute adjustable | 14-18 |
Throat depth | 16” |
Worktable height | 30-1/2” |
Front support arm | 24” |
Back gauge, manual | 26” manual |
blade rake angle | 1.5 degree |
oil tank cap. | 20gal |
Main motor | 5-1/2 HP 220V/440V, 3PHASE |
Machine weight | 5,200 LBS |
Machine dimensions | 139”X35”52” |
