Description

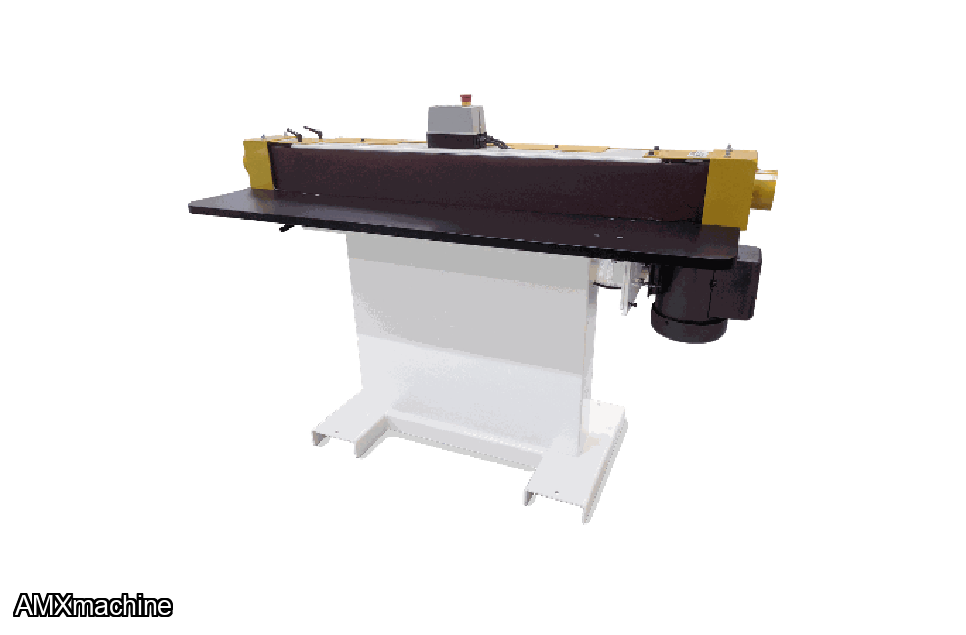

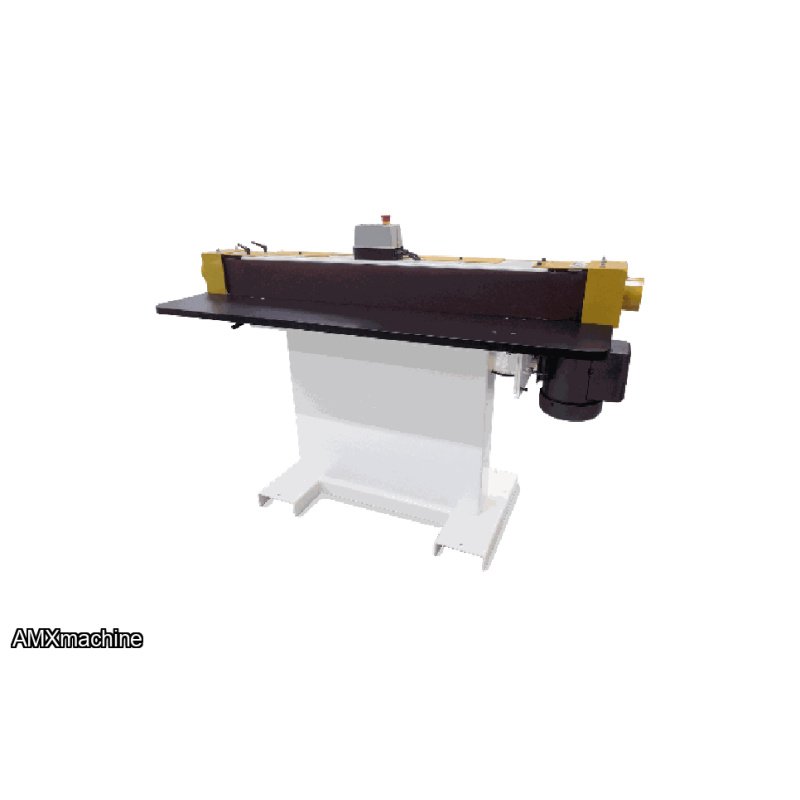

PARTE: 2RI-R921 - 6" Horizontal Edge Belt Sander
Description:
Designed for use with edge finishing devices common to the furniture and custom woodworking industry. The ability to use the machine for a variety of edge finishing applications makes this the industry’s most universal edge belt sander.
Standard Features:
- Double Sided Ground Steel Platen
- (1) Bias Tilting Table
- Full Dust Hood with 4" End Openings for Dust Collection
- Pedestal Base
- Magnetic Controls
Technical Data and Specifications:
- Belt Size: 6" x 132"
- Platen Size: 6" x 49"
- Drive Wheel: 6" x 6"
- Drive Motor: 3 HP
- Electrical R921: 230V, 1Ø, 60Hz
- Electrical R923: 230V, 3Ø, 60Hz or 460V, 3Ø, 60Hz
- Air: N/A
- Work height: 36.5″
- Footprint: 31.5" x 80″
- Table Area: 12″ x 65″
