ID: 2360
Open
Description

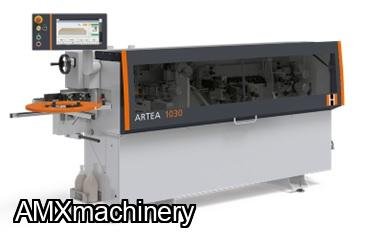

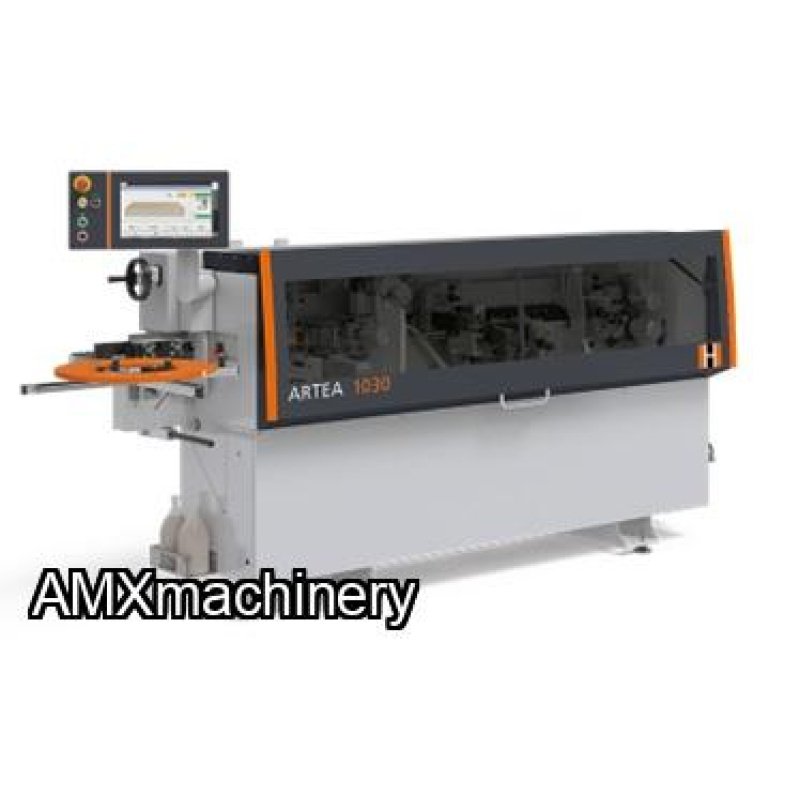

PART: 2WG-ARTEA1030 - EDGEBANDER - HOLZ-HER - ARTEA 1030
ARTEA series
highest user-optimization, productivity, precision and safety for years thanks to heavy and rigid frame.
Control technique and operation
with rotating control panel, dustproof.
Easiest operation through the 15,6" touch screen with graphical support
as well as VISE function and glue type library.
Glue application system with Glu Jet
highest flexibility on glue application via patented nozzle technique
EVA and PUR glue can be handled without laborious and expensive accessories.
Neutral or coloured glue can be changed quickly.
Lowest energy expenses thanks to shortest heating time within 3 minutes.
Unit technique
Basing on our 50 years' experience concerning edge banders we supply modern and solid working units which have been developed continuously in order to grant high-class processing of edges and guarantee best product quality on all ready items.
Tooling technique
latest technical up-date on milling technology, each matching with your special application range.
Accessories
The wide range of accessories starts from the nesting package up to the high-tech spray devices.
|
BASIC MACHINE ARTEA 1030 US / Canada version 230V / 60Hz with manual pressure bridge adjustment |
|
Equipment according to following technical specification. |
Pull-out workpiece support, distance 500 mm
|
Pull-out workpiece support, distance 500 mm |
|
|
TECHNICAL SPECIFICATIONS |
|
|
Edgebander for the edging and post-machining of materials in panel form (such as chipboard panels, MDF panels, tabletops, etc.)
Edging thickness of coiled edging: 0,4 - 3 mm Edging thickness of cut-length edging: 0,4 - 5 mm
Edging height: max. 55 mm Panel thickness: 8 - 50 mm
Edging cross section: max. 5 x 50 mm (depending on material)
Workpiece width: min. 70 mm Workpiece length: min. 180 / 210 mm Feed speed: 9 m/min. |
|
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express, Bank Transfer/Direct Debit
Post Message
Sign in to ask the seller a question.
AMXmachine
SIERRA CINTA – AUTOMATICA – CAPACIDAD 16.5”
PARTE: 2AA-HA400W – SIERRA CINTA –
AUTOMATICA – CAPACIDAD 16.5” - AMADA
NUEVA
CON GARANTIA
Machine
Specifications
Cutting
Capacity Round (Diameter) 1.18"-16.54"
Rectangle
(W x H) 16.3" x 16.3"
Work
Load Capacity 5,511 lbs.
Material
Index Stroke 19.6" (Maximum 9 times index)
Index
Length 0.394" - 177"
Saw
Blade Dimensions (L x T x W) 15' x 0.050" x 1-1/2"
Blade
Speed 56-295 ft./min, 60 Hz, Step less
Saw
Blade Motor 7.5 HP
Hydraulic
Pump Motor 2...
AMXmachine
FORMADORA – EXPANDE TUBOS – CAPACIDAD – 160 MM
PARTE:
3BE-CH-3001-A - FORMADORA – EXPANDE TUBOS – CAPACIDAD – 160 MM
NUEVA CON GARANTIA
Process capacity:φ50-φ160mm
Process tube length:500-3500mm
Process tube thickness:1.5-2.5mm
Process expansion tube length:20-120mm
Power: Hydraulic 15HP
W/ STANDARD ACCESSORIES AND TOOL BOX
AMXmachine
PART: 12548 - BALER - COMPACTOR - VERTICAL - 30” X 60” - CARDBOARD CARTON - 67” OPEN HEIGHT
PART: 12548 -
BALER - COMPACTOR - VERTICAL - 30” X 60” - CARDBOARD CARTON - 67” OPEN HEIGHT10 HP MOTOR
USED - GOOD CONDITIONS
AMXmachine
PART: 12588 – RECIPROCANTING - SPRAY LINE UV - GIARDINA
PART: 12588 – RECIPROCANTING - SPRAY LINE UV - GIARDINAUSED - GOOD CONDITIONCAPACITY: 12 SPRAY GUNS, 2 CIRCUITSHOT AIR TUNNEL, CAN USE HOT WATER FOR HEATINGINFRARED TUNNELUV ED TUNNEL FOR EDGE DRYINGIR AND UV OVENS ARE NEW, JUST 1 HR USE SINCE INSTALLATIONCURRENTLY INSTALLED AND WORKINGVIDEO: https://vimeo.com/1048779881
