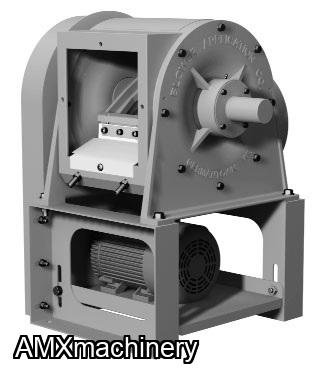

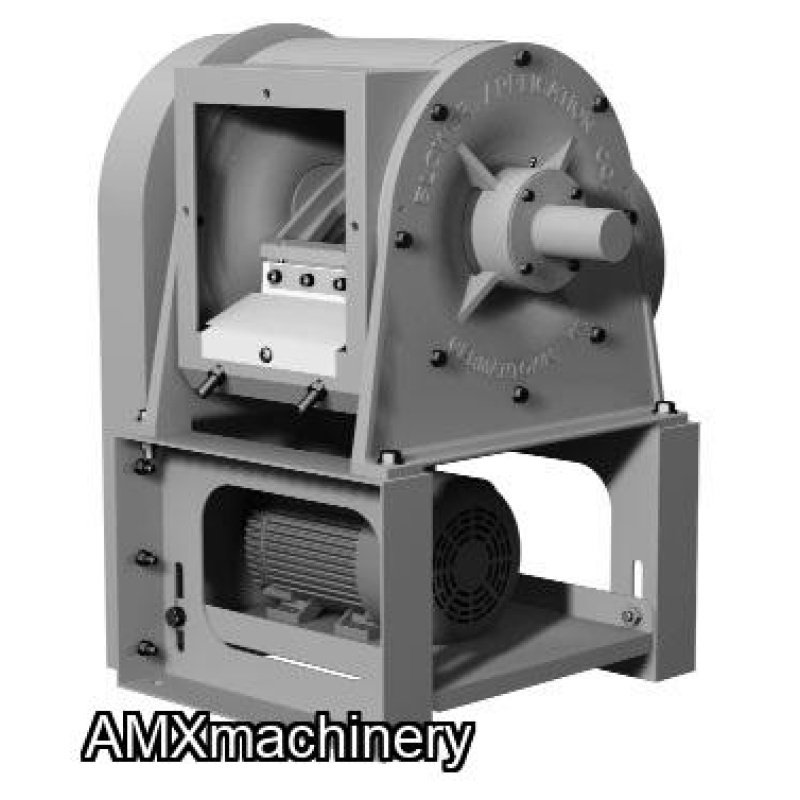

PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB
PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB

PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB

AMXmachine

Contact Seller
Description

PART: 2BC-5TOB-E - TRIM CUTTER - PAPER TO FINE METAL FOIL - BLOAPCO - MODEL 5TOB

New with warranty

Paper, corrugated and heavy fiber board

BEST USES - Removal of continuous film, Edge Trim and Matrix

INDUSTRIES - Converting, Paper, Film, Plastic, Non-woven, Foils


IDEAL FOR

paper

light fiber board

corrugated board

solid bleached sulfate paperboard

plastic film

foil laminates

pressure-sensitive stock

light, non-ferrous foils


CAPABILITIES

Materials: Paper, corrugated and heavy fiber board

Trim Width max: 8 1/2" (216 mm)

Caliper Range:

3 mil to 250 mil

0.00300" to 0.25000"

0.0762 mm to 6.350 mm

Air Capacity: 3,000 cfm 5,100 m3/hr

Static Pressure Loss: 1.5" wg. @ 5,000 fpm air velocity

Drive: V-Belt or Direct Drive

Cutting Action: Impact

Rotor speed: 500 to 2,000 rpm

Weight: 355 lbs. (161kg) with motor

Dimensions

L x W x H: 225/8" x 181/2" x 283/4"

(574.7 mm x 469.9 mm x 730.3 mm)


FEATURES

- Rotor-mounted knife-adjustment screws for fast, easy setups

- Multiple knives: HCHC, NEOR, NEOR metal grind, carbide-edge

- Class "O" tapered roller bearings eliminate endplay and runout

- Rotor shaft supported by tapered roller bearings maintains rotor stability for long life

- V-belt, direct or gear-motor drive

- Open-rotor design facilitates passage of air and material

- Multiple mounting arrangements

- Flanged inlet, slip-fit outlet positions

- Multiple inlet positions

- 2 HP 3/60/460-volt TEFC motor is standard

- Motor 2 HP, RPM 2,000 max


STRAIGHT-CUT IMPACT ACTION, FROM PAPER TO FINE METAL FOIL

MAINTAINS CUTTING EDGE WITHOUT IN-PLACE CYLINDRICAL GRINDING

Top Performance

The 5TOB offers proven BloApCo design with new, innovative maintenance and operating features to achieve higher performance and economy. Driven by a 2-hp electric motor, the 5TOB impact-cuts everything from paper to tough films to metal foil down to 3 mil thick. Varied knife profiles make short work of corrugated and heavy laminated trim up to 8-1⁄2" wide. A variety of wear-resistant HCHC, NEOR and carbide-edge knives can be arrayed to mate with slitting equipment and can reduce multiple ribbons of trim, depending on weight and thickness, for pneumatic conveying, baling, disposal or recycling.

Precise Operation

Cutting with one stationary bed knife and two rotating knives, the 5TOB makes two cuts per revolution at speeds from 500 to 2,000 rpm and passes 3,000 cfm of air at a static pressure loss of 1.5" wg at air velocities of 5,000 fpm. Rotor-mounted set screws make the knives individually and easily adjustable for maximum precision – and easy to remove for sharpening, with no need for “in-body” rotor grinding. Precision tapered roller bearings eliminate end play and runout problems, keeping clearances precise longer. Open rotor design allows fast, free flow of cut material through the cutter housing.

Easy Installation

Installation of a 5TOB trim cutter is quick and simple: The cutter is factory-tested, tailored to your application, and shipped completely assembled and ready to run.
