ID: 2452
Open
Description

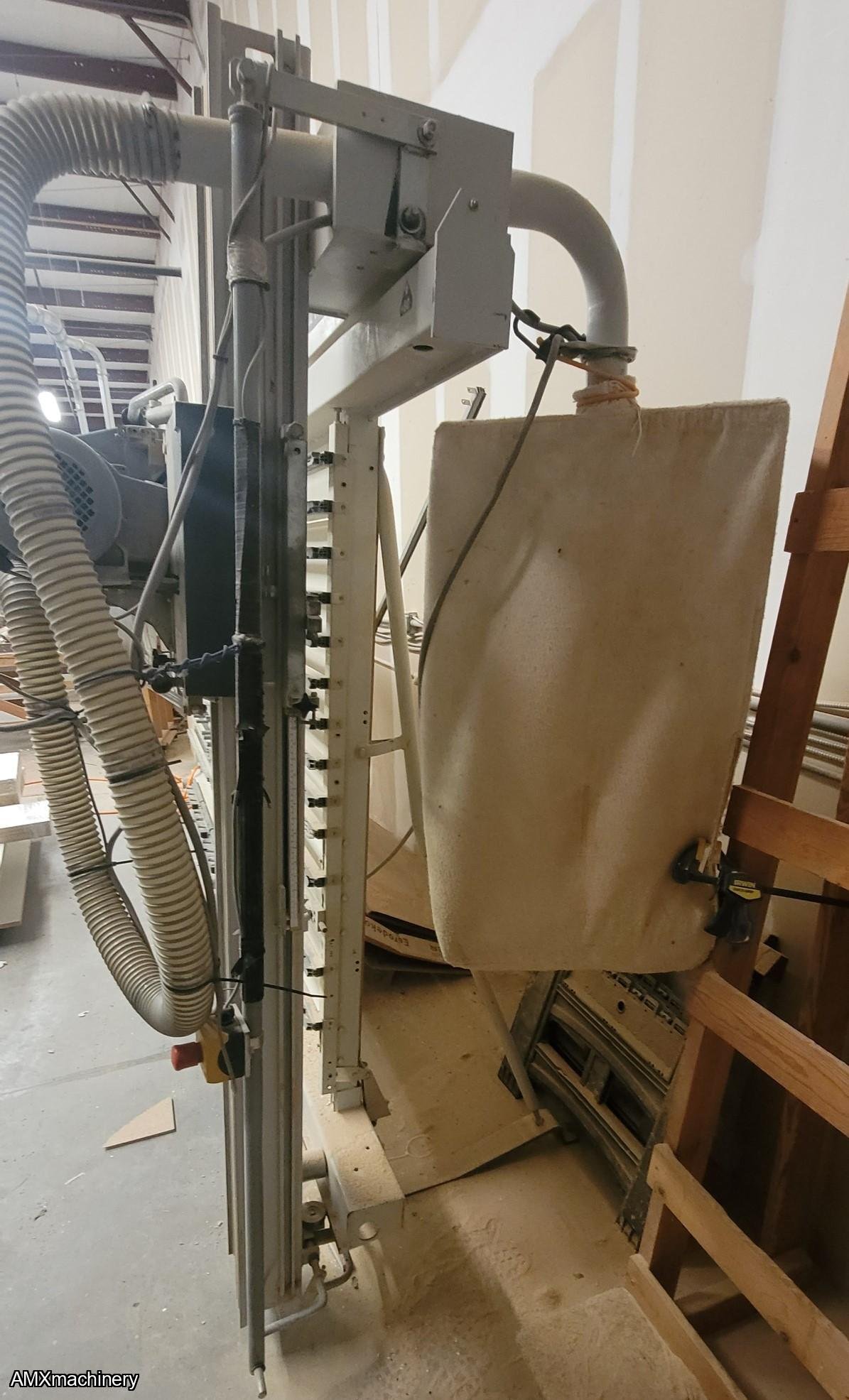

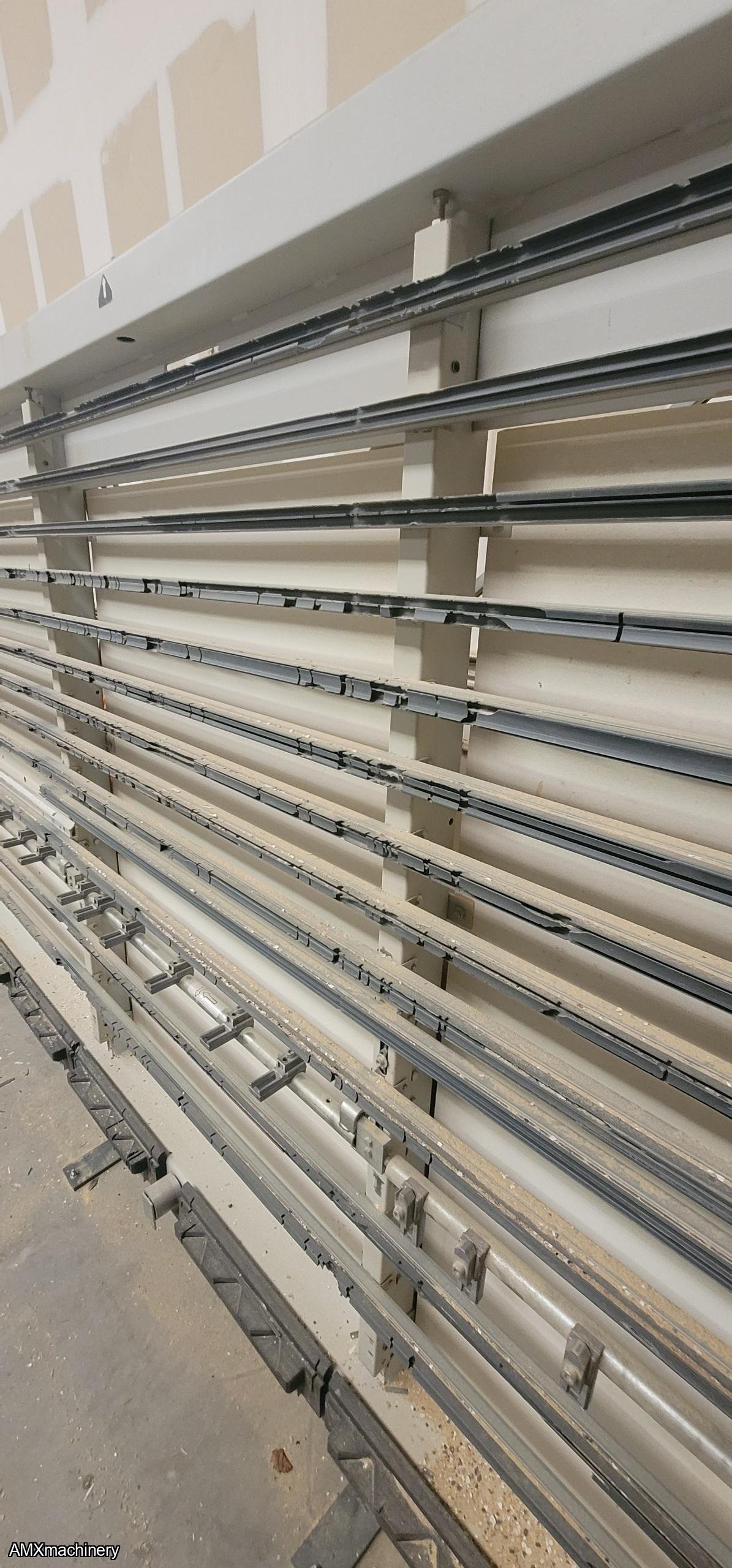

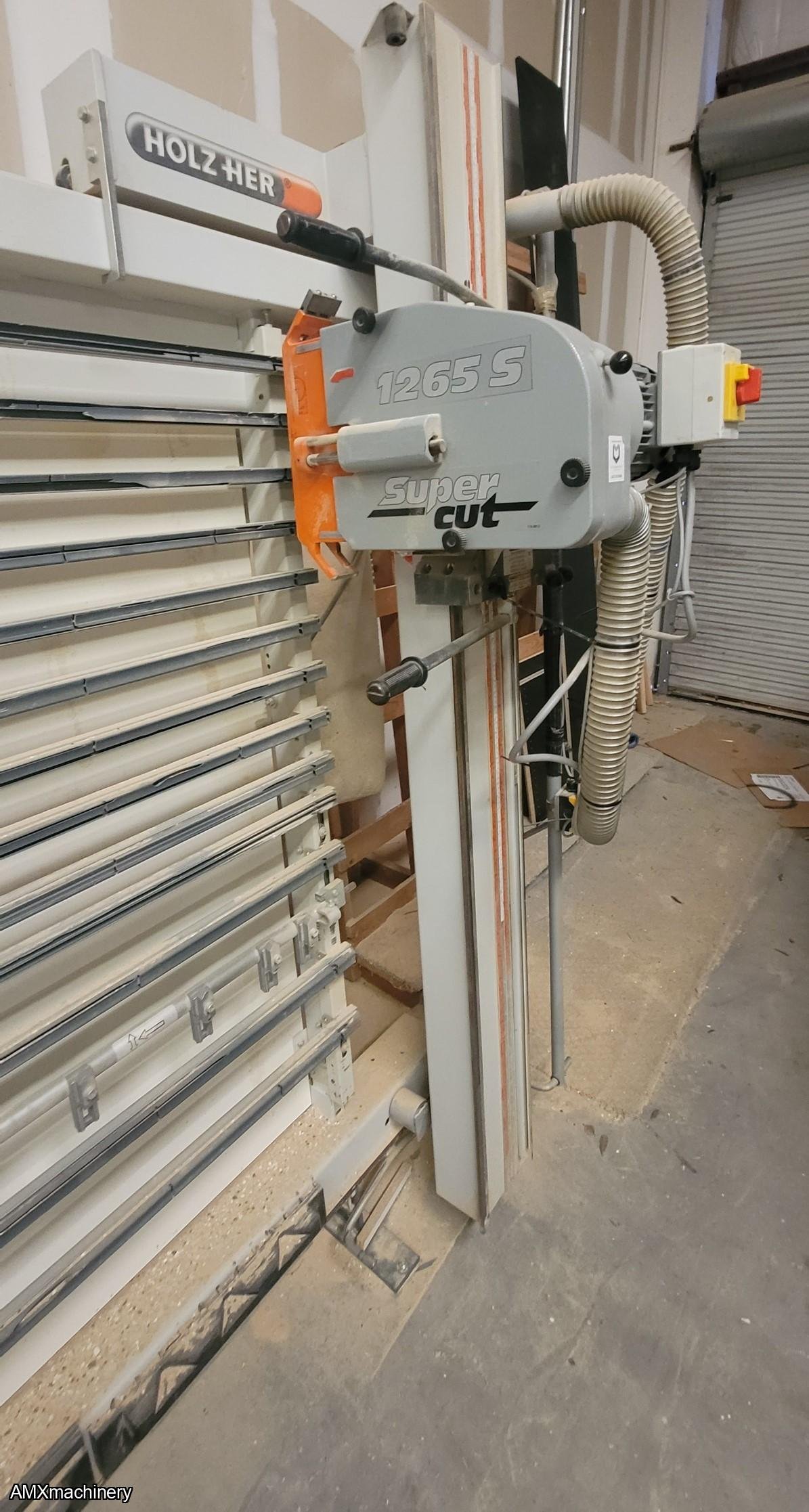

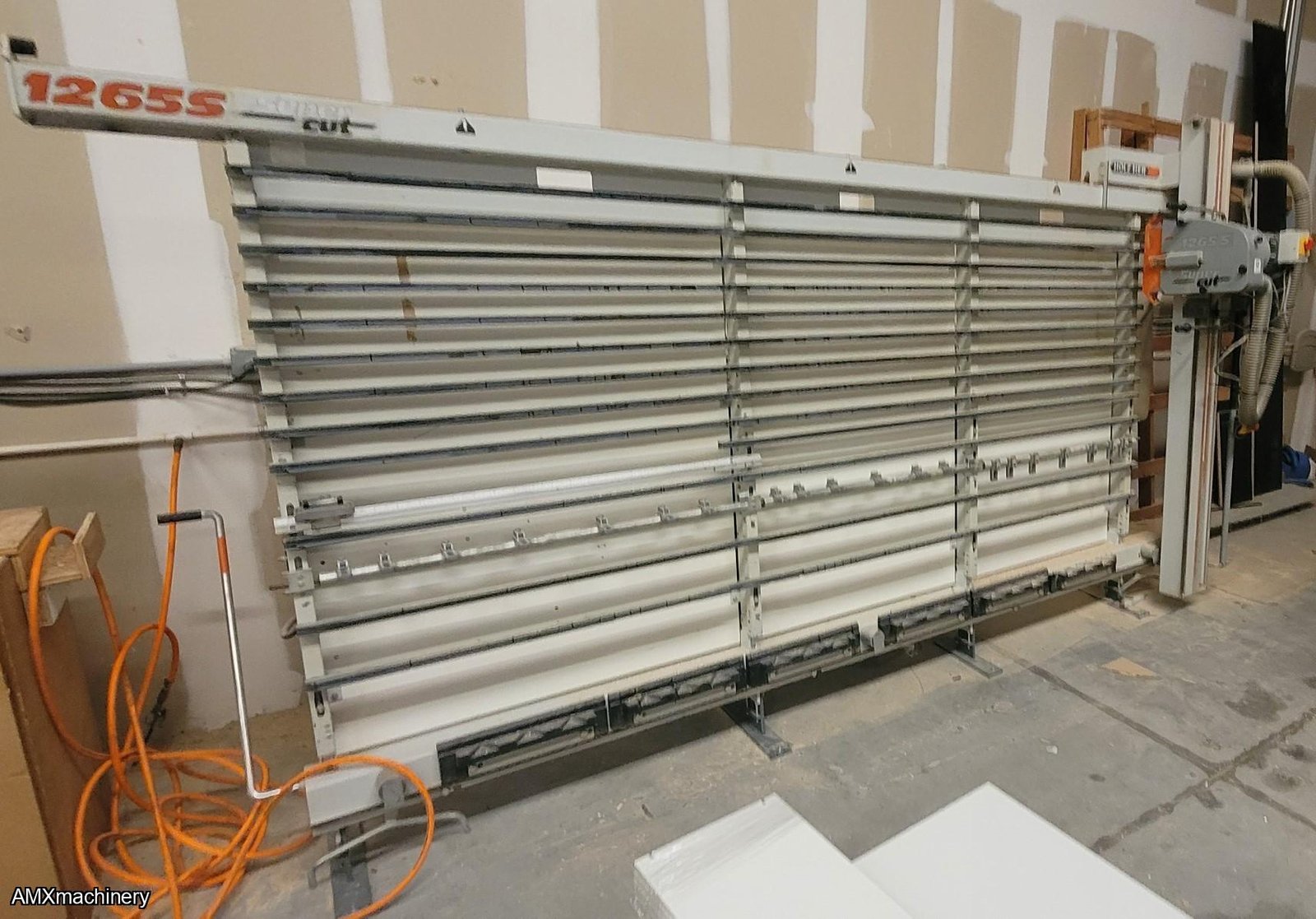

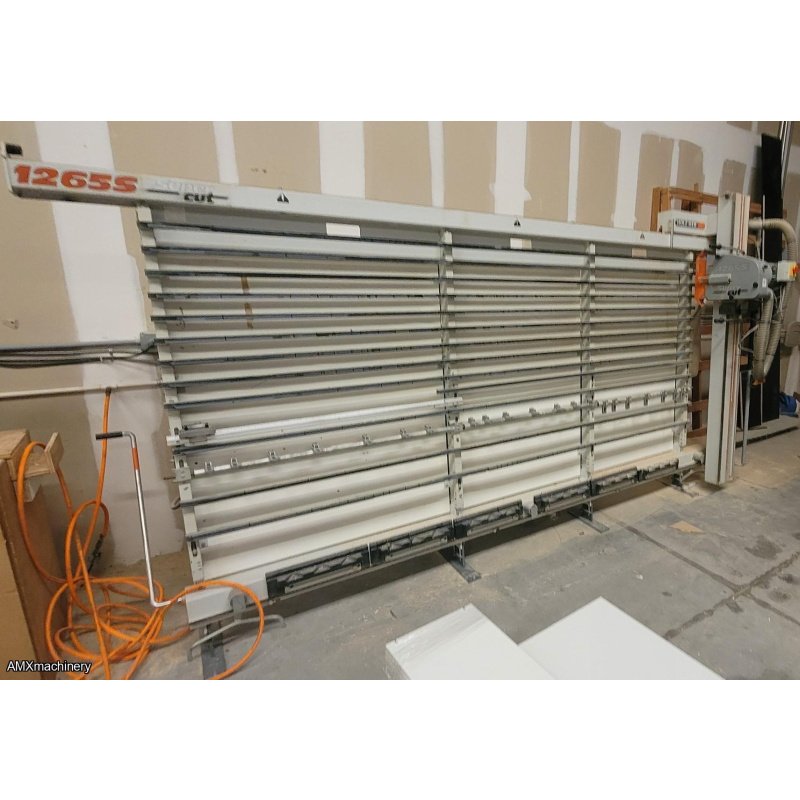

PART: 12505-E - VERTICAL PANEL SAW - HOLZHER 1265 SUPER CUT
USED - GOOD CONDITION
Model: 1265S
Year of Manufacture: 2008
Condition: Very Good
Electric: 230 Voltage 60 Cycle 3 Phase
Holz Her Vertical Panel Saw
Specifications:
Main motor 4 HP
Depth of cut 2” max
Scoring unit with insert knives
Saw head rotates 90 degrees for rip or cross cutting
Manual shifting back grid
Gauging bar with flip stop for midway fence with scale
Bottom roller with manual control for easy movement of panels
Integrated dust collection
Working dimensions:
Cutting dimensions - inches
Length x height 129 x 64
Edging height 62 1/2
Cutting depth 2 max
Cutting depth depends on material type
Saw blade dia. 8.6’’ = 220 mm
Saw blade speed - RPM at 60Hz = 6540
Extraction Air requirement - CFM = 825
Air speed - FPM = 3936
Unit connection 65mm = 2 1/2’’
Static under pressure - Pa = 900
Machine dimensions Floor space required - in/mm
Length 163 / 4150
Depth 56 / 1420
Height 89 / 2260
Shipping Footprint:
163 length x 56" width x 89" height
Weight: 2500 lbs
