Description
DOBLADORA DE METAL

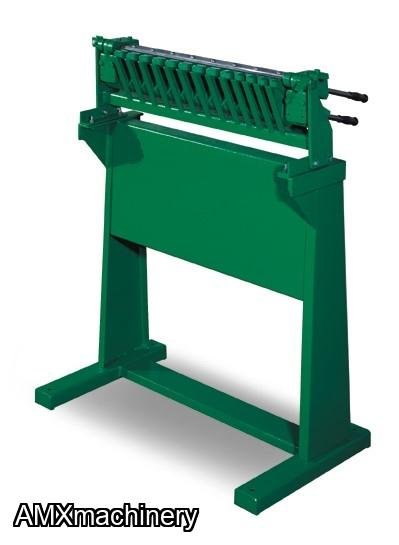

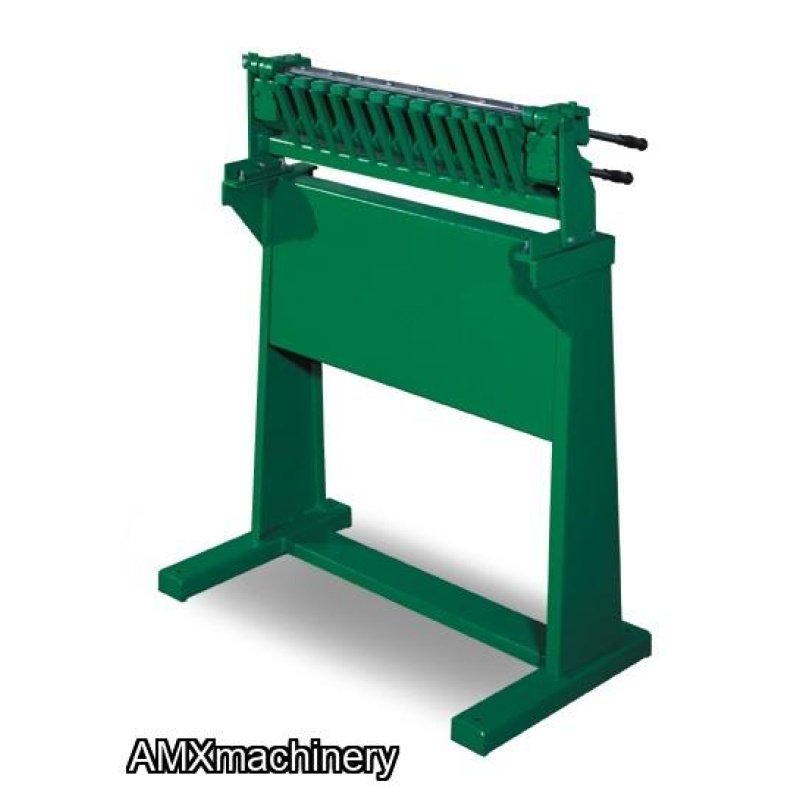

Cleat Benders are manually operated tools that forma uniform drive cleat edges on rectangular ductwork in seconds without set-up or adjustments. The upper handle forms the cleat and the lower handle opens the tool for easy removal of the material. Heavy cast iron and fabricated steel construction provides long life and trouble-free operation.
|
Model |
18 |
24 |
30 |
|
Maximum capacity, mild steel |
20 ga / 1,0 mm |
20 ga / 1,0 mm |
20 ga / 1,0 mm |
|
Maximum Bending |
18 in / 457 mm |
24 in / 610 mm |
30 in / 762 mm |
|
Depth of drive cleat |
1/2 in / 12.7 mm |
1/2 in / 12.7 mm |
1/2 in / 12.7 mm |
|
Dimensions, handles removed LxWxH |
25-1/2 x 12-1/2 x 12-1/2 in 648 x 317.5 x 317.5 mm |
32 x 10 x 11 in 813 x 254 x 280 mm |
38 x 10 x 11-1/2 in 965 x 254 x 292 mm |
|
Shipping Weight |
63 lbs / 29 kg |
95 lbs / 44 kg |
150 lbs / 59 kg |
